A method of combined texture features and morphology for building seismic damage information extractionbased on GF remote sensing images
-
摘要: 为提高震害信息获取时效性，对基于我国国产高分遥感影像的建筑物震害信息提取方法进行深入研究，本文以2017年5月11日新疆塔县MS5.5地震为例，利用该地震前后极灾区高分遥感影像，利用结合纹理和形态学特征的方法进行了建筑物震害信息提取，通过变化检测分析获取了极灾区建筑物震害信息，并与基于像元级和基于目标级的信息提取结果进行对比，采用震后无人机影像目视解译结果对本文结果进行了精度验证。结果表明：通过缩减研究区范围可大力提高数据提取精度和速度；运用灰度共生矩阵、二值化、数学形态学等方法对影像进行迭代运算，能较好地提取高分遥感影像中的建筑物信息；通过对地震前后建筑物提取结果进行变化检测分析，能够有效地提取完全倒塌的建筑物，信息提取总体精度为90.45%，比基于像元级和基于目标级信息提取结果的精度分别提高了5.78%和5.23%，可为震后快速确定人员压埋点、部署救援力量提供决策依据，提高地震应急救援的时效性。Abstract: It is of great significance to study the methods in the extraction of building seismic damage information based on high-resolution remote sensing images in China, which can improve the timeliness of seismic damage information acquisition. Taking an earthquake with MS5.5 occurred near Taxkorgan Tajik Autonomous County, Kashi Prefecture, Xinjiang Uygur Autonomous Region, China, on May 11, 2017, as an example, based on high-resolution remote sensing images before and after the earthquake, building information was extracted by the method of combined texture features and morphology. Building damage information in extremely disaster areas was extracted through change detection and analysis, and then compared with the results extracted by pixel-based and object-based methods. Finally, the accuracy was verified by visual interpretation results of unmanned aerial vehicle images after the earthquake. The results show that the accuracy and speed of data extraction can be greatly improved by reducing the scope of the studied area. Using gray level co-occurrence matrix, binarization, mathematical morphology and other methods we can extract building information from GF remote sensing images more effectively. Through the change detection and analysis of building extraction results before and after the earthquake, completely collapsed buildings can be effec-tively extracted. The overall accuracy of information extraction is 90.45%, which is 5.78% and 5.23% higher than that of pixel-based and object-based information extraction, respectively. The completely collapsed buildings information can provide decision-making basis for rapid determination of people buried places and deployment of rescue forces after earthquakes, and improve the timeliness of earthquake emergency rescue.
-
Keywords:
- texture features /
- morphology /
- GF satellite remote sensing /
- building /
- seismic damage
-
-
![]()

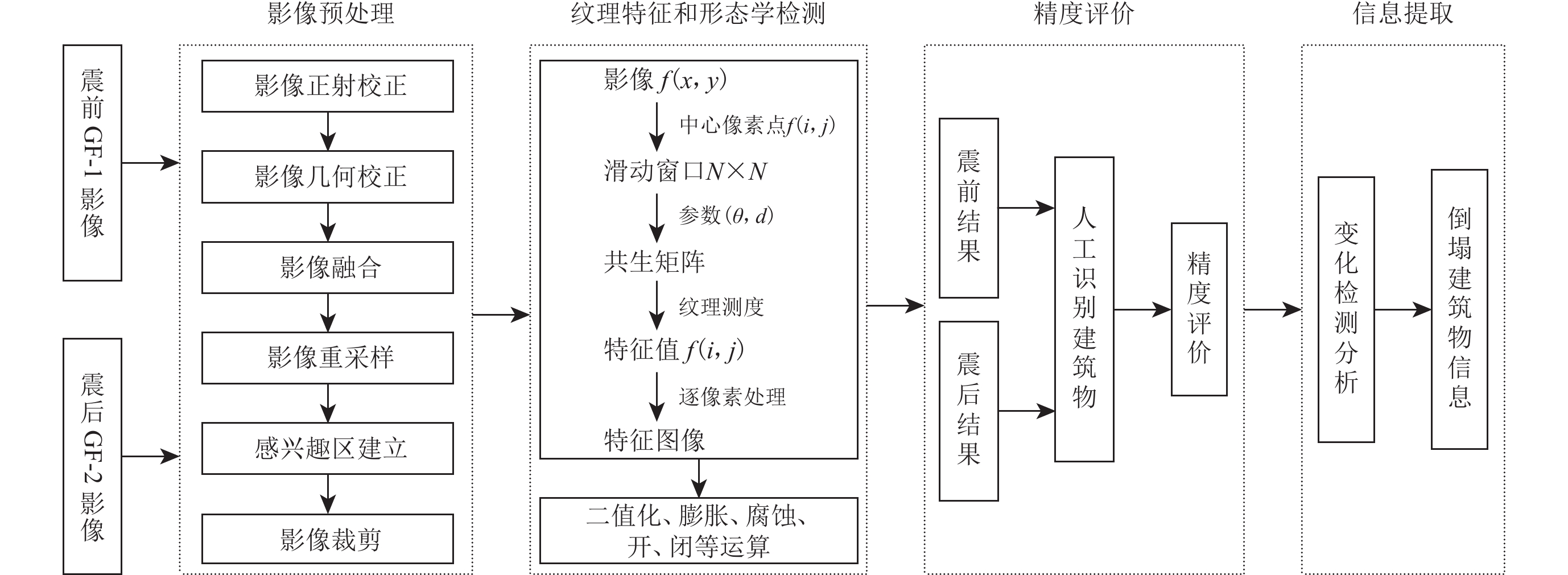

图 1 建筑物震害信息提取的技术路线图
Figure 1. Technology route line of seismic damage information extraction
![]()
图 2 研究区预处理后的GF卫星遥感影像图
（a） 预处理后的震前GF-1影像图；（b） 预处理后的震后GF-2影像图；（c） 裁剪震后的GF-2居住区影像图
Figure 2. GF remote sensing images preprocessed in the studied area
（a） GF-1 image before earthquake after pre-processing；（b） GF-2 image after earthquake after pre-processing；（c） Clip image of GF-2 residential area after the earthquake
![]()
图 3 建筑物纹理特征图像
（a） 均值；（b） 方差；（c） 同质性；（d） 对比度；（e） 非相似性；（f） 熵；（g） 角二阶矩；（h） 相关性
Figure 3. Texture feature of buildings
（a） Mean；（b） Variance；（c） Homogeneity；（d） Contrast；（e） Dissimilarity；（f） Entropy； （g） Angular second moment；（h） Correlation
![]()

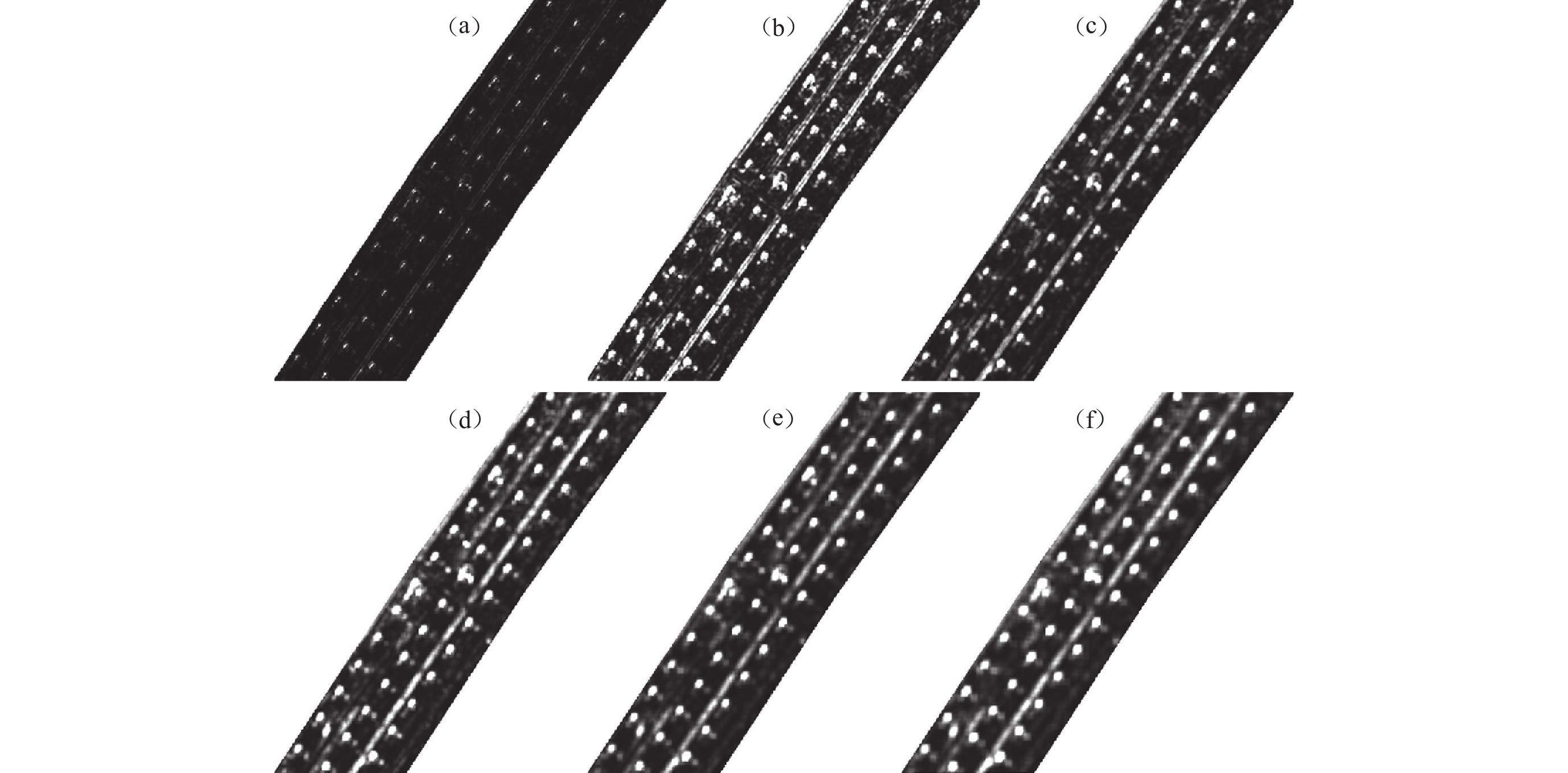

图 4 不同尺度的对比度特征图
Figure 4. Contrast feature images with different scales
（a） 3×3；（b） 5×5；（c） 7×7；（d） 9×9；（e） 11×11；（f） 13×13；
![]()

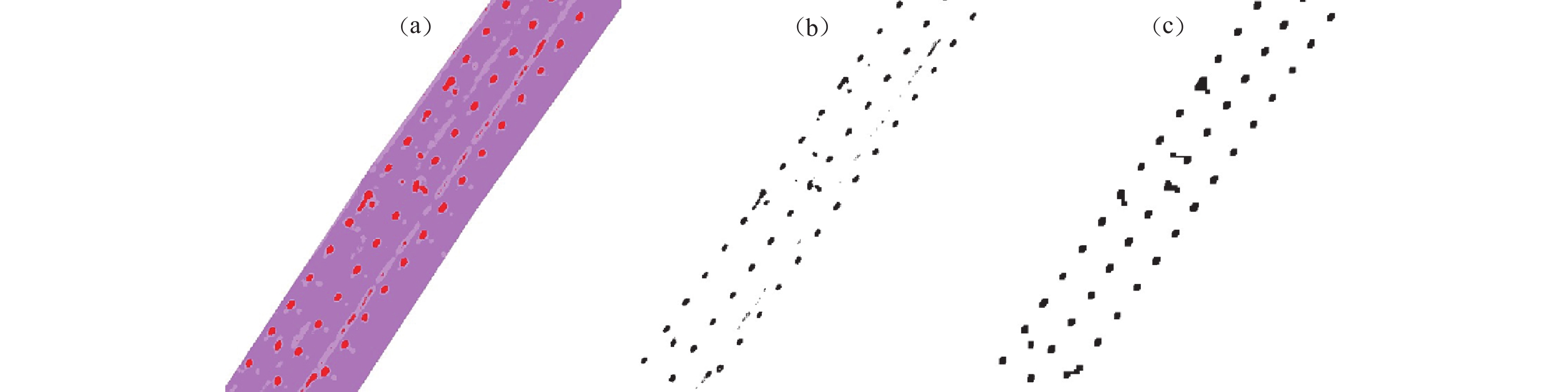

图 5 通过密度分割 （a）、二值化 （b）、形态学运算 （c） 的建筑物信息提取
Figure 5. Building information extraction by density segmentation （a），binarization （b） and morphological operation （c）
![]()
图 6 塔县地震前（a）、后（b）的建筑物提取结果图
Figure 6. Extraction results of buildings before （a） and after （b） the Taxkorgan Tajik earthquake
![]()

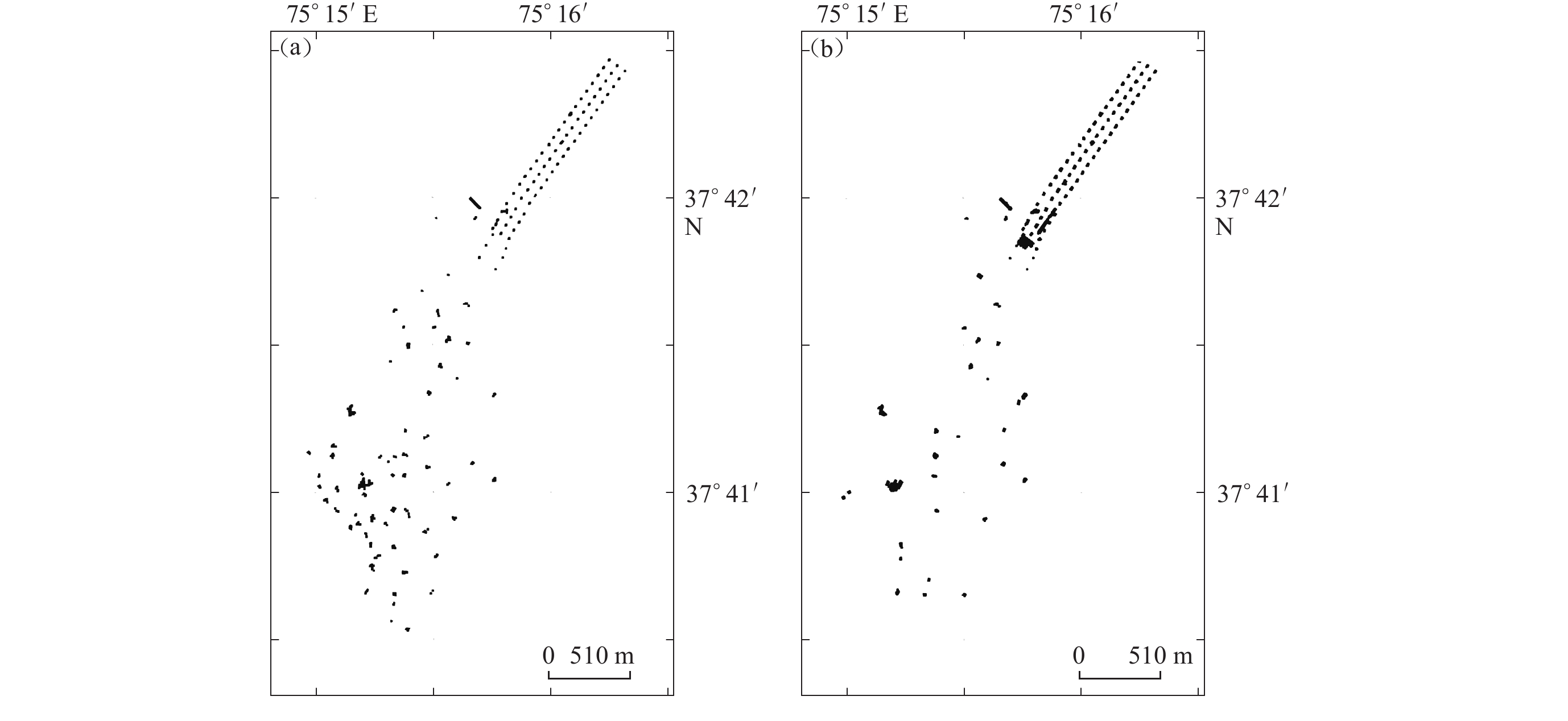

图 7 塔县地震后极灾区建筑物震害提取结果图
（a） 未倒塌建筑物分布图；（b） 倒塌建筑物分布图；（c） 新建未倒塌建筑物分布图
Figure 7. Damage extraction map of buildings in the extreme disaster areas of Taxkorgan Tajik earthquake
（a） Distribution of uncollapsed buildings；（b） Distribution of collapsed buildings； （c） Distribution of newly built uncollapsed buildings
![]()
图 8 支持向量机法（a）和面向对象方法（b）的建筑物震害信息提取结果图
Figure 8. Extraction result of seismic damage information of buildings by Support Vector Machine method （a） and by object-oriented methord （b）
![]()
图 9 无人机影像区域提取结果对比图
（a） 无人机影像覆盖区域；（b） 安居富民房航拍区对比结果图；（c） 村委会附近航拍区对比结果图
Figure 9. Contrast Map of UAV Image Region
（a） UAV images coverage area；（b） Comparison of aerial photography area of the rural housing project in Xinjiang；（c） Comparison of aerial photography area near village committee
表 1 不同提取方法分类精度的比较
Table 1 Comparison of classification accuracy with different extraction method
分类方法 总体精度 Kappa系数 本文方法 90.45% 0.87 支持向量机法 84.67% 0.78 面向对象分析法 85.22% 0.79
