Conjugate earthquake and measurement of friction coefficient in crustal medium
-
摘要: 安德逊理论表明地震的共轭破裂现象可以用库仑准则解释，断层面夹角与地下岩石内摩擦系数之间存在简单的定量关系。基于本文提出的通过共轭地震计算介质内摩擦系数的方法，对国内外19个具有X形或不完整的X形（L形）共轭破裂特征的地震进行系统性分析，与震源机制、区域应力轴方向等资料进行对比，确定共轭断层面，进而确定共轭面夹角并计算岩石的内摩擦系数。研究结果进一步证实了天然地震的共轭破裂与实验室岩石破裂具有较好的一致性，给出了库仑准则与安德逊理论在大尺度下也成立的证据，表明通过共轭角确定地下介质的内摩擦系数是对地下介质特性认知的有益补充。Abstract: Anderson’s theory indicates that the conjugate rupture phenomenon of earthquake can be explained by Coulomb’s criterion, and there is a simple quantitative relationship between the angle of fault plane and the friction coefficient of underground rock. Based on the author’s method of calculating the friction coefficient of the medium through conjugate earthquakes, this paper systematically analyzes 19 domestic and foreign earthquakes with X-shaped or incomplete X-shaped （L-shaped） conjugate rupture characteristics. Analyze and compare with the source mechanism, regional stress axis direction and other data to determine the conjugate fault plane, and then determine the angle of the conjugate plane and calculate the internal friction coefficient of the rock. The research results further confirm that the conjugate fracture of natural earthquakes is in good agreement with the laboratory rock fracture, and the Coulomb criterion and Anderson theory are also valid at large scales. It is shown that the internal friction of the underground medium is determined by the conjugate angle. The coefficient is a useful supplement to the cognition of the characteristics of the underground medium.
-
-
![]()
图 14 1998年6月4日，11月13日冰岛亨吉德山MW6.4和奥佛斯 MW6.1地震共轭破裂特征分析（修改自Parameswaran et al，2020）
Figure 14. Analysis of conjugate rupture characteristics of the Hengill MW6.4 and Ölfus MW6.1 earthquakes in Iceland on June 4，1998 and November 13，1998 （modified from Parameswaran et al，2020）
![]()

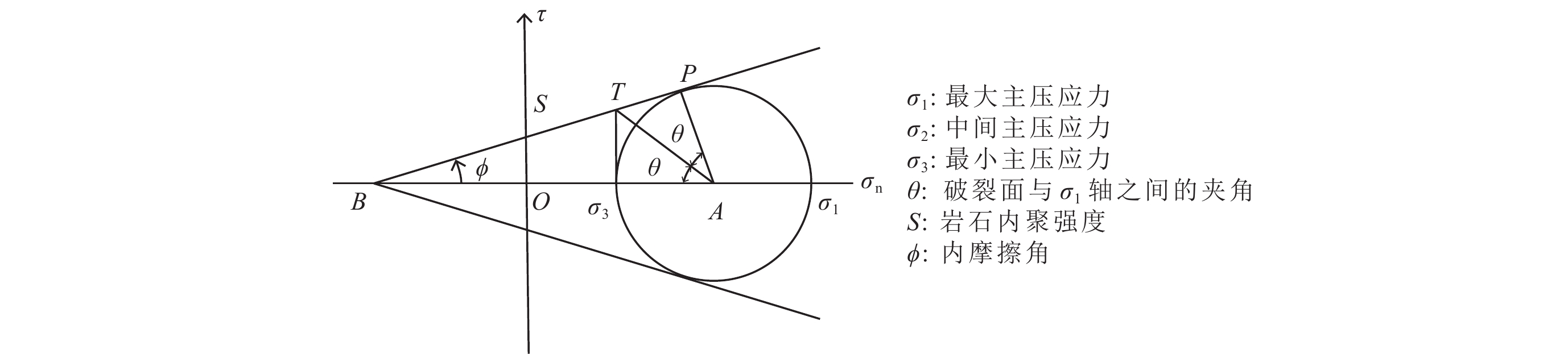

图 1 用莫尔圆表示库仑破裂准则
横坐标表示作用于岩石中某一平面的正应力σn；纵坐标表示作用于某一平面上的剪切应力τ
Figure 1. Coulomb’s failure criterion expressed by Mohr circle
The abscissa represents the normal stress σn acting on a certain plane in the rock，the ordinate represents the shear stress τ acting on a certain plane
![]()
图 2 共轭角2θ与主应力的关系
Figure 2. Relationship between conjugate angle 2θ and principle stress
![]()
图 4 1974年5月11日云南永善—大关MS7.1地震共轭破裂特征分析（修改自刘万琴，陈运泰，1979）
Figure 4. Analysis of conjugate rupture characteristics of MS7.1 earthquake in Yongshan-Daguan，Yunnan on May 11，1974 （modified from Liu，Chen，1979）
![]()
图 5 1995年10月24日云南武定MS6.5地震共轭破裂特征分析（修改自刁桂苓等，1999）
Figure 5. Analysis of conjugate rupture characteristics of the MS6.5 earthquake in Wuding，Yunnan，China on October 24，1995 （modified from Diao et al，1999）
![]()
![]()
图 7 2001年4月10日，4月12日，6月8日云南施甸MS5.2，MS5.9和MS5.3地震共轭破裂特征分析（修改自刘翔，赵小艳，2002）
Figure 7. Analysis of conjugate rupture characteristics of the MS5.2，MS5.9 and MS5.3 earthquakes in Shidian，Yunnan on April 10，2001，April 12，2001 and June 8，2001 （modified from Liu，Zhao，2002）
![]()
图 8 1970年11月7日，12月13日川滇盐源—宁蒗MS6.7和MS6.4地震共轭破裂特征分析（修改自程式，任昭明，1990）
Figure 8. Analysis of conjugate rupture characteristics of the MS6.7 and MS6.4 earthquakes in Yanyuan-Ninglang on Novermber 7，1970 and December 13， 1970 （modified from Cheng，Ren，1990）
![]()

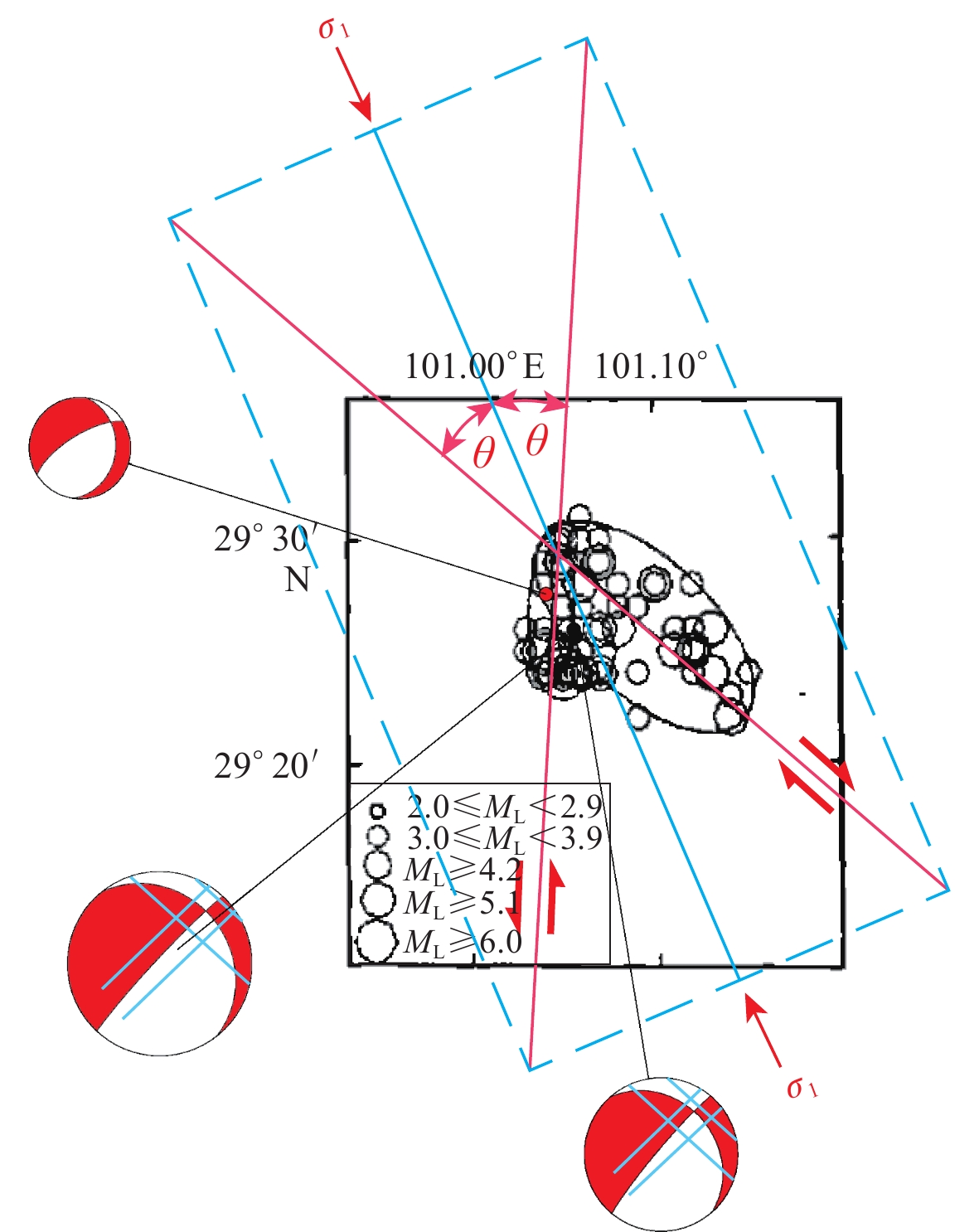

图 9 2001年2月14日，2月23日四川雅江MS5.0和MS6.0地震共轭破裂特征分析（修改自魏亚玲等，2001）
Figure 9. Analysis of conjugate rupture characteristics of the MS5.0 and MS6.0 earthquakes in Yajiang，Sichuan on February 14，2001 and February 23，2001 （modified from Wei et al，2001）
![]()
图 10 2005年11月26日江西九江—瑞昌MS5.7地震共轭破裂特征分析（修改自吕坚等，2008）
Figure 10. Analysis of conjugate rupture characteristics of the MS5.7 earthquake in Jiujiang−Ruichang，Jiangxi，China on November 26，2005 （modified from Lü et al，2008）
![]()
![]()
图 12 2018年6月17日日本大阪MW5.5地震共轭破裂特征分析（修改自Li et al，2019）
Figure 12. Analysis of conjugate rupture characte-ristics of the MW5.5 earthquake in Osaka，Japan on June 17， 2018 （modified from Li et al，2019）
![]()
图 13 2014年5月5日泰国清莱府湄佬县MW6.2地震共轭破裂特征分析（修改自Pananont et al，2017）。右下角三角图表明大部分震源机制为走滑类型
Figure 13. Analysis of conjugate rupture characteristics of the MW6.2 earthquake in Mae Lao，Chiang Rai，Thailand on May 5，2014 （modified from Pananont et al，2017）. The triangle diagram in thelower right corner shows that most of the focal mechanisms are strike-slip type
![]()
图 15 2016年8月24日意大利中部MW6.0地震共轭破裂特征分析（修改自Porreca et al，2018）
Figure 15. Analysis of conjugate rupture characteristics of the MW6.0 earthquake in central Italy on August 24，2016 （modified from Porreca et al，2018）
![]()
图 16 1979年3月15日美国加州Homestead Valley ML4.9，ML5.2，ML4.5，ML4.9地震序列共轭破裂特征分析 （修改自Stein，Lisowski，1983）
Figure 16. Analysis of conjugate rupture characteristics of ML4.9，ML5.2，ML4.5，ML4.9 earthquake sequence in Homestead Valley，California，USA on March 15，1979 （modified from Stein，Lisowski，1983）
![]()
图 17 1984年11月23日美国加州Round Valley ML5.8地震共轭破裂特征分析（修改自Priestley et al，1988）
Figure 17. Analysis of conjugate rupture characteristics of ML5.8 earthquake in Round Valley，California，USA on November 23th，1984 （modified from Priestley et al，1988）
![]()
图 18 1987年11月17日美国阿拉斯加湾MW7.2地震序列共轭破裂特征分析（修改自Hwang，Kanamori，1992）
Figure 18. Analysis of conjugate rupture characteristics of the MW7.2 earthquake sequence in Gulf of Alaska， USA on November 17，1987 （modified from Hwang，Kanamori，1992）
![]()
图 19 1992年4月23日美国加州兰德斯MW6.1地震序列共轭破裂特征分析（修改自Hauksson et al，1993）
Figure 19. Analysis of conjugate rupture characteristics of the MW6.1 earthquake sequence in Landers， California，USA on April 23，1992 （modified from Hauksson et al，1993）
![]()
图 20 1994年9月12日美国内华达州双泉平原 MW5.8地震共轭破裂特征分析（修改自Amelung，Bell，2003）
Figure 20. Analysis of conjugate rupture characteristics of the MW5.8 earthquake in Double Spring Flat， Nevada，USA on September 12，1994 （modified from Amelung，Bell，2003）
![]()
图 21 1994年5月26日，2004年2月24日和2016年1月25日摩洛哥胡塞马 MW6.1，MW6.5和MW6.4地震序列共轭破裂特征分析（修改自 Kariche et al，2018）
Figure 21. Analysis of conjugate rupture characteristics of the MW6.1，MW6.5 and MW6.4 earthquake sequences in Al Hociema，Morocco on May 26，1994，February 24，2004，and January 25，2016 （modified from Kariche et al，2018）
-
陈金海,刘赛君. 1995. 中国东部大陆板内地震的共轭破裂特征[J]. 世界地震译丛,(4):39–45. Chen J H,Liu S J. 1995. Conjugate fracture features of continental intraplate earthquakes in eastern China[J]. Translated World Sesimology,(4):39–45 (in Chinese).
程式, 任昭明. 1990. 1976年11月7日四川省盐源6.7级地震[G]//中国震例（1976—1980）. 北京: 地震出版社: 146–164. Cheng S, Ren Z M. 1990. The Yanyuan earthquake （M＝6.7） on Nov.7, 1976 in Sichuan Province[G]//Earthquake Case in China （1976−1980）. Beijing: Seismological Press: 146–164 （in Chinese）.
刁桂苓,王绍晋,龙晓帆,于利民,李钦祖. 1995. 永善—大关7.1级地震序列震源区应力场分析[J]. 华北地震科学,13(1):28–34. Diao G L,Wang S J,Long X F,Yu L M,Li Q Z. 1995. Analysis of the stress field in source region for the Yongshan-Daguan,earthquake sequence with mainshock MS7.1[J]. North China Earthquake Sciences,13(1):28–34 (in Chinese).
刁桂苓,张四昌,王绍晋,龙晓帆,王俊国. 1999. 1995年云南武定6.5级地震震源断层的三维特征[J]. 地震学报,21(4):361–366. doi: 10.3321/j.issn:0253-3782.1999.04.004 Diao G L,Zhang S C,Wang S J,Long X F,Wang J G. 1999. Three-dimensional characteristics of focal fault of 1995 MS6.5 Wuding earthquake occurring in Yunnan Province[J]. Acta Seismologica Sinica,21(4):361–366 (in Chinese).
高建华,郑栋,李超. 2006. 2005年11月26日九江—瑞昌5.7级地震浅析[J]. 气象与减灾研究,29(1):56–60. doi: 10.3969/j.issn.1007-9033.2006.01.011 Gao J H,Zheng D,Li C. 2006. Jiujiang-Ruichang earthquake with 5.7 on Nov. 26,2005[J]. Meteorology and Disaster Reduction Research,29(1):56–60 (in Chinese).
郭婷婷,徐锡伟,邢会林,于贵华. 2015. 共轭断层系统的非线性有限元模拟与震群模型讨论[J]. 地震地质,37(2):598–612. doi: 10.3969/j.issn.0253-4967.2015.02.021 Guo T T,Xu X W,Xing H L,Yu G H. 2015. Nonlinear finite-element simulation of conjugate faults system and associated earthquake swarm[J]. Seismology and Geology,37(2):598–612 (in Chinese).
焦远碧,申裕,彭克银,李文喜. 1996. 1995年10月24日云南武定6.5级地震序列类型和震后趋势早期判断[J]. 高原地震,8(2):10–17. Jiao Y B,Shen Y,Peng K Y,Li W X. 1996. Distinguish of the earthquake sequence type and post-seismic tendency in early stage for Wuding 6.5 earthquake[J]. Plateau Earthquake Research,8(2):10–17 (in Chinese).
刘万琴,陈运泰. 1979. 由瑞雷波方向性函数研究1974年5月11日云南省昭通地震的震源过程[J]. 地震学报,1(1):25–38. Liu W Q,Chen Y T. 1979. A study of the focal process of the Zhaotong earthquake (M=7.1),Yunnan Province of May 11,1974 from the directivity function of Rayleigh waves[J]. Acta Seismologica Sinica,1(1):25–38 (in Chinese).
刘翔, 赵小艳. 2002. 2001年4月10日、12日和6月8日云南省施甸5.2, 5.9和5.3级地震[G]//中国震例（2000—2002）. 北京: 地震出版社: 250–279. Liu X, Zhao X Y. 2002. The Shidian earthquakes （M＝5.2, 5.9, 5.3） on Apr. 10, Apr. 12, Jun. 8, 2001 in Yunnan Province[G]//Earthquake Case in China （2000−2002）. Beijing: Seismological Press: 250–279（in Chinese）.
刘正荣,雷素华,胡素华. 1977. 1974年5月11日云南省永善—大关地震[J]. 地球物理学报,20(2):110–114. Liu Z R,Lei S H,Hu S H. 1977. The Yongshan-Daguan earthquake (M=7.1) on May 11,1974[J]. Acta Geophysica Sinica,20(2):110–114 (in Chinese).
龙思胜. 2004. 2001年四川雅江6.0级地震序列的破裂特征及发震构造[J]. 中国地震,20(1):1–11. doi: 10.3969/j.issn.1001-4683.2004.01.001 Long S S. 2004. Fracture characters and statutory of the Yajiang earthquake sequence with MS6.0 in the Sichuan region in 2001[J]. Earthquake Research in China,20(1):1–11 (in Chinese).
龙晓帆. 2000. 1991年7月1日、22日云南省施甸5.0, 5.2级地震[G]//中国震例（1989—1991）. 北京: 地震出版社: 453. Long X F. 2000. The Shidian earthquakes （M＝5.0, 5.2） on Jul. 1, Jul. 22, 1991 in Yunnan Province[G]//Earthquake Case in China （1989−1991）. Beijing: Seismological Press: 453 （in Chinese）.
卢守安. 1990. 1983年11月7日山东省菏泽5.9级地震[G]//中国震例（1981—1985）. 北京: 地震出版社: 133–156. Lu S A. 1990. The Heze earthquake （M＝5.9） on Nov. 7, 1983 in Shandong Province[G]//Earthquake Case in China （1981−1985）. Beijing: Seismological Press: 133–156 （in Chinese）.
吕坚,郑勇,倪四道,高建华. 2008. 2005年11月26日九江—瑞昌MS5.7,MS4.8地震的震源机制解与发震构造研究[J]. 地球物理学报,51(1):158–164. doi: 10.3321/j.issn:0001-5733.2008.01.020 Lü J,Zheng Y,Ni S D,Gao J H. 2008. Focal mechanisms and seismogenic structures of the MS5.7 and MS4.8 Jiujiang-Ruichang earthquakes of Nov. 26,2005[J]. Chinese Journal of Geophysics,51(1):158–164 (in Chinese).
马念杰,马骥,赵志强,郭晓菲,师皓宇,乔建永. 2019. X型共轭剪切破裂-地震产生的力学机理及其演化规律[J]. 煤炭学报,44(6):1647–1653. doi: 10.13225/j.cnki.jccs.2019.0125 Ma N J,Ma J,Zhao Z Q,Guo X F,Shi H Y,Qiao J Y. 2019. Mechanical mechanism and evolution of X-shaped conjugate shear fractures-seism[J]. Journal of China Coal Society,44(6):1647–1653 (in Chinese).
满开言,张四昌. 1993. 华北东部地区的共轭地震破裂与地质构造[J]. 西北地震学报,15(4):61–68. Man K Y,Zhang S C. 1993. Conjugate earthquake fracture and tectonics in the eastern part of North China[J]. Northwestern Seismological Journal,15(4):61–68 (in Chinese).
乔建永,马念杰,马骥,赵志强,郭晓菲,师皓宇. 2019. 基于动力系统结构稳定性的共轭剪切破裂-地震复合模型[J]. 煤炭学报,44(6):1637–1646. doi: 10.13225/j.cnki.jccs.2019.0124 Qiao J Y,Ma N J,Ma J,Zhao Z Q,Guo X F,Shi H Y. 2019. Conjugate shear fracture-seismic composite model based on structural stability of dynamic system[J]. Journal of China Coal Society,44(6):1637–1646 (in Chinese).
宋文,黄毓珍. 1997. 武定6.5级地震序列震源机制[J]. 地震研究,20(3):265–272. Song W,Huang Y Z. 1997. The focal mechanism of the Wuding earthquake sequence[J]. Journal of Seismological Research,20(3):265–272 (in Chinese).
王学滨,赵扬锋,代树红,潘一山. 2004. 地震块体模型的共轭剪切破裂带数值模拟[J]. 防灾减灾工程学报,24(2):119–125. doi: 10.13409/j.cnki.jdpme.2004.02.001 Wang X B,Zhao Y F,Dai S H,Pan Y S. 2004. Numerical simulation of conjugate shear fracture bands for seismic block model[J]. Journal of Disaster Prevention and Mitigation Engineering,24(2):119–125 (in Chinese).
魏亚玲,陈天长,陈银. 2001. 雅江地震的震源机制解和应力场[J]. 四川地震,(4):17–20. doi: 10.3969/j.issn.1001-8115.2001.04.003 Wei Y L,Chen T C,Chen Y. 2001. Focal mechanism of Yajiang-Kangding earthquake stress field[J]. Earthquake Research in Sichuan,(4):17–20 (in Chinese).
谢新生. 2003. 盐源—宁蒗地震共轭破裂及极限主应力随地壳深度变化[J]. 地质力学学报,9(2):161–170. doi: 10.3969/j.issn.1006-6616.2003.02.009 Xie X S. 2003. Variation of conjugate ruptures and limiting principal stresses with the crustal depths in the Yanyuan-Ninglang earthquake[J]. Journal of Geomechanics,9(2):161–170 (in Chinese).
谢智,刘尧兴,胡卫建,谢健健,马俊林,赵晖. 2002. 河南及邻区地震的震源机制[J]. 西北地震学报,24(3):283–286. Xie Z,Liu Y X,Hu W J,Xie J J,Ma J L,Zhao H. 2002. The focal mechanism of earthquake in Henan and its adjacent region[J]. Northwestern Seismological Journal,24(3):283–286 (in Chinese).
游凤林,苏金蓉,蔡一川. 2001. 雅江地震序列时空分布特征[J]. 四川地震,(4):21–26. You F L,Su J R,Cai Y C. 2001. Time-space distribution characteristic of Yajiang-Kangding earthquake sequence[J]. Earthquake Research in Sichuan,(4):21–26 (in Chinese).
张四昌. 1985. 华北地区的地震分布图象与共轭孕震构造[J]. 华北地震科学,3(2):9–18. Zhang S C. 1985. Seismic pattern and conjugate earthquake preparation structure in North China[J]. North China Earthquake Sciences,3(2):9–18 (in Chinese).
张四昌. 1991. 中国大陆共轭地震构造研究[J]. 中国地震,7(2):71–78. Zhang S C. 1991. Studies of conjugate seismotectonics of the continental earthquakes in China[J]. Earthquake Research in China,7(2):71–78 (in Chinese).
张四昌,王绍晋,刁桂苓,龙晓帆,马桂华. 1994. 1974年永善-大关地震序列的破裂特征[J]. 地球物理学报,37(增刊2):170–176. Zhang S C,Wang S J,Diao G L,Long X F,Ma G H. 1994. The rupture characteristics of 1974 Yongshan-Daguan earthquake sequence[J]. Acta Geophysica Sinica,37(S2):170–176 (in Chinese).
张四昌,刁桂苓. 1995. 华北地区的共轭地震构造带[J]. 华北地震科学,13(4):1–8. Zhang S C,Diao G L. 1995. Conjugate seismotectonic zone in North China area[J]. North China Earthquake Sciences,13(4):1–8 (in Chinese).
Amelung F,Bell J W. 2003. Interferometric synthetic aperture radar observations of the 1994 Double Spring Flat,Nevada,earthquake (M5.9):Main shock accompanied by triggered slip on a conjugate fault[J]. J Geophys Res:Solid Earth,108(B9):2433.
Anderson E M. 1905. The dynamics of faulting[J]. Trans Edinburgh Geol Soc,8(3):387–402. doi: 10.1144/transed.8.3.387
Anderson E M. 1951. The Dynamics of Faulting and Dyke Formation with Applications to Britain[M]. Edinburgh: Oliver and Boyd: 1–183.
Hauksson E,Jones L M,Hutton K,Phillips D E. 1993. The 1992 Landers earthquake sequence:Seismological observations[J]. J Geophys Res:Solid Earth,98(B11):19835–19858. doi: 10.1029/93JB02384
Hwang L J,Kanamori H. 1992. Rupture processes of the 1987-1988 Gulf of Alaska earthquake sequence[J]. J Geophys Res: Solid Earth,97(B13):19881–19908. doi: 10.1029/92JB01817
Ichinose G A,Smith K D,Anderson J G. 1998. Moment tensor solutions of the 1994 to 1996 Double Spring Flat,Nevada,earthquake sequence and implications for local tectonic models[J]. Bull Seismol Soc Am,88(6):1363–1378.
Jaeger J C, Cook N G W. 1979. Fundamentals of Rock Mechanics[M]. 3rd ed. London: Chapman and Hall: 593.
Kariche J,Meghraoui M,Timoulali Y,Cetin E,Toussaint R. 2018. The Al Hoceima earthquake sequence of 1994,2004 and 2016:Stress transfer and poroelasticity in the Rif and Alboran Sea region[J]. Geophys J Int,212(1):42–53. doi: 10.1093/gji/ggx385
Kelly P G,Sanderson D J,Peacock D C P. 1998. Linkage and evolution of conjugate strike-slip fault zones in limestones of Somerset and Northumbria[J]. J Struct Geol,20(11):1477–1493. doi: 10.1016/S0191-8141(98)00048-0
Li Y Q,Wang D,Xu S H,Fang L H,Cheng Y F,Luo G,Yan B,Bogdan E,Mori J. 2019. Thrust and conjugate strike-slip faults in the 17 June 2018 MJMA6.1 (MW5.5) Osaka,Japan,earthquake sequence[J]. Seismol Res Lett,90(6):2132–2141. doi: 10.1785/0220190122
Noisagool S,Boonchaisuk S,Pornsopin P,Siripunvaraporn W. 2016. The regional moment tensor of the 5 May 2014 Chiang Rai earthquake (MW6.5),northern Thailand, with its aftershocks and its implication to the stress and the instability of the Phayao fault zone[J]. J. Asian Earth Sci.,127:231–245.
Pananont P,Herman M W,Pornsopin P,Furlong K P,Habangkaem S,Waldhauser F,Wongwai W,Limpisawad S,Warnitchai P,Kosuwan S,Wechbunthung B. 2017. Seismotectonics of the 2014 Chiang Rai,Thailand,earthquake sequence[J]. J Geophys Res:Solid Earth,122(8):6367–6388. doi: 10.1002/2017JB014085
Parameswaran R M,Thorbjarnardóttir B S,Stefánsson R,Bjarnason I T. 2020. Seismicity on conjugate faults in Ölfus,South Iceland:Case study of the 1998 Hjalli-Ölfus earthquake[J]. J Geophys Res:Solid Earth,125(8):e2019JB019203.
Porreca M,Minelli G,Ercoli M,Brobia A,Mancinelli P,Cruciani F,Giorgetti C,Carboni F,Mirabella F,Cavinato G,Cannata A,Pauselli C,Barchi M R. 2018. Seismic reflection profiles and subsurface geology of the area interested by the 2016-2017 earthquake sequence (central Italy)[J]. Tectonics,37(4):1116–1137. doi: 10.1002/2017TC004915
Priestley K F,Smith K D,Cockerham R S. 1988. The 1984 Round Valley,California earthquake sequence[J]. Geophys J Int,95(2):215–235. doi: 10.1111/j.1365-246X.1988.tb00464.x
Somerville P G,McLaren J P,LeFevre L V,Burger R W,Helmberger D V. 1987. Comparison of source scaling relations of eastern and western North American earthquakes[J]. Bull Seismol Soc Am,77(2):322–346. doi: 10.1785/BSSA0770020322
Stein R S,Lisowski M. 1983. The 1979 Homestead Valley earthquake sequence,California:Control of aftershocks and postseismic deformation[J]. J Geophys Res:Solid Earth,88(B8):6477–6490. doi: 10.1029/JB088iB08p06477
-
