Inversion of post-seismic GPS data for effective viscosity of Wenchuan region
-
摘要: 利用2009—2011年汶川震区GPS水平速度场数据， 综合考虑汶川震后的余滑模型、 黏弹性松弛模型及用于描述地壳长期运动的弹性块体模型， 采用格网搜索法反演了汶川震区中下地壳的有效黏滞系数. 地壳介质黏滞系数不同是造成震后断层两侧地壳水平运动差异的主要因素. 研究发现， 龙门山断裂带两侧中下地壳介质的黏滞系数差别很大. 龙门山断裂以西川西块体中下地壳(16—40 km)的有效黏滞系数约为7×1019 Pa·s， 而龙门山断裂以西、 岷江断裂以东的岷江地块中下地壳(16—40 km)的有效黏滞系数约为1020 Pa·s， 比川西地块大. 龙门山断裂以东的四川盆地中下地壳(16—40 km)的有效黏滞系数约为7×1022 Pa·s， 比岷江地块和川西地块均大， 呈现极强的刚性运动特点. 此外， 由于同震破裂滑脱面的存在， 震中附近的余滑效应比较显著.Abstract: Combing with the after-slip model, the viscoelastic relaxation model and the elastic block model, this paper estimates the effective viscosity of middle to lower crust by fitting the observed GPS velocity in Wenchuan region in the period of 2009—2011. The results indicate that the effective viscosity of middle to lower crust in Wenchuan region varies largely for the two sides of Longmenshan fault zone, which impacts the kinematics’patterns of the crust in the study region. The effective viscosity of lower crust is about 7×1019 Pa·s to the western side of Longmenshan fault except the Minjiang block which contains a slightly stronger middle to lower crust; the effective viscosity is about 7×1022 Pa·s to the eastern side of Longmenshan fault, showing a strong rigid motion characteristics. In addition, the after-slip effect is notable because of the existing coseismic rupture surface.
-
Keywords:
- effective viscosity /
- GPS /
- post-seismic deformation /
- Wenchuan earthquake
-
-
![]()
图 1 观测的GPS水平形变场(黑色箭头)与模拟的GPS形变场(红色箭头)． 红色和黑色圆圈表示相应的误差椭圆
Figure 1. The measured (black arrows) and modeled (red arrows) GPS velocities where black and red circles denote corresponding errors
![]()

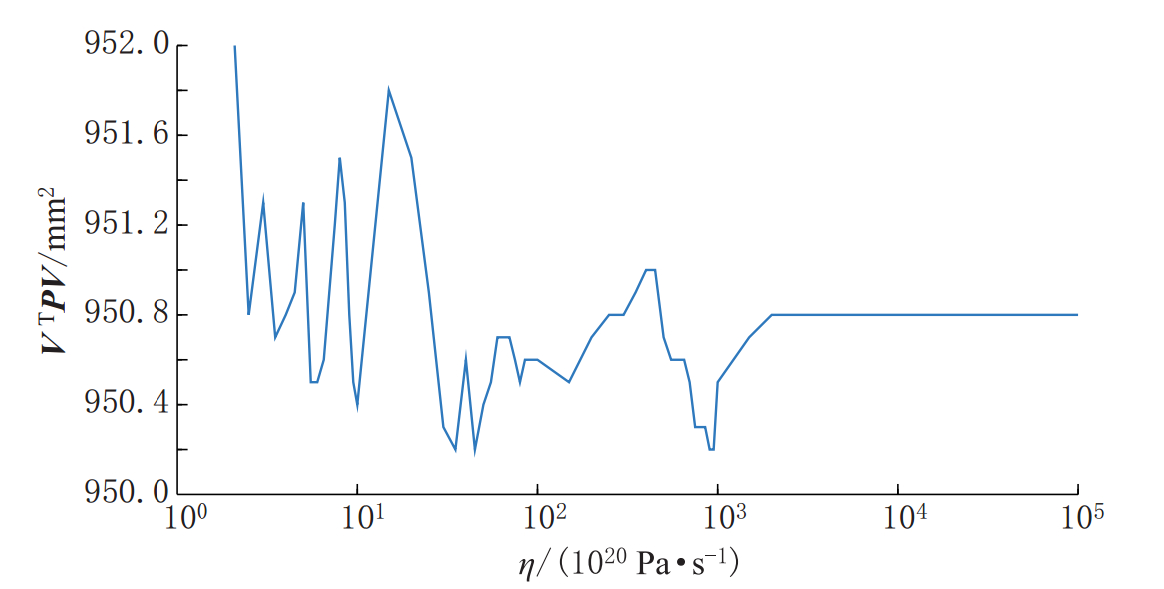

图 2 残差加权平方和VTPV (Δ)与中下地壳黏滞系数η之间关系
Figure 2. Residuals VTPV (Δ) versus effective viscosity η of middle to lower crust
![]()

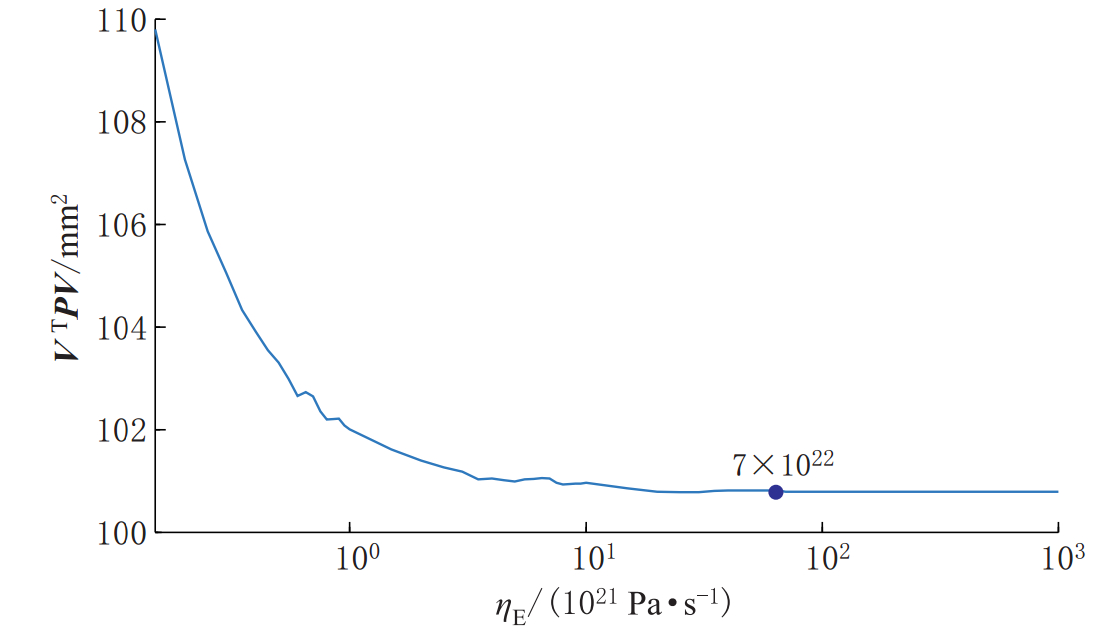

图 3 龙门山断裂以东四川盆地残差加权平方和VTPV (ΔE)与中下地壳黏滞系数ηE之间关系
Figure 3. Residuals VTPV (ΔE) versus effective viscosity ηE for Sichuan basin
![]()

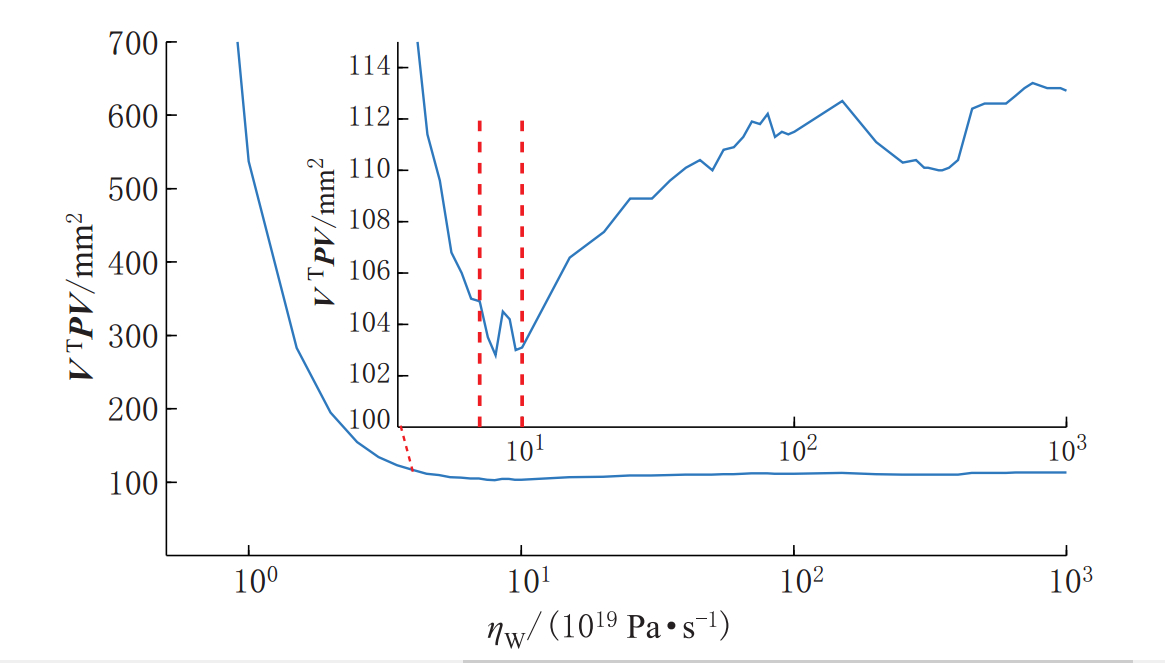

图 4 门山断裂以西川西块体残差加权平方和VTPV (ΔW)与中下地壳黏滞系数ηW之间关系
Figure 4. Residuals VTPV (ΔW) versus effective viscosity ηW to the west of Longmenshan fault
表 1 汶川地震的地壳介质模型
Table 1 Parameters of crustal material model for Wenchuan earthquake
深度 /km vP /(km·s-1 ) vS /(km·s-1) ρ /(103 kg·m-3) η /(1019 Pa·s) 0—16 5.89 3.45 2.81 0 16—40 6.35 3.75 2.90 7
下载: 导出CSV
表 2 汶川地震震后龙门山断裂的余滑参数
Table 2 After-slip parameters of Longmenshan fault after Wenchuan earthquake
龙门山 断裂 α /° δ /° ΔVN /(mm·a-1) ΔVE /(mm·a-1) ΔVV /(mm·a-1) Us /(mm·a-1) Ud /(mm·a-1) Uo /(mm·a-1) 西南段 229 75 -4.72 13.51 105 7.10 102.80 36.34 东北段 229 65 -1.16 8.61 35 5.74 35.04 16.25
下载: 导出CSV
表 3 龙门山断裂以东与观测GPS速度场最佳拟合结果
Table 3 The best-fitting-observed results of GPS velocity inversion in eastern side of Longmenshan fault
单位： mm·a-1 台站 VplaE VplaN VrelE VrelN VssE VssN VmodE VmodN VobsE rvelE VobsN rvelN H009 6.384 -1.968 0 0 -0.006 0.01 6.378 -1.958 3.03 -3.36 8.36 3.12 H011 6.373 -1.964 0 -0.001 0.002 0.006 6.375 -1.959 8.25 7.17 14.47 5.01 H012 6.363 -1.956 0 0 0.03 0.122 6.393 -1.834 11.38 -2.12 10.78 3.93 H043 6.351 -1.941 0 0 1.022 1.309 7.373 -0.632 7.1 -2.31 11.67 4.09 H048 6.344 -1.933 0 0 0.979 1.289 7.323 -0.644 6.74 1.6 8.41 3.15 H058 6.335 -1.925 0 0 4.417 5.929 10.752 4.004 3.51 -3.38 8.87 3.15 H060 6.328 -1.91 0 0 13.085 14.584 19.413 12.674 2.21 -4.2 14.85 4.92 H081 6.301 -1.907 0 0 0.628 0.655 6.929 -1.252 6.94 2.57 8.63 3.09 H072 6.314 -1.897 -0.001 0 3.839 3.924 10.152 2.027 5.49 -4.45 6.51 2.46 JB24 6.336 -1.968 0 0 0.091 0.164 6.427 -1.804 -0.86 -3.64 6.64 2.49 F375 6.355 -1.98 0 0 0.022 0.045 6.377 -1.935 -7.89 -2.52 6.19 2.39 F378 6.372 -1.988 0 0 0.006 0.006 6.378 -1.982 4.54 1.02 7.14 2.71 H009 6.384 -1.968 0 0 -0.006 0.01 6.378 -1.958 3.03 -3.36 8.36 3.12 注： rvelN和rvelE分别表示观测GPS速度北向和东向残差.
下载: 导出CSV
表 4 龙门山断裂以西与观测GPS速度场最佳拟合结果
Table 4 The best-fitting observed results of GPS velocity inversion to the western side of Longmenshan fault
单位： mm·a-1 台站 VplaE VplaN VrelE VrelN VssE VssN VmodE VmodN VobsE rvelE VobsN rvelN H001 10.553 2.377 0.05 0.029 -0.007 0.008 10.595 2.413 5.65 1.8 6.8 2.65 H003 9.971 -0.45 0.146 0.37 -0.039 0.039 10.078 -0.04 5.88 -1.62 5.39 2.18 H005 11.185 0.23 0.193 0.28 -0.031 0.031 11.347 0.54 8.12 -4.44 5.36 2.16 H006 10.94 -0.5 0.202 0.45 -0.045 0.045 11.097 -0.003 9.18 2 5.86 2.34 H007 12.244 1.55 0.034 -0.02 -0.009 0.01 12.269 1.535 7.78 -2.02 5.75 2.26 H010 14.509 -0.637 -0.21 -0.31 -0.047 0.048 14.252 -0.9 16.83 7.81 13.66 4.65 H019 10.933 -2.575 0.02 0.82 -0.097 0.097 10.856 -1.657 8.18 -3.96 5.59 2.21 H021 12 -1.581 0.229 0.98 -0.094 0.094 12.134 -0.507 8.64 0.48 6.25 2.43 JB33 12.457 -3.777 -0.23 1.23 -0.188 0.195 12.039 -2.352 16.95 -6.61 6.89 2.72 H024 12.588 -2.986 -0.11 1.4 -0.182 0.185 12.296 -1.4 14.35 -4.87 7.5 2.97 H022 13.248 -2.0488 0.237 1.8 -0.184 0.184 13.301 -0.064 13.15 3.81 5.51 2.22 H025 13.494 -4.843 -0.35 1.26 -0.257 0.279 12.887 -3.304 15.82 -6.74 5.81 2.31 H031 13.974 -7.037 -0.29 0.58 -0.2 0.236 13.484 -6.221 15.11 -3.59 3.59 1.47 H030 14.489 -4.425 -0.248 2 -0.381 0.418 13.86 -2.007 14.5 -8.25 5.87 2.27 H034 15.162 -4.146 0.025 2.8 -0.519 0.575 14.668 -0.771 18.54 -1.69 5.29 2.1 H040 17.032 -9.115 0.14 0.07 -0.148 0.213 17.024 -8.832 14.3 -3.82 4.03 1.59 JB34 17.167 -7.492 0.18 0.34 -0.287 0.377 17.06 -6.775 19 -4.2 8.1 3.36 H045 17.779 -4.428 -1.6 1 -1.274 1.274 14.905 -2.154 33.18 -5.68 5.83 2.31 H046 16.72 -6.638 0 0.84 -0.385 0.482 16.335 -5.317 29.96 13.08 6.05 2.49 H047 17.888 -7.985 0.362 0.18 -0.246 0.336 18.003 -7.469 24.47 -4.19 6.53 2.67 H049 19 -4.24 -0.1 -4.5 4.075 4.841 22.968 -3.899 15.32 -4.02 9.8 3.66 H050 19.17 -5.524 0.8 -1.5 -0.948 0.954 19.023 -6.07 9.3 -9.66 7.96 3.03 H384 20.777 -6.157 -0.18 -0.34 0.346 1.295 20.942 -5.203 8.93 -9.41 17.04 5.76 注：rvelN和rvelE分别表示观测GPS速度与模拟GPS速度北向和东向残差．
下载: 导出CSV
-
陈运泰. 2008. 汶川特大地震的震级和断层长度[J]. 科技导报, 26 (10): 26-27 Chen Y T. 2008. On the magnitude and the fault length of the great Wenchuan earthquake[J]. Science and Technology Review, 26 (10): 26-27 (in Chinese)
董运洪, 罗三明, 韩月萍, 陈长云. 2012. 汶川MS8.0地震北川附近同震和震后垂直位移特征[J]. 地震学报, 34 (5): 611-620 Dong Y H, Luo S M, Han Y P, Chen C Y. 2012. Co- and post-seismic vertical displacements of Wenchuan MS8.0 earthquake near Beichuan[J]. Acta Seismologica Sinica, 34 (5): 611-620 (in Chinese)
郝明, 王庆良, 占伟, 李煜航. 2011. 中国东西部地区震后形变有效松弛时间研究[J]. 大地测量与地球动力学, 31 (6): 49-53 Hao M, Wang Q L, Zhan W, Li Y H. 2011. On effective relaxation time of post-seismic deformation in eastern and western China[J]. Journal of Geodesy and Geodynamics, 31 (6): 49-53 (in Chinese)
蒋锋云, 王庆良, 朱良玉. 2011. 汶川地震震前龙门山以西地壳垂直隆升机理分析[J]. 大地测量与地球动力学, 31 (5): 26-29 Jiang F Y, Wang Q L, Zhu L Y. 2011. Mechanism analysis of vertical uplift of crust in the west of Longmenshan before Wenchuan MS8.0 earthquake[J]. Journal of Geodesy and Geodynamics, 31 (5): 26-29 (in Chinese)
石耀霖, 曹建玲. 2008. 中国大陆岩石圈等效粘滞系数的计算和讨论[J]. 地学前缘, 15 (3): 82-95 Shi Y L, Cao J L. 2008. Effective viscosity of China continental lithosphere[J]. Earth Science Frontiers, 15 (3): 82-95 (in Chinese)
孙荀英, 刘激扬, 王仁. 1994. 1976年唐山地震震时和震后变形的模拟[J]. 地球物理学报, 37 (1): 45-55 Sun X Y, Liu J Y, Wang R. 1994. Simulation of coseismic and postseismic deformation in Tangshan earthquake of 1976[J]. Chinese J Geophys, 37 (1): 45-55 (in Chinese)
谈洪波, 申重阳, 李辉, 李冀, 玄松柏, 邢乐林. 2009. 汶川大地震震后重力变化和形变的黏弹分层模拟[J]. 地震学报, 31 (5): 491-505 Tan H B, Shen C Y, Li H, Li J, Xuan S B, Xing L L. 2009. Simulation of post-seismic gravity change and deformation of the Wenchuan earthquake based on viscoelastic layered half-space model[J]. Acta Seismologica Sinica, 31 (5): 491-505 (in Chinese)
滕吉文, 张永谦, 阮小敏. 2010. 汶川8.0级大地震的孕育和发生的深层过程与动力成因探讨[J]. 国际地震动态, (6): 2 Teng J W, Zhang Y Q, Ruan X M. 2010. Deep processes and dynamic responses associated with the Wenchuan MS8.0 earthquake of 2008[J]. Recent Developments in World Seismology, (6): 2 (in Chinese)
王敏. 2009. 基于GPS同震位移场约束反演2008年5·12汶川大地震破裂空间分布[J]. 地球物理学报, 52 (10): 2519- 2526 Wang M. 2009. Coseismic slip distribution of the 2008 Wenchuan great earthquake constrained using GPS coseismic displacement field[J]. Chinese J Geophys, 52 (10): 2519-2526 (in Chinese)
王椿镛, Mooney W D, 王溪莉, 吴建平, 楼海, 王飞. 2002. 川滇地区地壳上地幔三维速度结构研究[J]. 地震学报, 24 (1): 1-16 Wang C Y, Mooney W D, Wang X L, Wu J P, Lou H, Wang F. 2002. 3D velocity structure of lower crust and upper mantle in Chuan-Dian area[J]. Acta Seismologica Sinica, 24 (1): 1-16 (in Chinese)
王庆良, 巩守文. 1997. 由1990年共和7.0级地震震后垂直形变求得的地球介质有效弛豫时间和粘滞系数[J]. 地震学报, 19 (5): 480-486 Wang Q L, Gong S W. 1997. Estimating the effective viscosity from the vertical deformation in Gonghe earthquake of 1990[J]. Acta Seismologica Sinica, 19 (5): 480-486
王庆良, 崔笃信, 王文萍, 张四新, 刘锦文, 史旗. 2008. 川西地区现今垂直地壳运动研究[J]. 中国科学: D辑, 38 (5): 598-610 Wang Q L, Cui D X, Wang W P, Zhang S X, Liu J W, Shi Q. 2008. Investigating vertical crustal deformation of western Sichuan area present[J]. Science in China: Series D, 38 (5): 598-610 (in Chinese)
徐锡伟, 陈桂华, 于贵华, 孙鑫喆, 谭锡斌, 陈立春, 孙建宝, 陈于高, 陈文山, 张淑萍, 李康. 2010. 5·12汶川地震地表破裂基本参数的再论证及其构造内涵分析[J]. 地球物理学报, 53 (10): 2321-2336 Xu X W, Chen G H, Yu G H, Sun X Z, Tan X B, Chen L C, Sun J B, Chen Y G, Chen W S, Zhang S P, Li K. 2010. Reevaluation of surface rupture parameters of the 5·12 Wenchuan earthquake and its tectonic implication for Tibetan uplift[J]. Chinese J Geophys, 53 (10): 2321-2336 (in Chinese)
许才军, 刘洋, 温阳茂. 2009. 利用GPS资料反演汶川MW7.9级地震滑动分布[J]. 测绘学报, 38 (3): 195-201, 215 Xun C J, Liu Y, Wen Y M. 2009. MW7.9 Wenchuan earthquake slip distribution inversion from GPS measurements[J]. Acta Geodaetica et Cartographica Sinica, 38 (3): 195-201, 215 (in Chinese)
杨强, 党亚明. 2010. 利用GPS速度场估算青藏高原地壳韧性层等效粘滞系数分布的研究[J]. 测绘学报, 39 (5): 497-502 Yang Q, Dang Y M. 2010. A research about effective viscosity of Tibetan Plateau lithosphere viscoelastic ductile layer using GPS velocity fields[J]. Acta Geodaetica et Cartographica Sinica, 39 (5): 497-502 (in Chinese)
张晁军, 曹建玲, 石耀霖. 2008. 从震后形变探讨青藏高原下地壳粘滞系数[J]. 中国科学: D辑, 38 (10): 1250-1257 Zhang C J, Cao J L, Shi Y L. 2008. Exploring viscosity of lower crust from postseismic deformation[J]. Science in China: Series D, 38 (10): 1250-1257 (in Chinese)
张晁军, 石耀霖, 马丽. 2009. 昆仑山大地震震后形变反映的地壳岩石流变特性[J]. 岩土力学, 30 (9): 2552-2558 Zhang C J, Shi Y L, Ma L. 2009. Numerical simulation of crust rheological property reflected by post-seismic deformations of Kunlun large earthquake[J]. Rock and Soil Mechanics, 30 (9): 2552-2558 (in Chinese)
张培震, 闻学泽, 徐锡伟, 甘卫军, 王敏, 沈正康, 王庆良, 黄媛, 郑勇, 李小军, 张竹琪, 马胜利, 冉勇康, 刘启元, 丁志峰, 吴建平. 2009. 2008年汶川8.0级特大地震孕育和发生的多单元组合模式[J]. 科学通报, 54 (7): 944-953 Zhang P Z, Wen X Z, Xu X W, Gan W J, Wang M, Shen Z K, Wang Q L, Huang Y, Zheng Y, Li X J, Zhang Z Q, Ma S L, Ran Y K, Liu Q Y, Ding Z F, Wu J P. 2009. 2008 Wenchuan 8.0 earthquake preparation and occurrence of multi-unit combined mode[J]. Chinese Sci Bull, 54 (7): 944-953 (in Chinese)
赵珠, 范军, 郑斯华, 长谷川昭, 堀内茂木. 1997. 龙门山断裂带地壳速度结构和震源位置的精确修订[J]. 地震学报, 19 (6): 615-622 Zhao Z, Fan J, Zheng S H, Hasegawa A, Horiuchi S. 1997. Crustal structure and accurate hypocenter determination along the Longmenshan fault[J]. Acta Seismologica Sinica, 19 (6): 615-622 (in Chinese)
朱守彪, 蔡永恩. 2006. 利用GPS观测的时间序列资料反演地壳地幔粘性结构[J]. 地球物理学报, 49 (3): 771-777 Zhu S B, Cai Y E. 2006. Inversion of viscous properties of crust and mantle from the GPS temporal series measurements[J]. Chinese J Geophys, 49 (3): 771-777 (in Chinese)
Ji C, Hayes G. 2008. Preliminary result of the May 12, 2008 MW7.9 eastern Sichuan, China earthquake[EB/OL].[2008-10-12]. http://earthquake.usgs.gov/earthquakes/eqinthenews/2008/us2008ryan/finite_fault.php
Lorenzo-Martin F, Roth F, Wang R J. 2006. Inversion for rheological parameters from post-seismic surface deformation associated with the 1960 Valdivia earthquake, Chile[J]. Geophys J Int, 164 (1): 75-87
Shen Z K, Sun J B, Zhang P Z, Wan Y G, Wang M, Bürgmann R, Zeng Y H, Gan W J, Liao H, Wang Q L. 2009. Slip maxima at fault junctions and rupturing of barriers during the 2008 Wenchuan earthquake[J]. Nature Geoscience, 2 (10): 718-724.
Sun W K, Okubo S, Peter V. 1996. Global displacements caused by point dislocations in a realistic Earth model[J]. J Geophys Res, 101 (B4): 8561-8577
Wang Q, Qiao X J, Lan Q G, Jeffrey F, Yang S M, Xu C J, Yang Y L, You X Z, Tan K, Chen G. 2011. Rupture of deep faults in the 2008 Wenchuan earthquake and uplift of the Longmen Shan[J]. Nature Geoscience, 4 (9): 634-640
Wang R J, Lorenzo-Martin F, Roth F. 2006. PSGRN/PSCMP: A new code for calculating co- and post-seismic deformation, geoid and gravity changes based on the viscoelastic-gravitational dislocation theory[J]. Computers & Geosciences, 32 : 527-541
Wang Y. 2001. Heart flow pattern and lateral variations of lithosphere strength in China Mainland: Constraints on active deformation[J] . Phys Earth Planet Inter, 126 (3/4): 121-146
