Discussion on validity of structural response by Nakamura’s technique
-
摘要: 日本学者中村(Nakamura)1989年提出了一种基于同一地表测点地脉动水平分量与竖向分量傅里叶振幅谱比值来估计场地特征的方法， 即所谓的中村方法. 该方法被广泛应用于场地特征的估计， 并已取得大量的成果. 目前， 这一方法也被国内外的研究人员用来进行结构响应特征的研究. 但中村方法的合理性， 国内外尚存在较大争议. 通过对北京城区的一栋钢筋混凝土框架结构建筑的脉动观测， 采用中村方法对获取的速度记录进行了计算分析. 结果表明， 该方法能有效地得到结构的自振频率， 但是不能给出结构对振动的真实放大倍数， 因此， 在使用此方法分析结构响应方面时应谨慎， 建议采用多种方法进行比较分析.
-
关键词:
- 中村(Nakamura)方法 /
- H/V谱比 /
- 结构响应 /
- 有效性

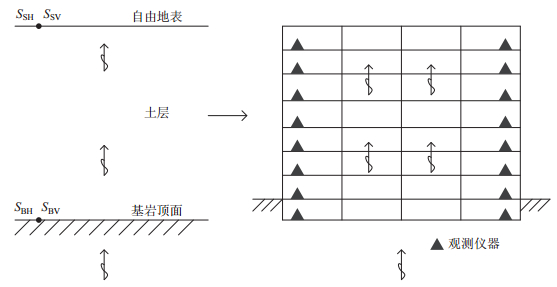

Abstract: A method called Nakamura’s technique, which uses a horizontal-to-vertical Fourier spectrum ratio (H/V ratio) of microtremor to estimate the dynamic characteristics of a site, was introduced by a Japanese scholar Nakamura in 1989. This technique is widely used, and fruitful achievements in scientific research are presented by this technique. Nowadays, this technique is also used to estimate the structural response characteristics by home and abroad researchers. However, the validity of Nakamura’s technique is still in dispute. The ambient seismic noise measurement was conducted inside a reinforced concrete (RC) building in urban area of Beijing. The calculative analysis on velocity data by Nakamura’s technique is done. The analyses indicate that the natural frequency can be obtained validly by the Nakamura’s technique, but the magnification is not accurate. We must use this technique to estimate structural response characteristics carefully, and we suggest other methods should be used simultaneously to compare.-
Keywords:
- Nakamura’s technique /
- H/V ratio /
- structural response /
- validity
-
-
![]()

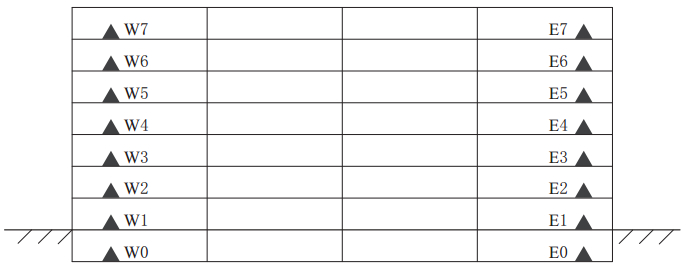

图 2 仪器(三角形)布设位置和大楼EW向结构截面图
Figure 2. Structural section (EW) of the reinforced concrete building and the location of 16 stations (denoted by triangles)
![]()

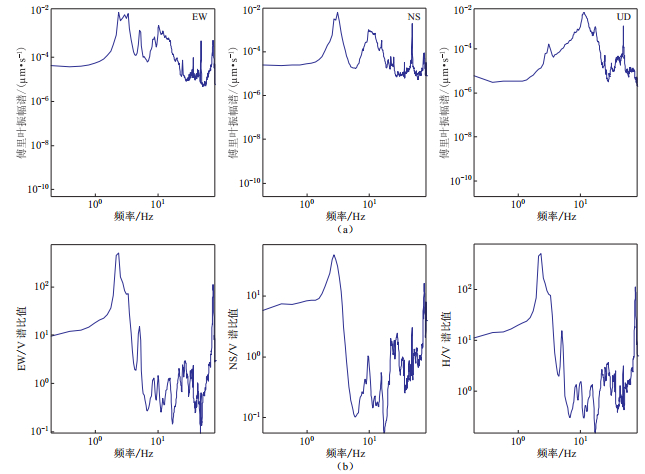

图 3 五楼西端三分量速度记录的振幅谱(a)和EW/V、 NS/V和H/V振幅谱比值(b)
Figure 3. The amplitude spectra of the three components on the fifth floor of the western end (a) and the spectral ratios of EW/V， NS/V， and H/V (b)
![]()

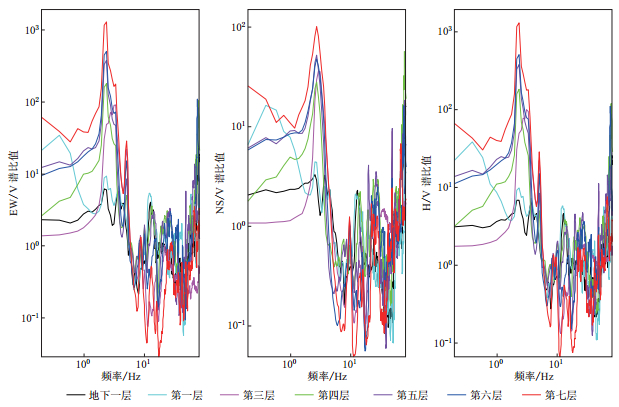

图 4 大楼西端各层记录信号的EW/V、 NS/V、 H/V振幅谱比值(第二层数据不能用)
Figure 4. The spectral ratios of EW/V， NS/V， H/V on each floor of the western end (The date for the second floor are not used)
![]()

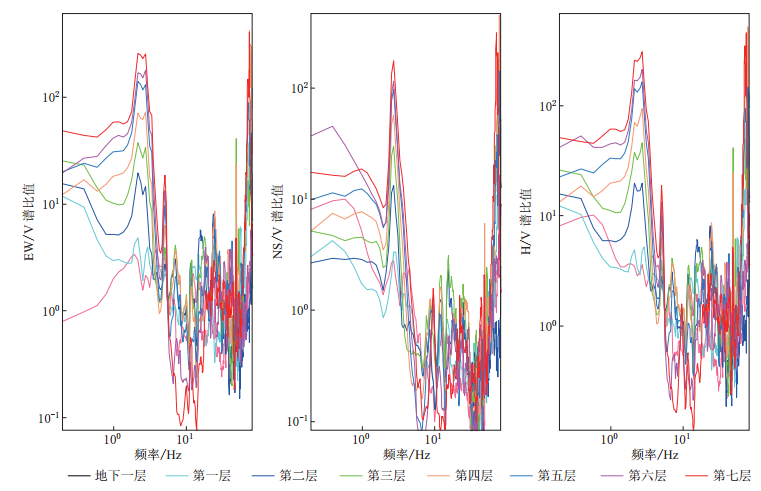

图 5 大楼东端各层记录信号的EW/V、 NS/V、 H/V振幅谱比值
Figure 5. The spectral ratios of EW/V， NS/V， H/V on each floor of the eastern end
![]()

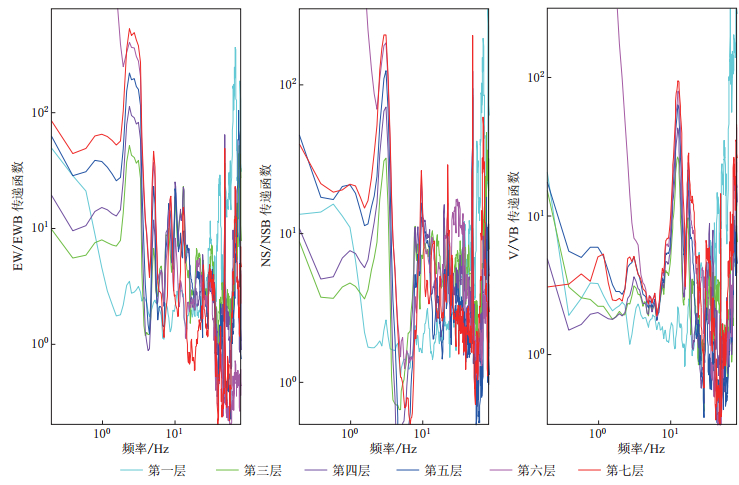

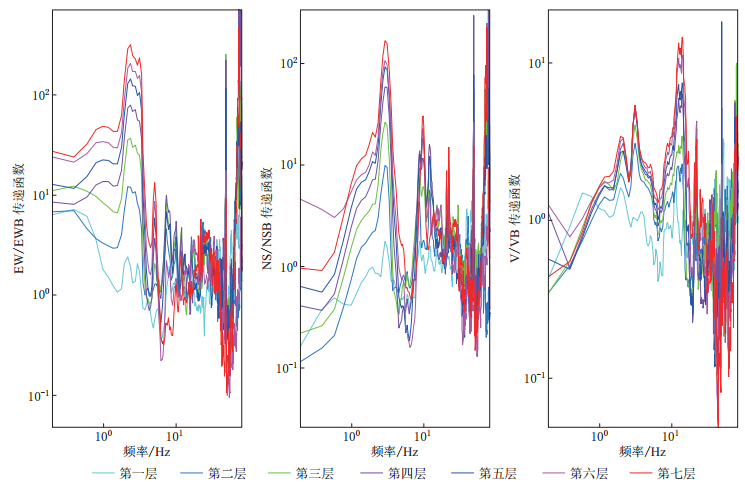

图 6 大楼西端各层记录信号的水平向和竖向传递函数(第二层数据不能用)
Figure 6. The transfer function for horizontal and vertical components of the records on each floor of the western end (The date for the second floor are not used)
-
陈棋福, 刘澜波, 王伟军, Rohrbach E. 2008. 利用地脉动探测北京城区的地震动场地响应[J]. 科学通报, 53(18): 2229-2235. Chen Q F, Liu L B, Wang W J, Rohrbach E. 2009. Site effects on earthquake ground motion based on microtremor measurements for metropolitan Beijing[J]. Chinese Science Bulletin, 54(2): 280-287.
蒋俊杰, 陈春雷. 2008. 高层建筑结构扭转效应控制参数讨论[J]. 广东土木与建筑, (9): 6-8. Jiang J J, Chen C L. 2008. Discussion on torsional parameters for high-rise building[J]. Guangdong Architecture Civil Engineering, (9): 6-8 (in Chinese).
李洪涛, 舒大强, 卢文波, 朱传云. 2010. 建筑物对爆破振动中不同频率能量成分的响应特征[J]. 振动与冲击, 29(2): 154-158. Li H T, Shu D Q, Lu W B, Zhu C Y. 2010. Building response characteristic to different frequencies of explosive[J]. Journal of Vibration and Shock, 29(2): 154-158 (in Chinese).
梁远森, 许红, 王云昌. 2005. 高层建筑结构的自振周期的计算与实测[J]. 河南科学, 23(5): 699-703. Liang Y S, Xu H, Wang Y C. 2005. Calculation & actual measurement method on natural vibration period of tall buildings[J]. Henan Science, 23(5): 699-703 (in Chinese).
卢滔, 周正华, 周雍年, 仲维照. 2006. 关于Nakamura方法有效性的讨论[J]. 地震工程与工程振动, 26(1): 43-48. Lu T, Zhou Z H, Zhou Y N, Zhong W Z. 2006. Discussion on validation of Nakamura's technique[J]. Earthquake Engineering and Engineering Vibration, 26(1): 43-48 (in Chinese).
罗桂纯, 刘澜波, 齐诚, 陈棋福, 陈永平. 2011. 基于地脉动和地铁振动的钢筋混凝土建筑结构响应分析[J].地球物理学报, 54(10): 2708-2715. Luo G C, Liu L B, Qi C, Chen Q F, Chen Y P. 2011. Structural response analysis of a reinforced concrete building based on excitation of microtremors and passing subway trains[J]. Chinese Journal of Geophysics, 54(10): 2708-2715 (in Chinese).
马升东, 周德源, 孙良宏. 2005. 平面L形高层建筑的扭转效应分析及对策[J]. 结构工程师, 21(1): 10-17. Ma S D, Zhou D Y, Sun L H. 2005. Torsional analysis and countermeasures for high-rise building with L shape plan[J]. Structural Engineers, 21(1): 10-17 (in Chinese).
沈晓锋, 季征宇, 储诒. 2002. 阶梯形高层建筑的扭转效应分析及对策[J]. 结构工程师, 18(3): 1-7. Shen X F, Ji Z Y, Chu Y. 2002. Torsional analysis for ladderlike high-rise building[J]. Structural Engineers, 18(3): 1-7 (in Chinese).
Borcherdt R D. 1970. Effects of local geology on ground motion near San Francisco Bay[J].Bull Seismol Soc Am, 60(1): 29-61.
Facke A, Stefano P, Sandra R, Lothar S. 2006. Assessing the vibrational frequencies of the Cathedral of Cologne (Germany) by means of ambient seismic noise analysis[J]. Natural Hazard, 38(1/2): 229-236.
Gallipoli M R, Mucciarelli M, Castro R R, Monachesi G, Contri P. 2004. Structure, soil-structure response and effects of damage based on observations of horizontal-vertical spectral ratios of microtremors[J]. Soil Dyn Earthq Eng, 24(6): 487-495.
Nakamura Y. 1989. A method for dynamic characteristics estimation of subsurface using microtremor on the ground surface[J]. Q Rep Railway Tech Res Inst, 30(1): 25-33.
