云南漾濞M6.4地震震区三维速度结构

杜广宝 吴庆举 张雪梅

杜广宝,吴庆举,张雪梅. 2021. 云南漾濞M6.4地震震区三维速度结构. 地震学报,43(4):397−409 doi: 10.11939/jass.20210104
引用本文: 杜广宝,吴庆举,张雪梅. 2021. 云南漾濞M6.4地震震区三维速度结构. 地震学报,43(4):397−409 doi: 10.11939/jass.20210104
Du G B,Wu Q J,Zhang X M. 2021. Three-dimensional seismic velocity structure beneath the M6.4 Yangbi,Yunnan earthquake region. Acta Seismologica Sinica,43(4):397−409 doi: 10.11939/jass.20210104
Citation: Du G B,Wu Q J,Zhang X M. 2021. Three-dimensional seismic velocity structure beneath the M6.4 Yangbi,Yunnan earthquake region. Acta Seismologica Sinica43(4):397−409 doi: 10.11939/jass.20210104

云南漾濞M6.4地震震区三维速度结构

doi: 10.11939/jass.20210104
基金项目: 国家重点研发计划(2017YFC1500304)和国家自然科学基金(41874108,41774069)共同资助
详细信息
    作者简介:

    杜广宝,E-mail:dgb@seis.ac.cn

    通讯作者:

    吴庆举,e-mail:wuqj@cea-igp.ac.cn

  • 中图分类号: P315.2

Three-dimensional seismic velocity structure beneath the M6.4 Yangbi,Yunnan earthquake region

  • 摘要: 利用2015年1月至2021年5月28日期间我国云南省漾濞县及周边地区固定台站和漾濞地震后布设的流动台站所记录到的近震资料,使用双差层析成像方法获得了该地震震区的高分辨率地壳三维速度结构和震源位置。重定位结果显示,漾濞M6.4地震序列主要沿NW−SE向展布,与维西—乔后—巍山断裂走向一致,地震主要集中在4—10 km的深度范围,呈约80°高倾角分布。结合定位结果与三维速度结构显示:漾濞M6.4地震序列的空间分布与速度结构变化具有相关性,主震位于P波、S波高低速异常交界处,这种介质物性变化的交界地带可能有利于中强地震的孕育和发生,余震主要分布在低P波速度、高S波速度和低波速比的脆性区域;沿漾濞地震序列的分布走向,主震两侧呈现完全不同的速度结构,其西北部具有明显的高P波速度、低S波速度特征,该地区高密度、强韧性的地层可能是阻挡漾濞地震的NW向破裂而呈单向破裂特征的原因。



  • 图  1  漾濞地区构造背景、台站和2010年以来M4.0以上地震分布图

    Figure  1.  Tectonic settings,seismic stations and M≥4.0 earthquakes since 2010 in Yangbi region

    图  2  射线路径、台站及地震分布

    Figure  2.  Geographical distribution of seismic stations (triangles),earthquake hypocenters (circles) and ray paths (blue lines) considered in this study

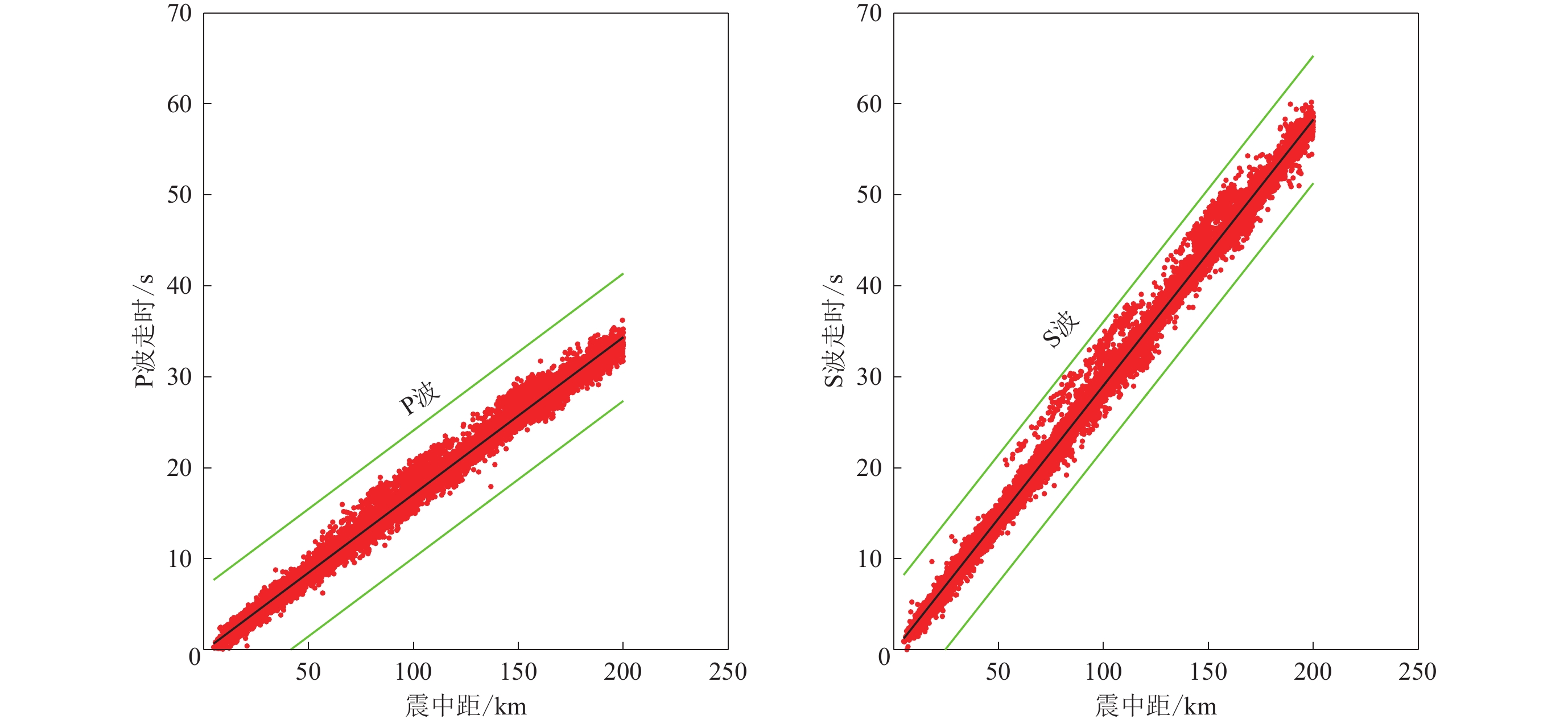

    图  3  P波(左)和S波(右)的时距曲线

    Figure  3.  Time-distance curves of P (left) and S (right) waves

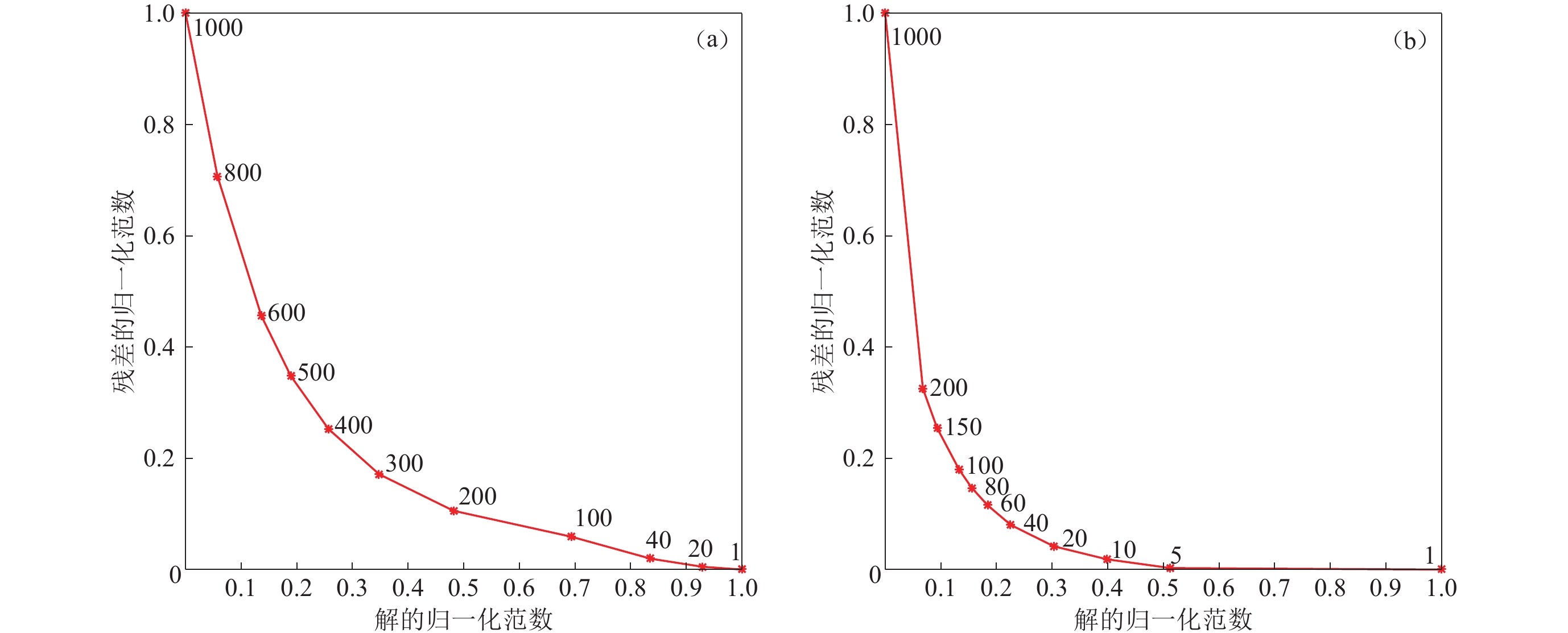

    图  4  本文选取的最佳阻尼因子(a)和平滑因子(b)的折中曲线图

    Figure  4.  Trade-off curves for determining optimal damping (a) and smoothing (b) parameters

    图  5  深度为5 km (a),10 km (b)和15 km (c)时P波(左)和S波(右)检测板的测试结果(0.1°×0.1°)

    Figure  5.  P (left) and S (right) wave checkboard resolution tests at the depth of 5 km (a),10 km (b) and 15 km (c) with the grid 0.1°×0.1°

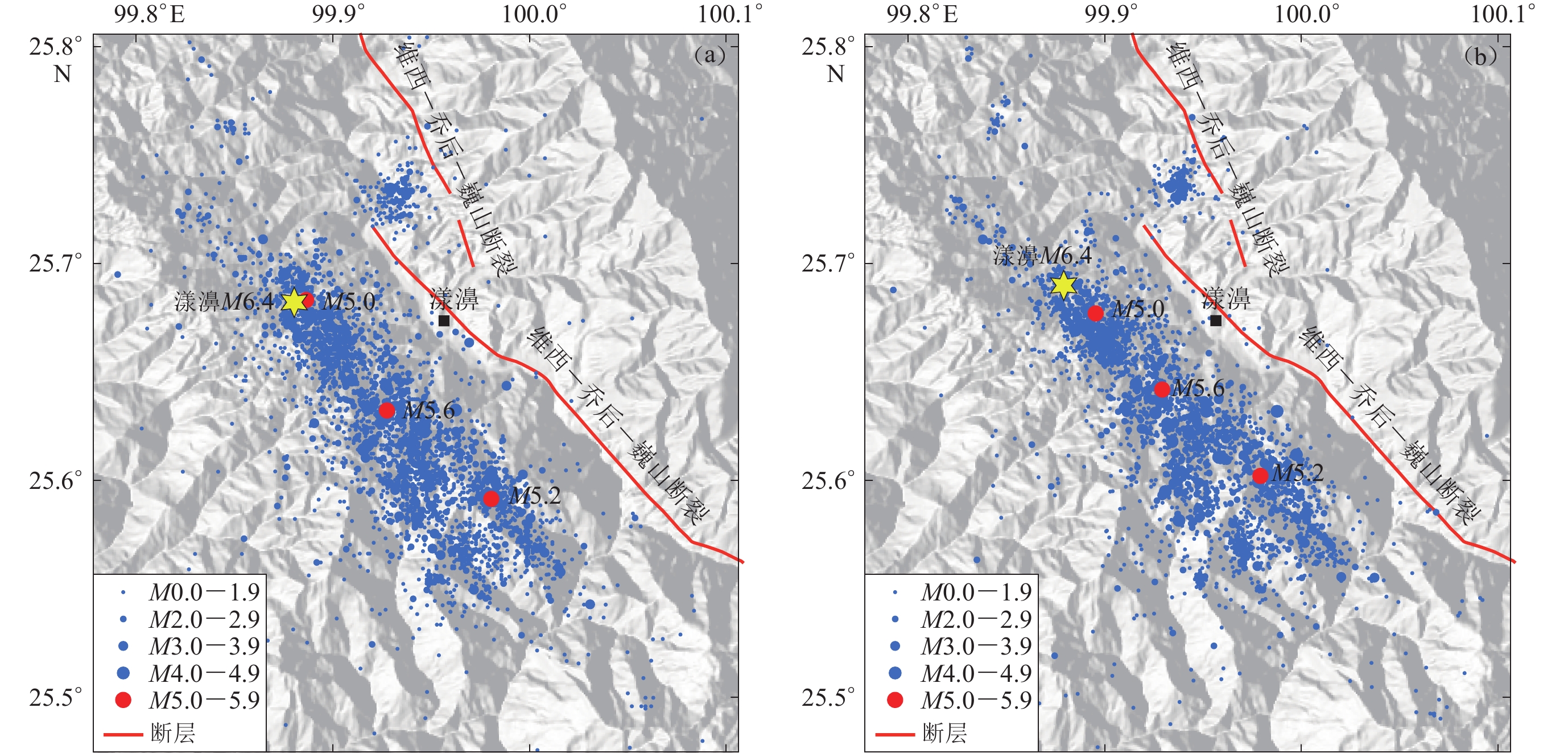

    图  6  漾濞M6.4地震序列重定位前(a)、后(b)的空间分布变化

    Figure  6.  Spatial distribution variation of the Yangbi M6.4 earthquake sequence before (a) and after (b) relocation

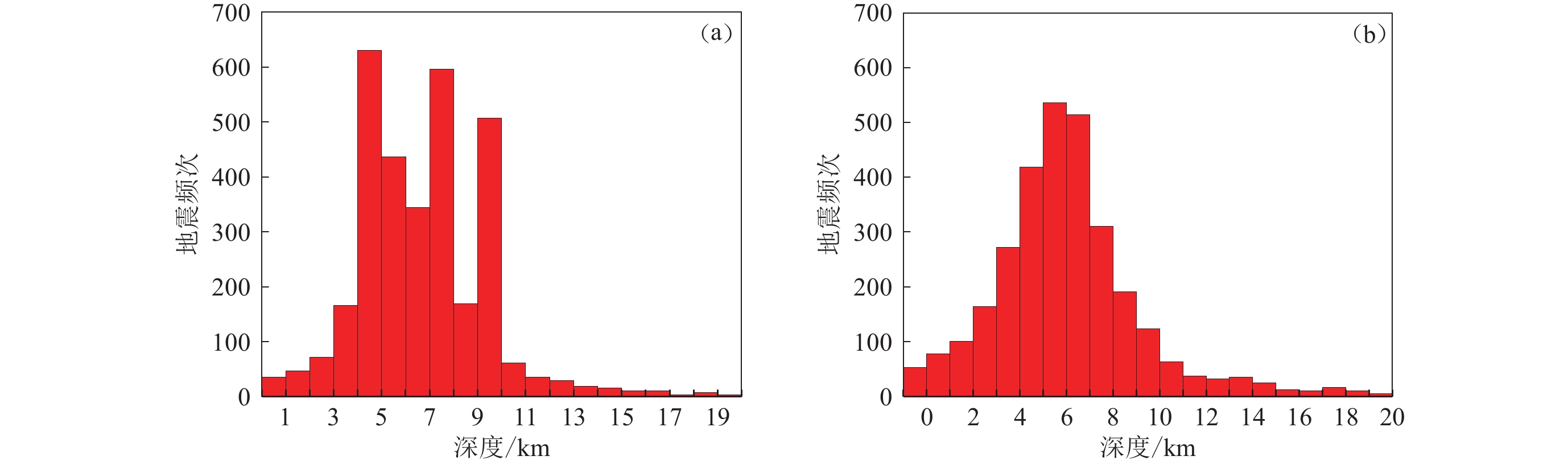

    图  7  漾濞M6.4地震序列重定位前(a)、后(b)的震源深度变化

    Figure  7.  Focal depth variation of the Yangbi M6.4 earthquake sequence before (a) and after (b) relocation

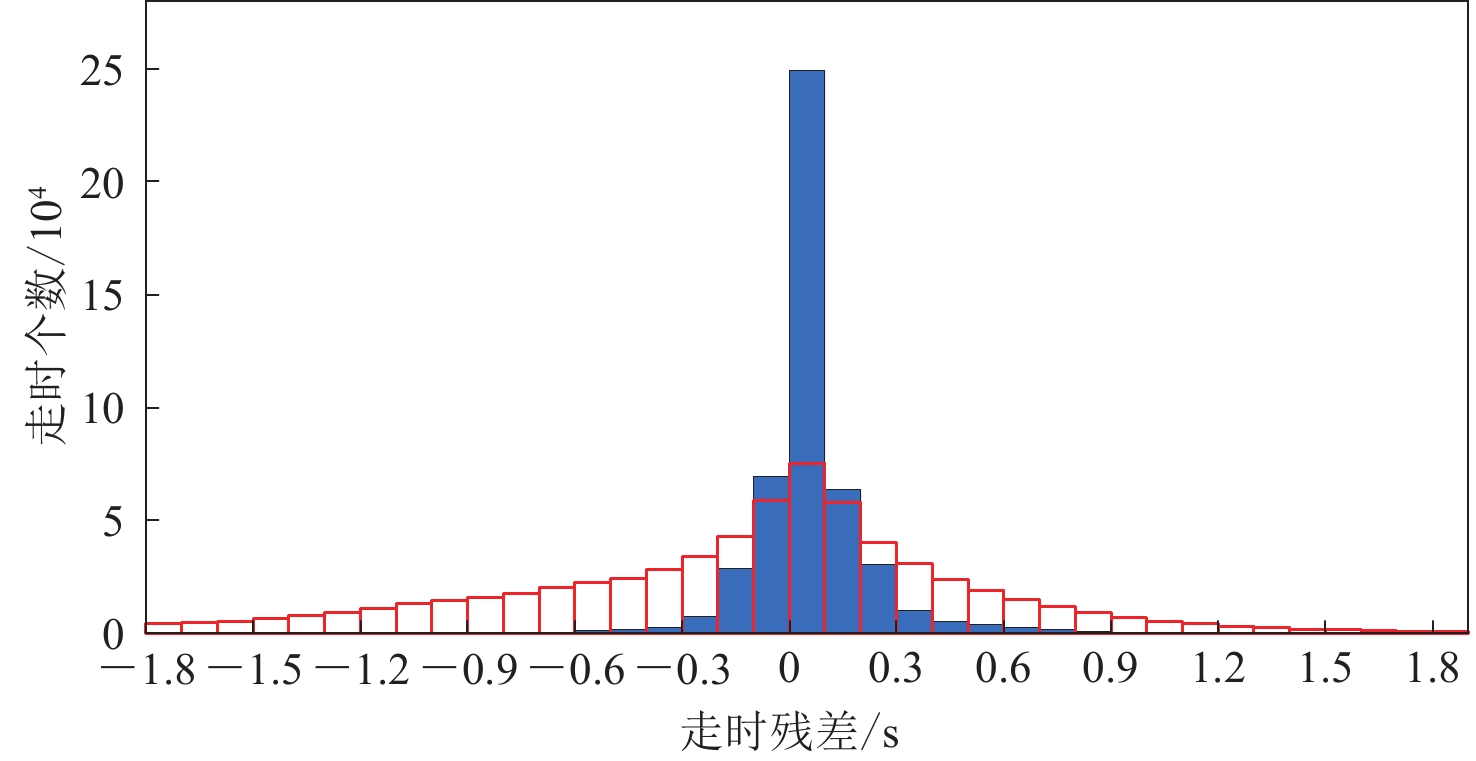

    图  8  重定位前(红)、后(蓝)走时残差直方图

    Figure  8.  Histograms of travel time residual before (red) and after (blue) relocation

    图  9  不同深度zvP (左)和vS (右)分布

    黑色圆圈代表地震, 图(b)中AA′和BB′分别为平行、垂直于漾濞地震序列走向的剖面

    Figure  9.  vP (left) and vS (right) distribution at the depth z of 5,10 and 15 km

    The circles represent earthquakes,and in Fig. (b) AA′ and BB′ are the two profiles parallel to and perpendicular with the strike of the Yangbi sequence,respectively

    图  10  不同深度z上的波速比vP/vS分布

    Figure  10.  vP/vS distribution at the depth z of 5,10 and 15 km

    图  11  vPvSvP/vS沿纵向剖面的变化及漾濞地震序列震中分布图

    Figure  11.  vPvS and vP/vS images along different vertical profiles and epicenter distribution of Yangbi earthquake sequence

    表  1  本文所用的P波初始速度模型

    Table  1.   Initial P wave velocity model used in this study

    深度/kmvP/(km·s−1深度/kmvP/(km·s−1
    0 4.4 20 6.0
    5 5.6 25 6.1
    10 5.8 30 6.3
    15 5.9 50 8.0
    下载: 导出CSV
