分体式海底地震仪及其在北冰洋加克洋中脊的试验

虞嘉辉, 牛雄伟, 金子迪, 牛领辉, 阮爱国, 丁巍伟, 朱小毅, 刘张聚, 刘博文, 庄灿涛, 李家彪

虞嘉辉,牛雄伟,金子迪,牛领辉,阮爱国,丁巍伟,朱小毅,刘张聚,刘博文,庄灿涛,李家彪. 2025. 分体式海底地震仪及其在北冰洋加克洋中脊的试验. 地震学报,47(2):284−296. DOI: 10.11939/jass.20230152
引用本文: 虞嘉辉,牛雄伟,金子迪,牛领辉,阮爱国,丁巍伟,朱小毅,刘张聚,刘博文,庄灿涛,李家彪. 2025. 分体式海底地震仪及其在北冰洋加克洋中脊的试验. 地震学报,47(2):284−296. DOI: 10.11939/jass.20230152
Yu J H,Niu X W,Jin Z D,Niu L H,Ruan A G,Ding W W,Zhu X Y,Liu Z J,Liu B W,Zhuang C T,Li J B. 2025. The seismometer-detached ocean bottom seismograph and its experiments in the Gakkel Ridge,Arctic Ocean. Acta Seismologica Sinica47(2):284−296. DOI: 10.11939/jass.20230152
Citation: Yu J H,Niu X W,Jin Z D,Niu L H,Ruan A G,Ding W W,Zhu X Y,Liu Z J,Liu B W,Zhuang C T,Li J B. 2025. The seismometer-detached ocean bottom seismograph and its experiments in the Gakkel Ridge,Arctic Ocean. Acta Seismologica Sinica47(2):284−296. DOI: 10.11939/jass.20230152

分体式海底地震仪及其在北冰洋加克洋中脊的试验

基金项目: 中央级公益性科研院所基本科研业务费专项资金(JG2204)、浙江省自然科学基金(LZ23D060004)和国家自然科学基金(42276064)共同资助
详细信息
    作者简介:

    虞嘉辉,在读硕士研究生,主要从事海洋地球物理主动源地震探测方面的研究,e-mail:1030463178@qq.com

    通讯作者:

    牛雄伟,博士,研究员,主要从事海底地震与深部结构探测研究,e-mail:xwniu@sio.org.cn

  • 中图分类号: P315.62

The seismometer-detached ocean bottom seismograph and its experiments in the Gakkel Ridge,Arctic Ocean

  • 摘要:

    中国第十二次北极科学考察在密集浮冰覆盖的北冰洋加克洋中脊完成了国际首次大规模主动源海底地震仪探测,成功回收了43台海底地震仪中的42台,其中5台分体式海底地震仪均成功回收。本文介绍了针对该航次中面临的海底地震仪回收定位难题研发的一款新型分体式海底地震仪,其主要特点为:① 集成超短基线信标和声学应答系统,实现双重定位保障;② 使用分体式结构增强地震计与海底的耦合,有效提高信噪比;③ 选用国产地震计和浮力材料,实现核心部件国产化。分体式海底地震仪在北冰洋加克洋中脊的试验结果显示:地震背景噪声能量低,且记录的远震波形、两个近源微地震波形和三分量主动源地震记录均具有清晰可见的震相信息,表明该分体式海底地震仪能够满足冰下海底勘探需求。

    Abstract:

    The ocean bottom seismograph (OBS) is an indispensable instrument for investigating the deep crust-mantle structure. China’s 12th Arctic scientific expedition marked a significant milestone in marine seismic exploration by achieving the first large-scale active exploration along the challenging Gakkel Ridge in the Arctic Ocean, where ice coverage poses formidable obstacles. Impressively, the expedition successfully recovered 42 out of 43 deployed OBSs, with all five seismometer-detached OBSs retrieved intact. This paper introduces a seismometer-detached OBS specifically developed to overcome the unique challenges encountered during the expedition, particularly in terms of OBS recovery and positioning. Its main features include:

    1) The newly developed seismometer-detached OBS integrates cutting-edge technology to enhance its functionality and performance under harsh Arctic conditions. One of its key innovations is the combination of ultra-short baseline beacons and advanced acoustic response short baseline array positioning systems, which improves positioning accuracy through dual positioning technology. The positioning accuracy error of the short baseline array is within ±100 m, and the mature Sonardyne ultra-short baseline array loaded on the Xuelong-2 polar scientific research icebreaker can achieve a positioning accuracy up to one thousandth of the water depth. The use of such a dual positioning system can ensure accurate positioning of the instrument even in areas with dense ice layers. This ground-breaking design significantly improves the accuracy and efficiency of OBS recovery operations, enabling researchers to locate and recover instruments with unprecedented reliability and precision.

    2) Referencing the current status of seismometer-detached OBSs both domestically and internationally, a titanium alloy seismic instrument chamber with a buoyancy of 17 kg in water has been designed. This chamber is incorporated into the seismic instrument separation structure, independently installed inside the OBS hull via flexible cables. Upon reaching the seafloor, it is timed to release, optimizing the coupling between the seismic instrument and the seabed. This structure also serves to reduce the impact of bottom currents on the seismometer. By enhancing this coupling, the OBS effectively improves the signal-to-noise ratio for recording seismic data, thus minimizing ambient noise and interference. Consequently, researchers can obtain clearer and more accurate seismic records, thereby facilitating a deeper understanding of the Earth’s geological processes and tectonic activities.

    3) The OBS utilizes advanced domestic seismic instruments and buoyancy materials. On one hand, this provides new options for the materials used in OBS development, to some extent alleviating the problem of insufficient component production, which is advantageous for the large-scale production and industrialization. On the other hand, it enhances the flexibility of the OBS’s design, enabling the possibility of loading multi-functional modules onto the OBS. Additionally, using domestically produced seismometers makes it easier to optimize and develop hardware and software according to scientific research requirements. This signifies a significant step towards achieving self-sufficiency in marine instrument technology. This domestic production capacity not only enhances China’s scientific research capabilities, but also promotes innovation and technological advancement in the field of marine instruments, establishing independent intellectual property rights for key technologies of marine seismographs.

    China’s 12th Arctic scientific expedition has yielded promising results, with the seismometer-detached OBS demonstrating exceptional performance in recording seismic signals. It was capable of collecting seismic data in the low-level horizontal seismic ambient noise environment along the Gakkel Ridge of the Arctic Ocean. Notably, the OBSs have exhibited low horizontal seismic ambient noise levels, underscoring their suitability for seismic exploration in ice-covered marine environments. Additionally, these OBSs successfully collected the waveform records of a small teleseismic, two micro-earthquakes and three-component active seismic exploration. This validates to some extent the effectiveness of the seismometer-detached structure in improving the signal-to-noise ratio, indicating that this type of OBS can meet the requirements for submarine exploration under the ice.

    The successful development and application of the seismometer-detached OBS provide valuable experience for future submarine seismic exploration in extreme environments. Looking ahead, there are opportunities for further enhancement in various aspects such as real-time data transmission, longer battery life, and integration of more modularized sensors. The use of flexible buoyancy materials also liberates the submarine seismograph from the limitations imposed by traditional glass chambers. This enables the configuration of different types of modularized sensors, thus paving the way for the development of a versatile submarine observation platform with powerful functionality.

  • 随着页岩气大量开采,诱发地震数量急剧增加,引起了全球的广泛关注。美国俄克拉荷马州(Oklahoma)页岩气田和荷兰格罗宁根(Groningen)天然气田规模化开采后,地震频次明显增加,开采区的房屋遭受严重的损坏(Walsh,Zoback,2015Mulder,Perey,2018);我国2014年后对四川长宁、威远和重庆涪陵焦石坝等区域进行了规模化页岩气开采,原本地震活动性较低的地区地震频次大幅上升,造成了重大经济损失和严重后果(何登发等,2019Yang et al,2020)。为了对诱发地震灾害进行有效防控,须定量地分析诱发地震对我国一般房屋建筑的影响。

    房屋建筑地震易损性分析是开展地震灾害风险评估的关键环节。国外对于房屋结构的诱发地震影响已有一些研究,例如:Crowley等(20172019)建立了荷兰格罗宁根区域的建筑群模型,给出了当地不同砖砌体结构与非结构构件的倒塌和损伤易损性函数,并对诱发地震导致人员伤亡风险进行了评估;Kurkowski (2018)研究了诱发地震作用下砌体饰面的易损性;Chase等(2019)采用Pushover分析方法,建立了美国俄克拉荷马州轻型木框架建筑考虑诱发地震影响的易损性函数,并研究了诱发地震作用下的结构累积损伤效应;Kallioras等(2019)对不同结构进行了振动台试验,研究了无筋砌体结构的动力性能,建立了诱发地震作用下的无筋砌体结构易损性模型;Silva等(2021)基于Pushover分析方法建立了巴西典型结构和非结构构件考虑诱发地震影响的易损性函数。

    鉴于我国页岩气开采时间较晚,有关考虑诱发地震影响的建筑结构易损性分析目前尚未见相关报道,还缺少考虑诱发地震地震动作用的结构易损性模型。尽管国外学者已对砌体及木框架结构的诱发地震易损性展开了研究,但仍然没有关于天然地震和诱发地震作用下的易损性模型对比研究,未能揭示天然地震地震动与诱发地震地震动影响的差异。此外,在开展考虑诱发地震地震动作用的结构易损性分析时,如未考虑多次诱发地震地震动作用引起的累积损伤效应,可能会低估多次诱发地震地震动作用下的结构破坏概率。鉴于此,本文以天然地震地震动及诱发地震地震动作为输入,对比研究两类地震动对砌体结构影响的差异,并采用循环往复分析方法研究多次诱发地震地震动作用下的累计损伤效应,以分析诱发地震对我国一般房屋建筑的影响。

    结构的地震易损性是指在给定强度水平的地震动作用下结构超越一定破坏状态的条件概率,即:

    $$ {P_{\text{f}}} = P [ D {\text{≥}} C\,|\, IM{{ = }}x] ] \text{,} $$ (1)

    式中:Pf为地震动强度为x时结构超越某破坏状态的条件概率;D为结构需求参数;C为结构能力参数;IM为地震动强度指标。

    一般认为,对数正态分布是比较理想的易损性概率模型,即结构需求参数D和结构能力参数C均服从对数正态分布,则易损性可以表示为

    $$ {P_{\text{f}}} = \varPhi \left(\frac{{\ln {DM_{IM = x}} - \ln {\mu _C}}}{{\sqrt {{\beta _C^2} + {\beta _D^2}} }}\right) \text{,} $$ (2)

    式中:Φx)为标准正态分布函数;DMIM=x为地震动强度为x时的结构需求中值;μC为对应于不同破坏状态的结构能力参数中值;βDβC分别为结构需求参数和破坏状态对应结构能力参数的对数标准差。

    根据易损性概率模型,易损性分析的关键是确定在给定强度水平地震动作用下结构需求参数的统计特征,以及破坏状态对应的结构能力参数的统计特征。一方面,可以基于结构地震响应分析建立结构地震需求与地震动强度指标之间的统计关系,即结构概率地震需求模型;另一方面,可基于理论分析及试验数据确定结构不同破坏状态对应的结构能力参数统计特征,即破坏准则。

    本文采用Pushover能力谱法建立结构的概率地震需求模型。Pushover分析是对结构进行静力单调加载下的弹塑性分析方法。该方法将地震荷载等效成水平分布的侧向力施加在结构上,并逐渐增大水平力或水平位移,直至结构的控制点达到目标位移或结构倾覆。Pushover分析方法模型简单,且分析结果与时程分析结果相近,是可行的弹塑性分析方法(张勇,2013;Murat et al,2019)。对于总高度较低且弹塑性地震响应主要取决于第一振型的结构,Pushover分析方法所得结果的误差较小(缪志伟等,2008)。

    基于Pushover分析得到大量结构需求参数及其对应的地震动参数后,可通过下式确定结构需求参数中值DM与地震动强度参数IM之间的关系,以及结构需求参数的对数标准差βDShome,1999Cornell et al,2002):

    $$ \ln D{M_{IM = x}} = a + {{b}}\ln x \text{,} $$ (3)

    式中ab为回归系数,根据结构地震响应与地震动参数之间的对数线性回归确定,对数线性回归的标准差即为βD

    砌体结构破坏等级通常可分为 “基本完好” 、 “轻微破坏” 、 “中等破坏” 、 “严重破坏” 、 “毁坏”等五类。由于砌体结构自重大,抗剪切能力差,一般将延性系数作为指标来表示砌体结构在地震动作用下的需求参数,本文中的延性系数是指砌体结构在地震动作用下极限位移与屈服位移之比。参考郝敏等(2007)对砌体结构延性系数与破坏等级关系的研究,采用延性系数作为变形指标进行划分,延性系数与破坏等级的关系如表1所示。根据延性系数与破坏等级的关系可确定各破坏状态所对应结构能力参数限值(表1中第三列),本文不考虑结构能力参数的不确定性,即βC=0。

    表  1  砌体结构延性系数与破坏等级之间的关系(郝敏等,2007
    Table  1.  Relationship between ductility coefficient and damage grade of masonry structure (Hao et al,2007
    破坏等级 延性系数μ 能力参数限值
    基本完好 μ≤0.68
    轻微破坏 0.68<μ≤1.3 0.68
    中等破坏 1.3<μ≤3.5 1.3
    严重破坏 3.5<μ≤6.5 3.5
    毁坏 μ>6.5 6.5
    下载: 导出CSV
    | 显示表格

    最后,给定强度水平x的地震动作用下的结构易损性可采用下式计算:

    $$ {P_{\text{f}}} = \varPhi \left(\frac{{a + {{b}}\ln x - \ln {\mu _{\rm{C}}}}}{{{\beta _{\rm{D}}}}}\right) {\text{.}} $$ (4)

    选取我国西南页岩气开采地区典型的三层、六层砌体结构为研究对象,承重墙采用烧结黏土砖,等级为MU15,砂浆强度等级为M5。三层结构长11.8 m,宽7 m;六层结构长35.1 m,宽12.2 m。两种结构层高均为3 m,纵横墙承重,墙厚均为240 mm。楼面和屋面均采用120 mm厚钢筋混凝土楼板,选用C20混凝土。楼面活荷载为3 500 N/m2,屋面活荷载为4 500 N/m2,三层、六层结构的基本周期为0.15 s和0.34 s,相应的结构布置图分别见图1图2

    图  1  三层结构平面图与立面图(单位:mm)
    Figure  1.  Three-story structure plan and elevation (unit:mm)
    图  2  六层结构平面图与立面图(单位:mm)
    Figure  2.  Six-story structure plan and elevation (unit in mm)

    砌体结构高和宽较小,地震中以剪切破坏为主,一般使用层间剪切模型(图3)对结构进行非线性地震反应分析,其中ki为第i层刚度,mi为第i层质量。假定建筑物各层楼板平面内刚度无限大,水平地震动作用下各楼层竖向构件的侧向位移相同。国内外学者对砌体恢复力模型进行了大量研究,得到了基于数学表达式的理想化结构恢复力曲线,本文选用张令心等(2002)总结大量有无构造柱的砖墙体试验数据得到的考虑构造柱影响的恢复力模型,如图4所示。该模型为三线性刚度退化模型,不仅考虑了墙体正反向加载时软化段的特性,还结合了卸载段刚度退化的规则,该模型有五个独立参数,即屈服强度(Vy)、极限强度(Vp)、初始刚度(K0)、硬化刚度(K1)和软化负刚度(K2)。选用张令心等(2002)提出的砌体墙段抗侧移刚度计算方法对砌体墙段及构造柱刚度进行计算,计算方法如下所述,结构层间刚度为砌体各墙段的刚度值之和。

    图  3  砌体结构层间剪切模型示意图
    Figure  3.  Schematic diagram of interlayer shearing model of masonry structure
    图  4  三线性恢复力模型示意图(张令心等,2002
    Figure  4.  Schematic diagram of trilinear restoring of masonry structure force model (after Zhang et al,2002

    1) 初始刚度K0

    ① 对于无孔洞、无构造柱墙段,

    $$ \begin{split} \\ {K_0} = \left\{ \begin{array}{l} \dfrac{{G{A_{\rm{t}}}}}{{\xi h}} \qquad \quad \qquad \,\,\,\,\,\,\,\, h/b<1 \text{,} \\ \dfrac{{G{A_{\rm{t}}}}}{{1.2h\left(1 + \dfrac{{{h^2}}}{{3{b^2}}}\right)}} \qquad 1 {\text{≤}} h/b {\text{≤}} 4 \text{,} \end{array} \right. \end{split} $$ (5)

    式中:At为墙段水平截面总面积;h为砌体墙段层间计算高度;b为墙段水平截面宽度;G为砌体剪切模量,是砌体弹性模量的2/5;ξ为砌体剪应力不均匀影响系数,矩形截面取1.2。当h/b>4时不考虑其刚度。

    ② 对于设有构造柱或有开洞的墙段,

    $$ {K_0} = {\lambda _0}\frac{{G{A_{\rm{t}}}}}{{\xi h}} \text{,} $$ (6)

    式中,$ {\lambda }_{0} $为砌体墙段考虑弯曲和开洞影响的刚度修正系数,计算公式如下:

    $$ {\lambda _0} = \left\{ \begin{array}{l} \dfrac{{{\varphi _0}{A_{\text{z}}}}}{{{A_{\rm{t}}}}}\qquad \quad \qquad \,\,\,\,\,\,\,\, h/b<1 \text{,} \\ \dfrac{{{\varphi _0}}}{{1 + \dfrac{{G{A_{\text{z}}}}}{\xi } \dfrac{{{h^2}}}{{12E{\boldsymbol{I}}}}}} \qquad 1 {\text{≤}} h/b {\text{≤}} 4 \text{,} \end{array} \right. $$ (7)

    式中:φ0为砌体墙段开洞影响系数,按照墙体开洞率A/At来取值,具体取值列于表2,其中A为不考虑洞口的墙体水平截面积;Az为砌体墙段水平截面折算面积,计算公式为

    表  2  砌体墙段开洞影响系数
    Table  2.  Influence coefficient of masonry wall with opening
    开洞率影响系数φ0 开洞率影响系数φ0
    0.90.98 0.60.76
    0.80.94 0.50.68
    0.70.88 0.40.56
    下载: 导出CSV
    | 显示表格
    $$ {A_{\text{z}}} = {A_{{\rm{j}}{\text{z}}}} + {\eta _{\rm{g}}}\frac{{{E_{\rm{c}}}}}{E}{A_{\rm{c}}}\text{,} $$ (8)

    式中:Ac为墙段扣除开洞及构造柱的水平截面积;Ec为混凝土构造柱弹性模量;Ajz为墙体扣除开洞与构造柱水平截面积之后的墙体水平净截面积;ηg为考虑构造柱钢筋参与墙体工作的工作系数,当h/b≥0.5时,ηg=0.30,当h/b<0.5时,ηg=0.26;I为墙体构造柱水平截面积之和按其混凝土弹性模量与砖砌体弹性模量的比值折算后,与墙体水平净截面积一起按照“I”字型截面计算的惯性矩。

    2) 硬化刚度K1和软化负刚度K2。计算公式为:

    $$ {K_1} = {\alpha _1}{K_0}\text{,} \,\,\, {K_2} = {\alpha _2}{K_0}\text{,} $$ (9)

    式中,α1为硬化比,α2为软化系数。当不考虑构造柱作用时,α1=0.18,α2=−0.166;当考虑构造柱作用时,α1=0.075,α2=−0.056。

    3) 卸载刚度Ku。计算公式为:

    $$ {K_{\rm{u}}} = {\left(\frac{X}{{{X_{\rm{c}}}}}\right)^{{\alpha _3}}}{K_0} $$ (10)

    式中:X为墙体卸载时的层间位移,Xc为墙体开裂时的层间位移;α3为卸载系数,当不考虑构造柱作用时,α3=−0.60;当考虑构造柱作用时,α3=−0.53。

    屈服强度Vy的计算公式为:

    $$ {V_{\rm{y}}} =\left\{ \begin{array}{l} \dfrac{{A{\tau _{{\rm{k}}, x}}}}{\xi }\sqrt {1 + \dfrac{{{\sigma _0}}}{{{\tau _{{\rm{k}}, x}}}}} \qquad \,\,\, 不考虑构造柱\text{,} \\ \dfrac{{{A_{\text{z}}}{\tau _{{\rm{k}}, x}}}}{\xi }\sqrt {1 + \dfrac{{{\sigma _0}}}{{{\tau _{{\rm{k}}, x}}}}} \qquad 考虑构造柱 \text{,} \end{array} \right.$$ (11)

    极限强度Vp的计算公式为:

    $${V_{\rm{p}}} = {\alpha _{\rm{y}}}{V_{\rm{y}}}\text{,} \quad \,\,\,\,\, \, 不考虑构造柱时\,{\alpha _{\rm{y}}} = 1.192 \text{,} 考虑构造柱时\, {\alpha _{\rm{y}}} = 1.110 \text{,} $$ (12)

    式中:τk x为砌体沿灰缝的抗剪强度,σ0为首层墙段中间高度平均压应力,A为墙段净截面面积。

    为减少诱发地震地震动的不确定性对分析结果的影响,从Assatourians和Atkinson (2019)开发的诱发地震数据库中随机选取40条原始水平地震动加速度记录,震级的分布范围为4.1—5.7,震中距的分布范围为2.00—31.40 km,场地类型均为Ⅱ类;此外,从美国太平洋地震工程研究中心(Pacific Earthquake Engineering Research Center,缩写为PEER)强震数据库中选取震中距及震级相近、场地类型相同的40条原始水平地震动加速度记录。所选取的地震动记录基本信息列于表3

    表  3  天然地震地震动与诱发地震地震动记录的基本信息
    Table  3.  Basic information of ground motion records of natural and induced earthquakes
    诱发地震天然地震诱发地震天然地震
    M震中距
    /km
    PGA
    /(cm·s−2
    M震中距
    /km
    PGA
    /(cm·s−2
    M震中距
    /km
    PGA
    /(cm·s−2
    M震中距
    /km
    PGA
    /(cm·s−2
    4.7 12.95 14.04 4.79 13.55 38.97 4.9 31.4 27.71 4.92 31.71 30.24
    4.7 2.71 63.94 4.7 2.84 158.0 4.9 15.02 69.84 4.92 14.94 38.79
    5.7 27.29 62.39 5.7 27.78 36.42 4.3 3.95 197.5 4.27 3.69 20.02
    4.8 27.63 63.60 4.88 27.89 103.6 4.4 6.02 231.6 4.45 6.46 33.72
    4.5 5.17 36.20 4.6 5.2 184.5 4.5 7.28 43.7 4.45 7.46 63.36
    4.5 10.04 19.55 4.6 10.16 12.10 4.1 2.0 261.5 4.12 1.42 167.51
    4.5 4.47 367.8 4.45 4.7 29.43 4.1 4.23 97.21 4.1 4.41 99.87
    4.3 2.47 215.5 4.27 2.67 48.83 4.4 6.71 114.9 4.37 6.48 6.004
    4.3 5.66 267.6 4.3 5.28 37.54 4.4 4.9 162.1 4.45 4.7 29.44
    4.1 2.76 284.6 4.05 2.93 21.93 4.4 1.7 341.5 4.45 1.0 159.68
    4.1 5.42 380.0 4.1 5.39 84.58 4.4 4.53 116.1 4.5 4.62 57.93
    4.4 2.88 152.7 4.45 2.38 216.77 4.7 27.22 49.30 4.77 26.39 8.036
    4.3 8.57 154.4 4.2 8.32 54.57 4.4 6.9 38.51 4.5 6.35 26.75
    4.3 8.55 144.4 4.3 8.76 68.84 4.7 23.32 30.87 4.7 23.47 15.42
    4.3 2.48 666.5 4.3 2.67 48.83 4.7 16.2 51.80 4.7 16.05 16.94
    4.3 6.96 51.38 4.26 7.34 14.54 4.3 3.39 255.1 4.26 3.45 44.97
    4.9 17.91 72.05 4.9 18.46 26.19 4.2 3.68 284.8 4.2 3.34 71.14
    4.9 24.25 47.49 4.92 24.5 36.80 4.2 7.92 33.5 4.2 7.98 120.56
    4.9 28.69 37.40 4.92 29 59.15 4.2 5.52 19.80 4.3 5.14 24.57
    4.9 21.21 37.72 4.9 21.48 28.98 4.2 5.84 413.7 4.2 5.31 245.06
    下载: 导出CSV
    | 显示表格

    所选取的诱发地震与天然地震的地震动加速度反应谱及其平均谱如图5所示。将诱发地震与天然地震记录的平均加速度反应谱进行对比,结果如图6所示。由图5图6可以看出:在震级和震中距都接近的条件下,诱发地震加速度反应谱Sa值在5 Hz以上的高频段大于天然地震,且平均加速度反应谱峰值远大于天然地震;诱发地震平均加速度反应谱在达到峰值后迅速衰减,在5 Hz以下频段小于天然地震平均加速度反应谱值。可见,诱发地震的地震动以高频成分为主,低频成分较少,主要影响基本自振周期为0.1 s左右的低矮建筑。

    图  5  诱发地震(a)和天然地震(b)的地震动加速度反应谱
    Figure  5.  Ground motion acceleration response spectra of induced earthquake (a) and natural earthquake (b)
    图  6  诱发地震与天然地震的平均地震动加速度反应谱
    Figure  6.  Mean ground motion acceleration response spectra of induced and natural earthquakes

    分别对选取的40条诱发地震加速度记录进行PGA归一化处理后等间距调幅,增幅步长为0.05g,之后对砌体结构模型进行Pushover分析,荷载分布采用倒三角形分布侧向加载。考虑到峰值加速度指标对于短周期结构的相关性更高(叶列平等,2009),加速度反应谱是单自由度结构体系在地震动作用下的最大响应,同时反映了地震动和建筑结构的自身特性,因此本文以峰值加速度PGA和结构一阶周期对应的加速度反应谱值Sa作为地震动强度参数,计算在给定地震动强度参数下结构的延性系数。将结构延性系数DM分别与峰值加速度PGA和结构一阶周期对应的加速度反应谱值Sa进行对数线性回归拟合,得到结构概率地震需求模型。三层砌体结构概率地震需求模型如图7a所示。再按相同方法对天然地震地震动进行处理,进行Pushover分析,计算结构延性系数,与PGA和Sa进行对数线性回归拟合,得到天然地震下结构概率地震需求模型,如图7b所示。详细拟合参数列于表4

    图  7  诱发地震(a)与天然地震(b)的三层结构地震概率需求模型
    Figure  7.  Probabilistic seismic demand models of three-story structure for induced earthquakes (a) and natural earthquakes (b)
    表  4  不同地震及结构类型关于PGA和Sa的拟合参数
    Table  4.  Fitting parameters of different seismic and structural types
    结构类型地震类型地震动参数拟合结果拟合优度均方根误差
    三层砌体 诱发地震 PGA lnDM=1.11 lnPGA+2.60 0.78 0.62
    天然地震 PGA lnDM=1.20 lnPGA+2.90 0.71 0.56
    诱发地震 Sa lnDM=1.05 lnSa+1.46 0.84 0.36
    天然地震 Sa lnDM=1.17 lnSa+1.54 0.77 0.50
    六层砌体 诱发地震 PGA lnDM=1.04 lnPGA+1.50 0.73 0.55
    天然地震 PGA lnDM=1.20lnPGA+2.28 0.81 0.51
    诱发地震 Sa lnDM=0.97lnSa+1.64 0.63 0.71
    天然地震 Sa lnDM=1.16lnSa+1.61 0.64 0.69
    注:DM为结构延性系数。
    下载: 导出CSV
    | 显示表格

    基于结构概率地震需求模型和结构破坏准则,以PGA和结构基本周期对应的加速度反应谱值Sa为输入地震动参数,建立诱发地震和天然地震作用下三层砌体结构和六层砌体结构的易损性曲线,如图8所示。

    图  8  三层(上)、六层(下)砌体结构基于PGA (a)和Sa (b)的易损性曲线
    Figure  8.  Vulnerability curves of three-storey (top) and six-storey (bottom) masonry structures based on PGA (a) and Sa (b)

    图8中可以看出,当采用PGA表征地震动的强度水平建立易损性曲线时,以天然地震地震动作为输入的易损性均高于诱发地震,即对应于相同的PGA值,天然地震地震动作用下结构各破坏状态的超越概率均大于诱发地震,其中以六层砌体结构严重破坏和毁坏状态最为显著。也就是说,采用天然地震作用下基于PGA的结构易损性模型评估考虑诱发地震影响的灾害风险偏保守。图9给出了天然地震和诱发地震的地震动对PGA归一化处理后的加速度反应谱平均值。显然,在峰值加速度相同的情况下,天然地震地震动在三层结构基本自振周期0.15 s和六层结构基本自振周期0.34 s的加速度反应谱平均值均大于诱发地震的情况,特别是在0.34 s处非常显著。对于基本振型反应为主导的三层和六层砌体结构,天然地震地震动和诱发地震地震动上述频谱特性的差异是导致结构易损性差异的主要原因。

    图  9  基于PGA归一化后的天然地震和诱发地震的平均地震动加速度反应谱
    Figure  9.  Mean ground motion acceleration response spectra of natural and induced earthquakes after PGA normalization

    图8还可以看出:当采用结构基本自振周期的加速度反应谱Sa表征地震动强度水平建立易损性曲线时,以天然地震地震动和诱发地震地震动作为输入得到的三层砌体结构易损性曲线比较接近,即对应于相同的Sa值,天然地震地震动作用下结构基本完好和轻微破坏的超越概率大致与诱发地震的情况相同,而严重破坏和毁坏的超越概率略大于诱发地震。图10a给出了天然地震和诱发地震的地震动对Sa (0.15 s)归一化处理后的加速度反应谱平均值,可以看到,天然地震地震动的平均加速度反应谱在大于0.15 s的周期段仍大于诱发地震地震动,而这些频率成分影响着结构软化基本周期延长后的地震响应。

    图  10  基于Sa (0.15 s)(a)和Sa (0.34 s)(b)归一化后的天然地震与诱发地震的平均地震动加速度反应谱
    Figure  10.  Mean ground motion acceleration response spectra of natural earthquakes and induced earthquakes after Sa (0.15 s)(a) and Sa (0.34 s)(b) normalization

    图8也可以看出,当采用结构基本自振周期的加速度反应谱Sa表征地震动的强度水平建立易损性曲线时,以天然地震地震动作为输入得到的六层砌体结构易损性低于诱发地震的情况,即对应于相同的Sa值,诱发地震地震动作用下结构各破坏状态的超越概率均大于天然地震。图10b给出了天然地震和诱发地震的地震动对Sa (0.34 s)归一化处理后的加速度反应谱平均值,显然,天然地震和诱发地震的平均地震动加速度反应谱在大于0.34 s的周期段基本一致,而在小于0.34 s的周期段,天然地震的平均地震动加速度反应谱显著小于诱发地震。虽然六层砌体结构以基本振型反应为主导,但是高阶振型仍有一定的影响,而诱发地震地震动高频成分较天然地震地震动更为丰富,因此在相同Sa条件下,诱发地震地震动可能导致六层砌体结构产生更高的破坏概率。

    可见,忽略天然地震地震动与诱发地震地震动的幅值及频谱特性之间的差异,采用基于天然地震地震动作为输入的结构易损性模型评估考虑诱发地震影响的地震灾害风险不尽合理,有必要建立考虑诱发地震影响的建筑结构易损性模型。

    结构在单次诱发地震作用下会产生不同程度的损伤,多次诱发地震后材料、构件、结构损伤逐渐累积,最终会导致结构失效,因此只考虑单次诱发地震对结构的作用是不完善、不安全的。本文采用循环往复加载分析方法(黄维等,2011刘晶波等,2013),分析两次诱发地震的地震动作用对砌体结构的影响。在使用Pushover计算出结构最大顶点位移之后,先正向加载到结构在第一次诱发地震地震动作用中的最大顶点位移,然后卸载到零,再反向对结构进行加载后卸载,再次加载直到结构破坏。将第二次正向加载曲线的坐标变换后得到结构第二次地震动作用的Pushover曲线,通过Pushover分析即可得到两次诱发地震地震动作用下的结构反应。

    将选取的40组诱发地震地震动归一化处理后等间距调幅,调幅步长为0.05g,随机组合模拟两次诱发地震的作用。对砌体结构模型进行循环往复加载分析,以PGA作为地震动强度参数,计算结构在给定地震动强度参数下的结构延性系数,而后对所计算出的地震延性系数与地震动强度参数PGA进行对数线性回归拟合,得到诱发地震下砌体结构的概率地震需求模型。

    基于结构概率地震需求模型和结构破坏准则,建立基于PGA的砌体结构诱发地震易损性曲面,如图11所示。可见,随着第一次与第二次地震PGA的增加,砌体结构发生破坏的超越概率逐渐增大。从两次诱发地震毁坏破坏图可以看出,在两次诱发地震的地震动作用下,结构不同状态的破坏概率并不关于第一次与第二次地震PGA相等的平面对称,结构在第一次地震大第二次地震小情况下比第一次地震小第二次地震大情况下的破坏概率大,这是由于结构损伤程度随地震强度增大而增大,结构的性能状态发生变化,承载能力与抗震能力下降,结构可靠度降低。图11中易损面与只发生第一次诱发地震的平面的交线即为单次诱发地震作用下砌体结构破坏的超越概率,可以看出,相比单次地震作用,砌体结构在两次地震作用下结构产生不同破坏状态的概率显著增大。

    图  11  两次诱发地震作用下三层(a)、六层(b)砌体结构毁坏的易损面
    Figure  11.  Vulnerable surfaces of three-story (a) and six-story (b) masonry structure collapse under two induced earthquakes

    本文综合考虑诱发地震的地震动特性和建筑结构特征,以典型砌体结构为研究对象,分别选取天然地震和诱发地震的加速度时程作为输入,采用Pushover方法开展结构地震响应和易损性分析研究,得出以下结论:

    1) 震级和震中距都接近时,诱发地震地震动的高频成分相对天然地震更丰富,对自振周期在0.1 s左右的短周期结构可能造成更严重的破坏。

    2) 建立了诱发地震和天然地震地震动作用下基于峰值加速度和结构基本周期加速度反应谱的砌体结构易损性曲线,结果表明诱发地震地震动与天然地震地震动作用下的结构地震响应及易损性曲线均有显著差异。无论采用PGA还是Sa作为地震动参数,以天然地震地震动作用下的结构易损性模型开展风险评估都可能导致偏不安全的结果。因此,需要建立以诱发地震地震动作为输入的结构易损性模型,以考虑诱发地震地震动特性的影响。

    3) 连续两次诱发地震作用下的易损性分析结果表明,重复诱发地震作用会导致结构承载能力降低,结构在各破坏状态下的超越概率相对单次地震的地震动作用显著增加。

    建立考虑诱发地震影响的典型结构易损性模型,是页岩气开采区地震灾害风险评估和防控的关键内容,对我国推进页岩气大规模开发、解决能源周期性不足的问题具有十分现实的意义。但目前我国页岩气开采区强震记录数量有限,随着诱发地震强震记录数量的增加,诱发地震地震动特性及其对我国典型建筑结构影响方面的研究将会有更深入的进展。

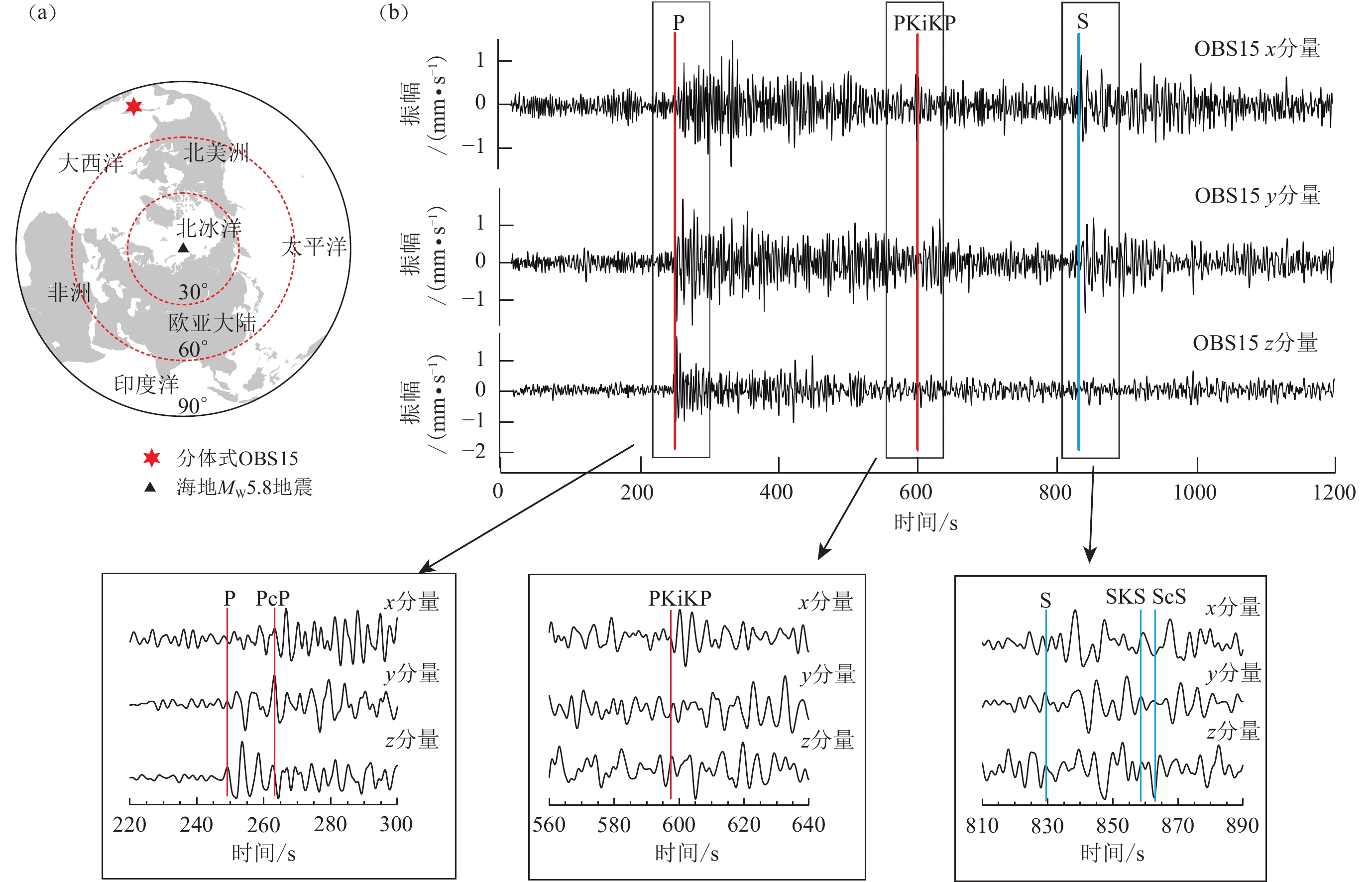

  • 图  6   加克洋中脊分体式OBS15台站位置(a)及其记录的2021年海地MW5.8地震波形(b)

    波形图使用0.04—0.2 Hz带通滤波进行了处理。下行小图分别为可识别的初至P波和PcP,PKiKP,初至S波和SKS和ScS的放大图。使用IASP91模型对上述地震波到时进行了预测,见图中红色和蓝色实线

    Figure  6.   The location of the seismometer-detached OBS15 station in the Gakkel Ridge (a) and the waveforms (b) of the Haiti MW5.8 earthquake in 2021

    The waveforms were processed with bandpass filtering (0.04−0.2 Hz). The figures in the second row are enlarged views of identifiable P-wave and PcP,PKiKP,S-wave and SKS,ScS waveforms,respectively. The arrival times of these seismic waves were predicted using the IASP91 model,indicated by the red and blue solid lines in the figures

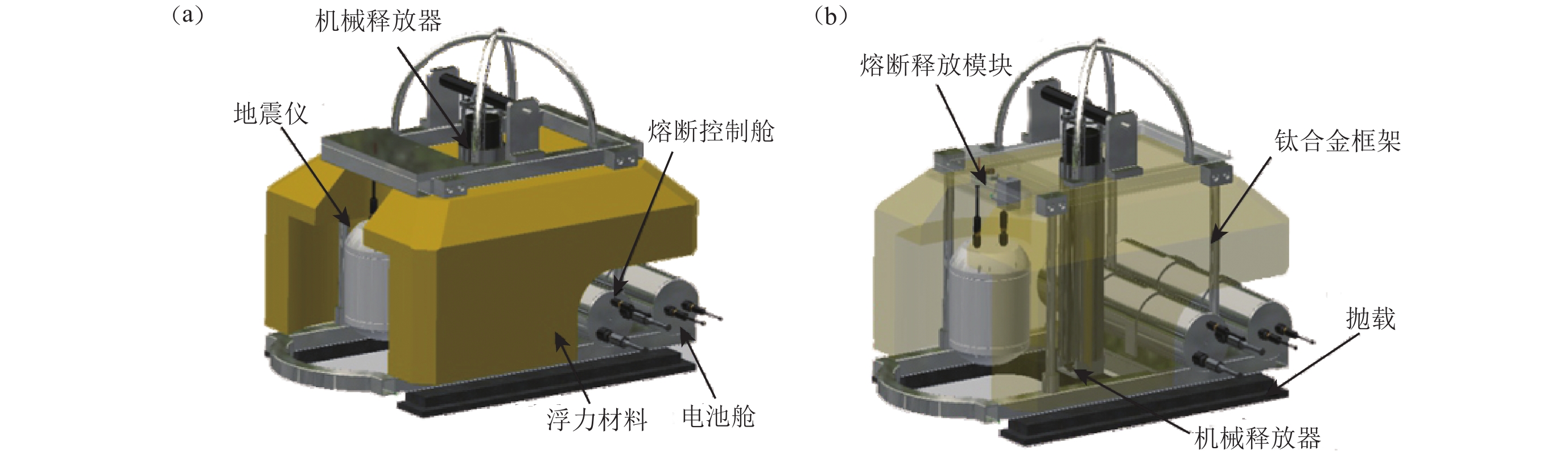

    图  1   新型宽频带分体式海底地震仪的结构模型

    (a) 外视图;(b) 内部透视图

    Figure  1.   The structural models of the broadband seismometer-detached ocean bottom seismograph

    (a) The external view;(b) The internal perspective view

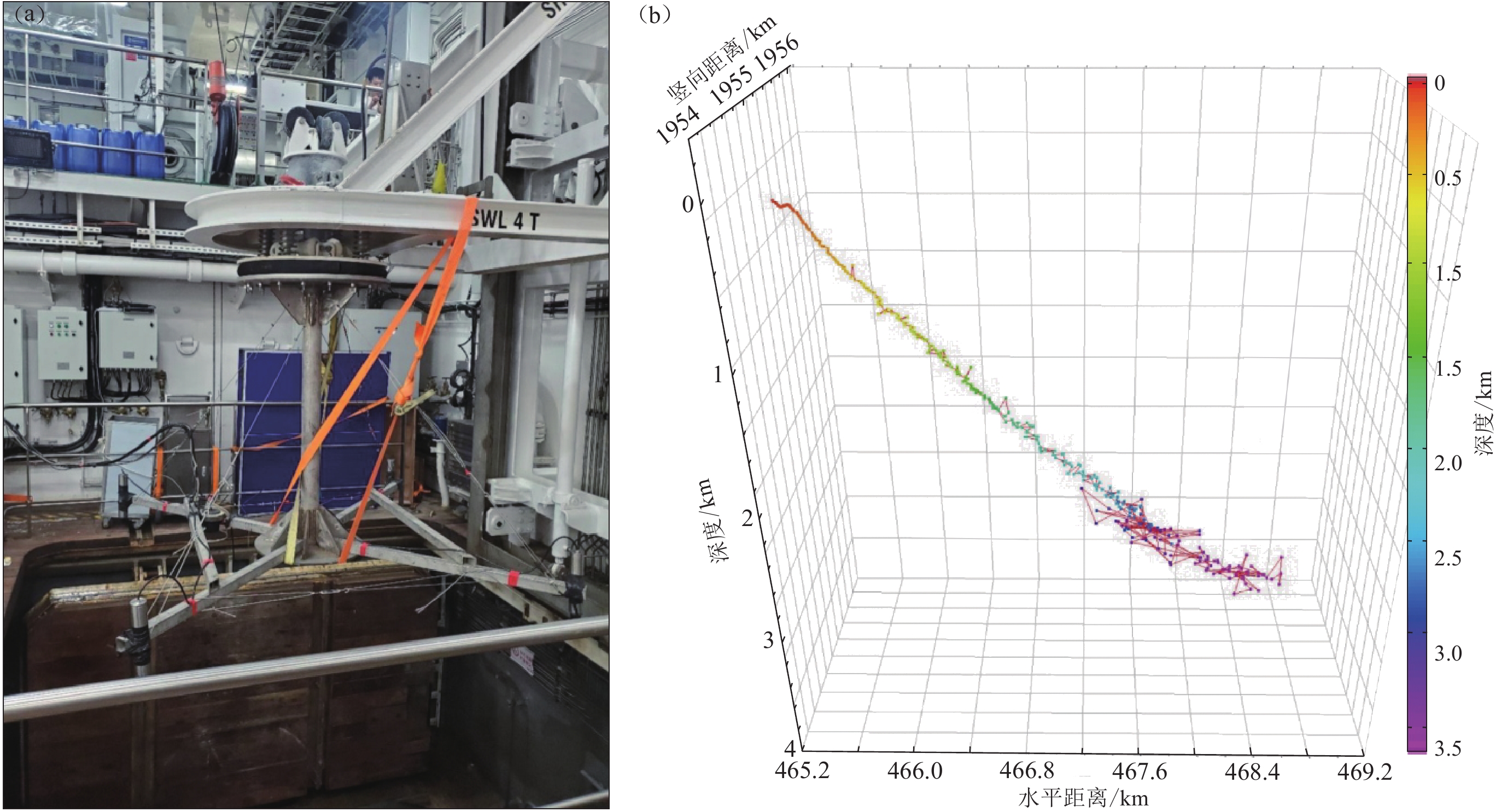

    图  2   短基线阵及其定位结果

    (a) 短基线阵定位系统在雪龙2号月池车间的安装情况;(b) 短基线阵试验定位三维结果

    Figure  2.   The short baseline array and its positioning results

    (a) The installation of the short baseline array positioning system in the moon pool workshop of the Xuelong-2;(b) The three-dimensional results of the short baseline array experimental positioning

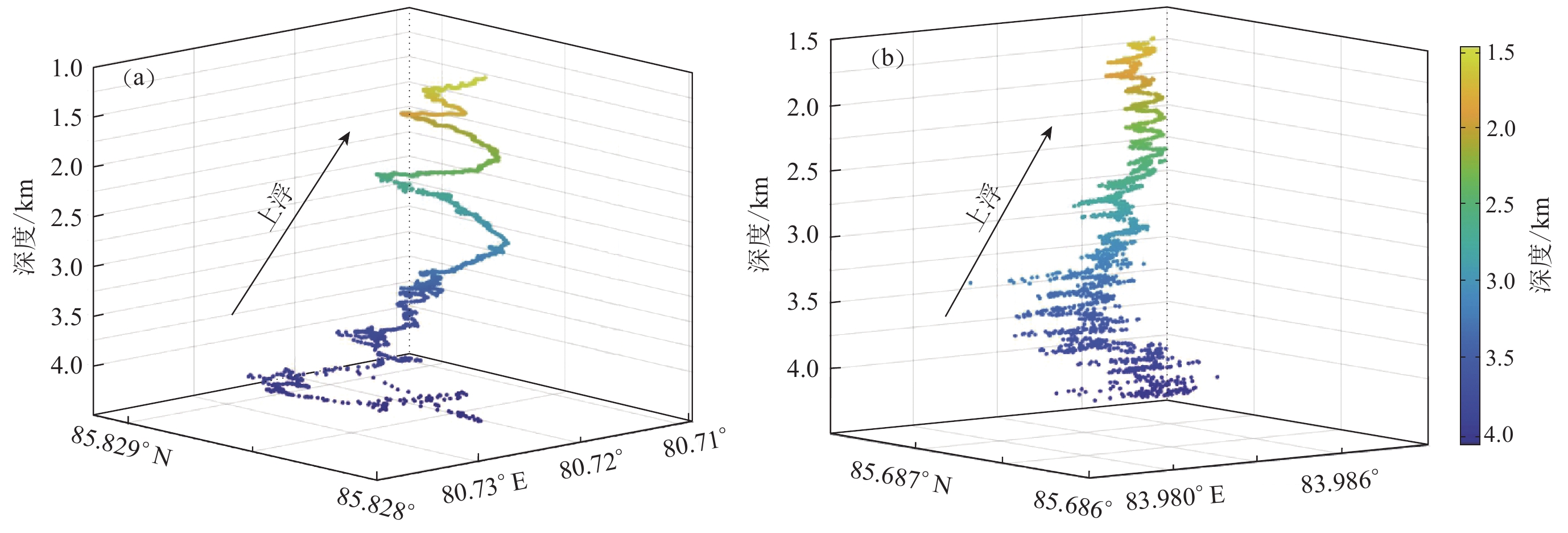

    图  3   超短基线在北冰洋加克洋中脊分体式海底地震仪回收过程中的三维实时定位结果

    图(a)和(b)分别为分体式海底地震仪OBS9和OBS15的上浮轨迹

    Figure  3.   The three-dimensional real-time positioning results during the recovery process of the seismometer-detached OBS with ultra-short baseline in the Gakkel Ridge of Arctic Ocean

    Figs. (a) and (b) show the ascending tracks of the seismometer-detached OBS9 and OBS15

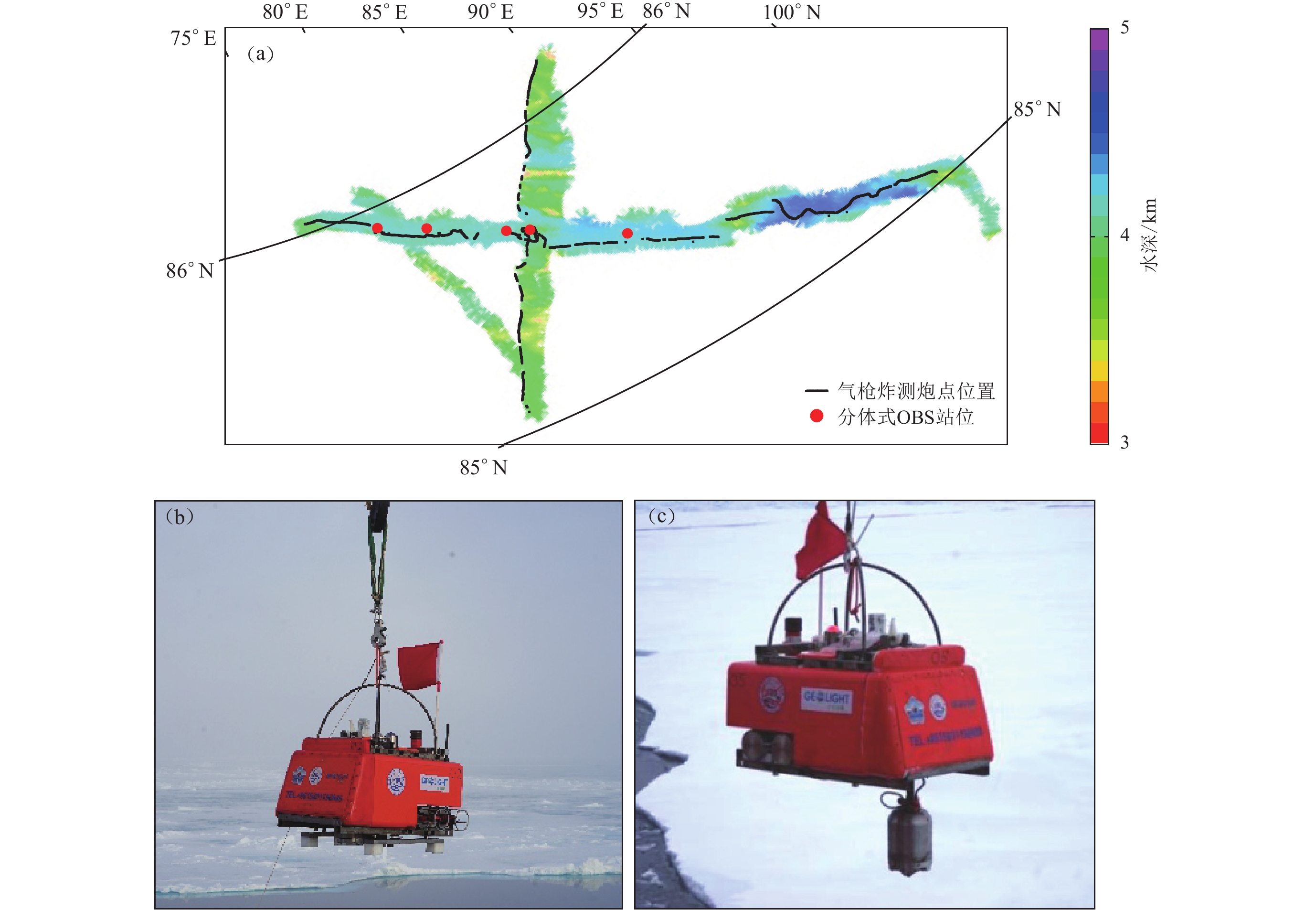

    图  4   分体式海底地震仪及其在加克洋中脊的试验

    (a) 2021年中国第十二次北极科学考察布设和回收的海底地震仪位置和炸测位置示意图;(b) 分体式海底地震仪的投放;(c) 分体式海底地震仪的回收

    Figure  4.   The seismometer-detached OBS and its experiments in the Gakkel Ridge

    (a) The locations of OBS deployment and recovery and air-gun shooting lines during the Chinese 12th Arctic scientific expedition in 2021;(b) Deployment of the seismometer-detached OBS;(c) Recovery of the seismometer-detached OBS

    图  5   (a) 分体式OBS3垂直分量记录于2021年8月10—24日在北极加克洋中脊的功率谱密度分布;(b,c) 分体式OBS3两个水平分量的功率谱密度分布

    图中彩色细实线代表每小时记录对应的功率谱密度,不同颜色代表分布在不同能量区间的概率,黑色粗实线为平均值,灰色粗实线为Peterson (1993)提出的全球背景噪音模型参考线

    Figure  5.   (a) The vertical component records of the OBS3 in the Gakkel Ridge of the Arctic collected from August 10 to 24,2021 presented in terms of power spectral density probability density functions;(b,c) The power spectral density distribution of the two horizontal components of the OBS3

    In the figures color thin solid lines represent the power spectral density corresponding to each hourly record,with different colors indicating probability distribution in various energy ranges. The thick solid black line represents the average,and the thick solid gray lines serve as the reference lines for the global ambient noise models proposed by Peterson (1993

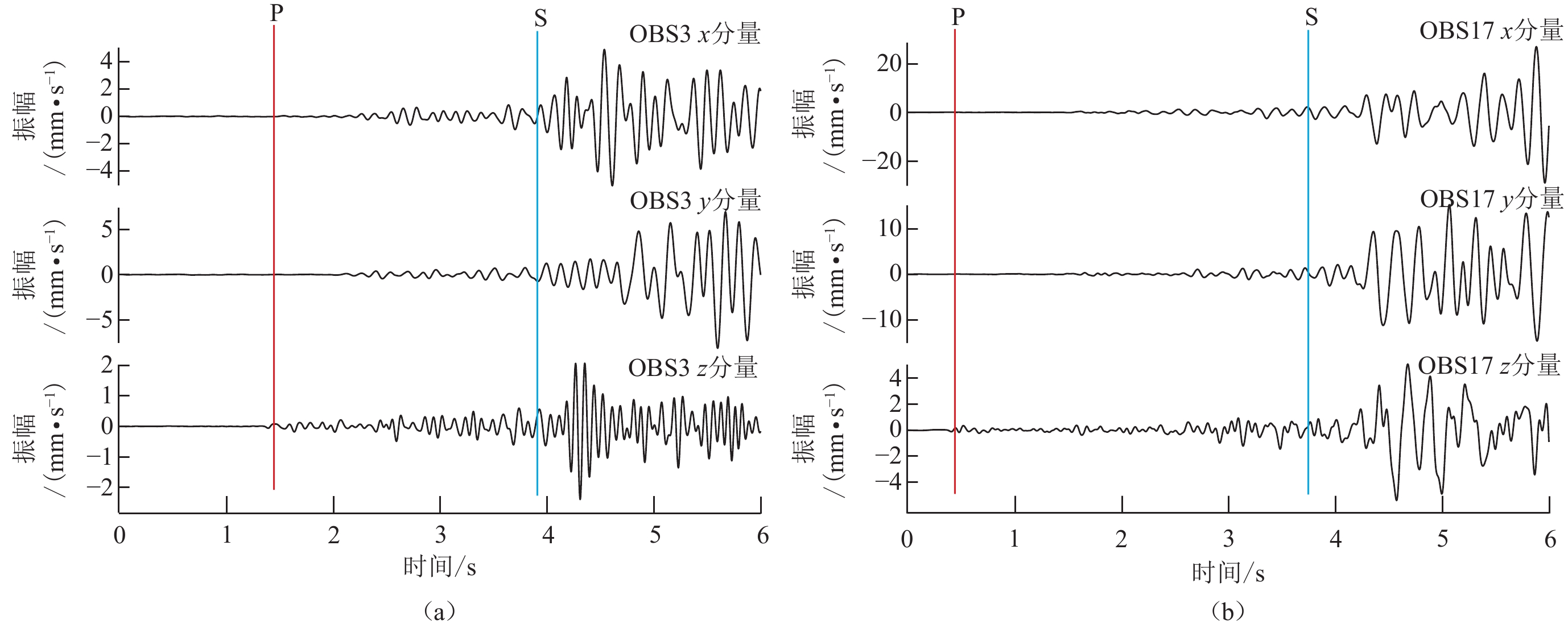

    图  7   加克洋中脊分体式OBS3 (a)和OBS17 (b)台站记录的微震信息

    图中波形已经带通滤波(3—12 Hz)处理,红色和蓝色实线标注了使用IASP91模型对上述地震波到时进行的预测

    Figure  7.   Microseismic information recorded by the seismometer-detached OBS3 (a) and OBS17 (b) along the Gakkel Ridge

    The waveforms have been bandpass filtered (3−12 Hz). The arrival times of the seismic waves were predicted using the IASP91 model,indicated by the red and blue solid lines

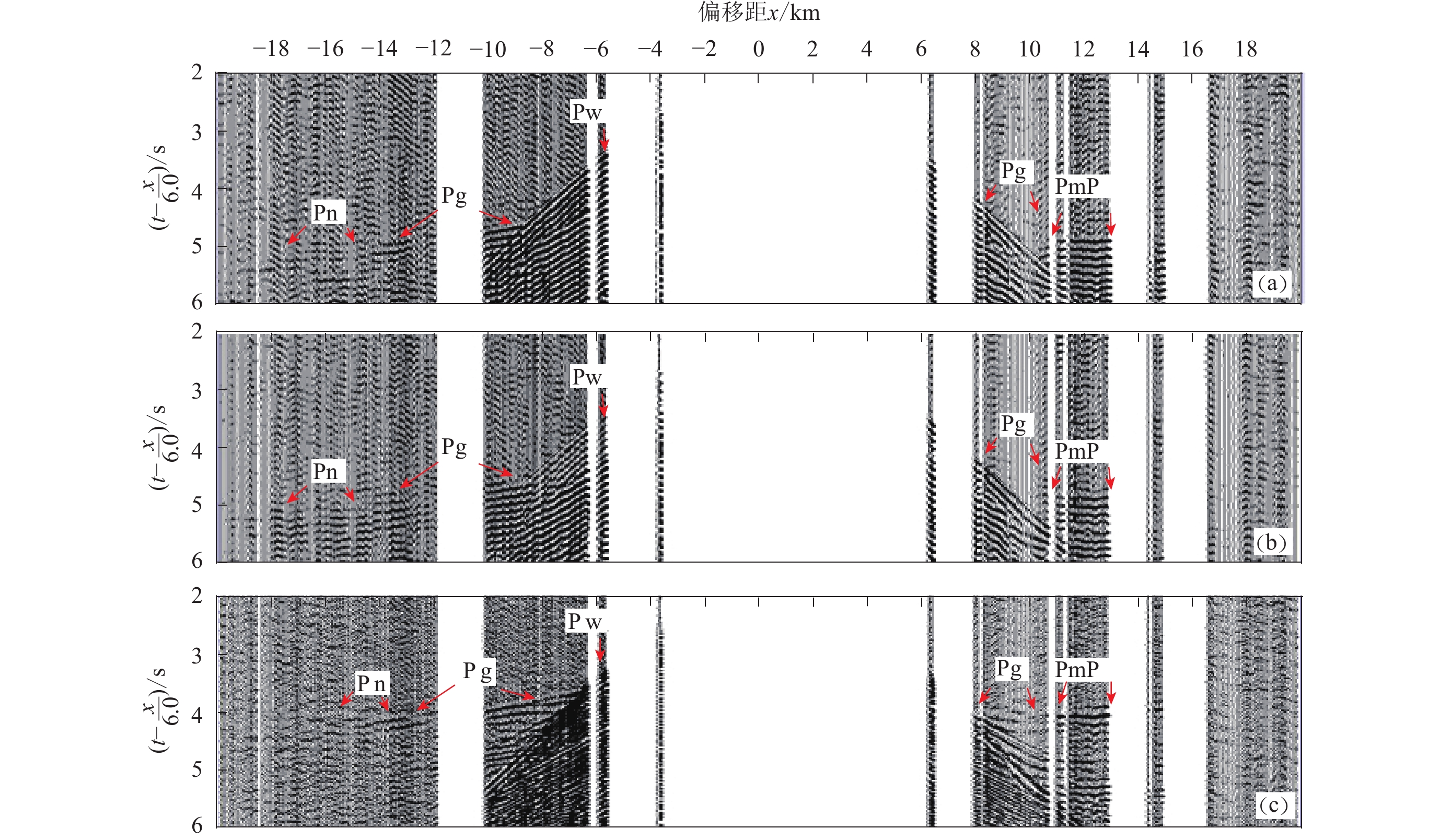

    图  8   布放在加克洋中脊的分体式OBS3台站主动源三分量地震记录的折合时间剖面(折合速度为6.0 km/s)

    (a) x分量;(b) y分量;(c) z分量

    Figure  8.   Active source three-component seismic record sections with reduced time of the OBS3deployed along the Gakkel Ridge of Arctic Ocean (The reduced velocity is 6.0 km/s)

    (a) x component;(b) y component;(c) z component

    图  9   布放在加克洋中脊的OBS15台站主动源三分量地震记录折合时间剖面

    (a) x分量;(b) y分量;(c) z分量

    Figure  9.   Active source three-component seismic record sections with reduced time of the OBS15 deployed along the Gakkel Ridge of Arctic Ocean

    (a) x component;(b) y component;(c) z component

    表  1   宽频带分体式海底地震仪组件及其技术参数

    Table  1   Components and technical parameters of the broadband seismometer-detached OBS

    地震计频带范围 60 s—50 Hz 标定信号DAC 16位
    地震计满量程 10 mm/s (单峰值) 标定信号类型 脉冲,正弦波可选,参数可设置
    地震计灵敏度 2000 V/(m/s)(双端) 标定信号启动方式 定时、指令
    ADC 24位 数据记录 32 GB×3
    数据采样率 50 sps,100 sps,200 sps,500 sps,
    每个采集通道可单独设定采样率
    电子罗盘动态精度 ±1o
    数字滤波器 线性相位FIR,最小相位FIR 电子罗盘调平范围 45°
    数据采集动态范围 >135 dB 数据通信接口 LAN以太网
    授时 GPS,北斗 数据通信协议 TCP,IP
    守时 芯片级原子钟 最大工作水深 6 km
    水听器频带范围 10—2000 Hz 工作时间 6个月—1年
    方位角精度 俯仰范围±30°±0.1°,±(30°—45°)±0.2° 磁场测量精度 10 nT
    下载: 导出CSV

    表  2   短基线阵和超短基线信标的技术参数

    Table  2   The technical parameters of short baseline arrays and ultra-short baseline beacons

    深度级频段收发机波束角测距精度
    短基线阵4000 m12 kHz半指向性100 m
    超短基线信标7000 m19—34 kHz半指向性<15 mm
    下载: 导出CSV
  • 郝天珧,游庆瑜. 2011. 国产海底地震仪研制现状及其在海底结构探测中的应用[J]. 地球物理学报,54(12):3352–3361.

    Hao T Y,You Q Y. 2011. Progress of homemade OBS and its application on ocean bottom structure survey[J]. Chinese Journal of Geophysics,54(12):3352–3361 (in Chinese).

    郝天珧,游庆瑜,王元,郭永刚,丘学林,黄松,徐亚,赵春蕾,张妍,徐锡强. 2022. 国产海底地震探测装备技术研发与应用[J]. 科学技术与工程,22(34):15020–15027.

    Hao T Y,You Q Y,Wang Y,Guo Y G,Qiu X L,Huang S,Xu Y,Zhao C L,Zhang Y,Xu X Q. 2022. Development technology and its application of Chinese ocean bottom seismometer[J]. Science Technology and Engineering,22(34):15020–15027 (in Chinese).

    李江,庄灿涛,薛兵,朱小毅,陈阳,朱杰,彭朝勇,叶鹏,梁鸿森,刘明辉,杨桂存,周银兴,林湛,李建飞. 2010. 宽频带海底地震仪的研制[J]. 地震学报,32(5):610–618.

    Li J,Zhuang C T,Xue B,Zhu X Y,Chen Y,Zhu J,Peng C Y,Ye P,Liang H S,Liu M H,Yang G C,Zhou Y X,Lin Z,Li J F. 2010. Development of broadband ocean bottom seismograph (OBS)[J]. Acta Seismologica Sinica,32(5):610–618 (in Chinese).

    李守军,包更生,吴水根. 2005. 水声定位技术的发展现状与展望[J]. 海洋技术,24(1):130–135.

    Li S J,Bao G S,Wu S G. 2005. A practical overview and prospect of acoustic positioning technology[J]. Journal of Ocean Technology,24(1):130–135 (in Chinese).

    刘丹,杨挺,黎伯孟,吴越楚,王宜志,黄信锋,杜浩然,王建,陈永顺. 2022. 分体式宽频带海底地震仪的研制、测试和数据质量分析[J]. 地球物理学报,65(7):2560–2572.

    Liu D,Yang T,Li B M,Wu Y C,Wang Y Z,Huang X F,Du H R,Wang J,Chen Y S. 2022. Seismometer-detached broadband ocean bottom seismograph (OBS):Development,test,and data quality analysis[J]. Chinese Journal of Geophysics,65(7):2560–2572 (in Chinese).

    牛雄伟,王力,丁巍伟,黄松华,孔凡圣,冯海泓,谭平川,史淼奇,傅建华,陈尚国. 2022. 一种适用于冰区的短基线承载结构:中国,202111670786.4[P]. [2022−06−21]. https://pss-system.cponline.cnipa.gov.cn/documents/detail?prevPageTit=changgui.

    Niu X W,Wang L,Ding W W,Huang S H,Kong F S,Feng H H,Tan P C,Shi M Q,Fu J H,Chen S G. 2022. Short base line bearing structure suitable for ice region:CN,202111670786.4[P]. [2022−06−21] https://pss-system.cponline.cnipa.gov.cn/documents/detail?prevPageTit=changgui (in Chinese).

    阮爱国,李家彪,冯占英,吴振利. 2004. 海底地震仪及其国内外发展现状[J]. 东海海洋,22(2):19–27.

    Ruan A G,Li J B,Feng Z Y,Wu Z L. 2004. Ocean bottom seismometer and its development in the world[J]. Donghai Marine Science,22(2):19–27 (in Chinese).

    阮爱国,牛雄伟,吴振利,吴招才,薛彬. 2009. 潮汕坳陷中生代沉积的折射波2D速度结构和密度[J]. 高校地质学报,15(4):522–528.

    Ruan A G,Niu X W,Wu Z L,Wu Z C,Xue B. 2009. The 2D velocity and density structure of the Mesozoic sediments in the Chaoshan depression[J]. Geological Journal of China Universities,15(4):522–528 (in Chinese).

    阮爱国,李家彪,陈永顺,丘学林,吴振利,赵明辉,牛雄伟,王春龙,王显光. 2010. 国产I-4C型OBS在西南印度洋中脊的试验[J]. 地球物理学报,53(4):1015–1018.

    Ruan A G,Li J B,Chen Y S,Qiu X L,Wu Z L,Zhao M H,Niu X W,Wang C L,Wang X G. 2010. The experiment of broad band I-4C type OBS in the Southwest India ridge[J]. Chinese Journal of Geophysics,53(4):1015–1018 (in Chinese).

    游庆瑜,刘福田,冉崇荣,王广福. 2003. 高频微功耗海底地震仪研制[J]. 地球物理学进展,18(1):173–176.

    You Q Y,Liu F T,Ran C R,Wang G F. 2003. High frequency micro-power ocean bottom seismograph[J]. Progress in Geophysics,18(1):173–176 (in Chinese).

    张同伟,王向鑫,唐嘉陵,秦升杰. 2018. 深海超短基线定位系统现状及展望[J]. 舰船电子工程,38(10):1–6. doi: 10.3969/j.issn.1672-9730.2018.10.001

    Zhang T W,Wang X X,Tang J L,Qin S J. 2018. Technical status and development trend of long range USBL[J]. Ship Electronic Engineering,38(10):1–6 (in Chinese).

    Beyreuther M,Barsch R,Krischer L,Megies T,Behr Y,Wassermann J. 2010. ObsPy:A Python toolbox for seismology[J]. Seismol Res Lett,81(3):530–533. doi: 10.1785/gssrl.81.3.530

    Christeson G L,Goff J A,Reece R S. 2019. Synthesis of oceanic crustal structure from two-dimensional seismic profiles[J]. Rev Geophys,57(2):504–529. doi: 10.1029/2019RG000641

    Crawford W C,Webb S C. 2000. Identifying and removing tilt noise from low-frequency (<0.1 Hz) seafloor vertical seismic data[J]. Bull Seismol Soc Am,90(4):952–963. doi: 10.1785/0119990121

    Ding W W,Niu X W,Zhang T,Chen S G,Liu S H,Tan P C,Kong F S,Jin Z D,Huang S H,Wei C H,Fang Y X,Sun Q C,Li J B. 2022. Submarine wide-angle seismic experiments in the high Arctic:The JASMInE expedition in the slowest spreading Gakkel Ridge[J]. Geosyst Geoenviron,1(3):100076. doi: 10.1016/j.geogeo.2022.100076

    Jokat W,Schmidt-Aursch M C. 2007. Geophysical characteristics of the ultraslow spreading Gakkel Ridge,Arctic Ocean[J]. Geophys J Int,168(3):983–998. doi: 10.1111/j.1365-246X.2006.03278.x

    Jokat W,Ritzmann O,Schmidt-Aursch M C,Drachev S,Gauger S,Snow J. 2003. Geophysical evidence for reduced melt production on the Arctic ultraslow Gakkel mid-ocean ridge[J]. Nature,423(6943):962–965. doi: 10.1038/nature01706

    Kennett B L N,Engdahl E R. 1991. Traveltimes for global earthquake location and phase identification[J]. Geophys J Int,105(2):429–465. doi: 10.1111/j.1365-246X.1991.tb06724.x

    Korger E I M,Schlindwein V. 2014. Seismicity and structure of the 85°E volcanic complex at the ultraslow spreading Gakkel Ridge from local earthquake tomography[J]. Geophys J Int,196(1):539–551. doi: 10.1093/gji/ggt390

    Koulakov I,Schlindwein V,Liu M Q,Gerya T,Jakovlev A,Ivanov A. 2022. Low-degree mantle melting controls the deep seismicity and explosive volcanism of the Gakkel Ridge[J]. Nat Commun,13(1):3122. doi: 10.1038/s41467-022-30797-4

    Longuet-Higgins M S. 1950. A theory of the origin of microseisms[J]. Philos Trans Roy Soc A:Math Phys Eng Sci,243(857):1–35.

    McGuire J J,Collins J A,Gouédard P,Roland E,Lizarralde D,Boettcher M S,Behn M D,van der Hilst R D. 2012. Variations in earthquake rupture properties along the Gofar transform fault,East Pacific Rise[J]. Nat Geosci,5(5):336–341. doi: 10.1038/ngeo1454

    McNamara D E,Buland R P. 2004. Ambient noise levels in the continental United States[J]. Bull Seismol Soc Am,94(4):1517–1527. doi: 10.1785/012003001

    Minshull T A,Muller M R,White R S. 2006. Crustal structure of the Southwest Indian Ridge at 66°E:Seismic constraints[J]. Geophys J Int,166(1):135–147. doi: 10.1111/j.1365-246X.2006.03001.x

    Mosher D C,Chapman C B,Shimeld J,Jackson H R,Chian D,Verhoef J,Hutchinson D,Lebedeva-Ivanova N,Pederson R. 2013. High Arctic marine geophysical data acquisition[J]. Leading Edge,32(5):524–536. doi: 10.1190/tle32050524.1

    Niu X W,Minshull T A,Li J B,Ruan A G,Wu Z L,Wei X D,Wang W,Li Y,Bayrakci G,Dong C Z,Ding W W,Fang Y X,Zhang J. 2023. Shear wave velocity structure and crustal lithology beneath the ultraslow spreading Southwest Indian Ridge at 50°E[J]. Geophys J Int,233(2):1416–1428. doi: 10.1093/gji/ggac516

    Peterson J R. 1993. Observations and Modeling of Seismic Background Noise[R]. Albuquerque:U.S. Geol. Surv.:93−322.

    Rekant P V,Gusev E A. 2016. Sediments in the Gakkel Ridge rift zone (Arctic Ocean):Structure and history[J]. Russ Geol Geophys,57(9):1283–1287. doi: 10.1016/j.rgg.2016.08.013

    Schlindwein V,Müller C,Jokat W. 2007. Microseismicity of the ultraslow-spreading Gakkel Ridge,Arctic Ocean:A pilot study[J]. Geophys J Int,169(1):100–112. doi: 10.1111/j.1365-246X.2006.03308.x

    Seher T,Crawford W C,Singh S C,Cannat M,Combier V,Dusunur D. 2010. Crustal velocity structure of the Lucky Strike segment of the Mid-Atlantic Ridge at 37°N from seismic refraction measurements[J]. J Geophys Res:Solid Earth,115(B3):B03103.

    Stähler S C,Sigloch K,Hosseini K,Crawford W C,Barruol G,Schmidt-Aursch M C,Tsekhmistrenko M,Scholz J R,Mazzullo A,Deen M. 2016. Performance report of the RHUM-RUM ocean bottom seismometer network around La Réunion,western Indian Ocean[J]. Adv Geosci,41:43–63. doi: 10.5194/adgeo-41-43-2016

    Sutton G H,Duennebier F K. 1987. Optimum design of ocean bottom seismometers[J]. Mar Geophys Res,9(1):47–65. doi: 10.1007/BF00338250

    USGS. 2021. Earthquake lists,maps,and statistics[EB/OL]. [2023−08−18]. https://www.usgs.gov/natural-hazards/earthquake-hazards/lists-maps-and-statistics.

    Webb S C. 1988. Long-period acoustic and seismic measurements and ocean floor currents[J]. IEEE J Oceanic Eng,13(4):263–270. doi: 10.1109/48.9239

  • 期刊类型引用(1)

    1. 马明星,李剑,臧丹枫,曾援,郭陈莉. 基于衰减层析的地下浅层震动能量场重建方法. 电子测量技术. 2024(03): 42-47 . 百度学术

    其他类型引用(1)

图(9)  /  表(2)
计量
  • 文章访问数:  101
  • HTML全文浏览量:  9
  • PDF下载量:  36
  • 被引次数: 2
出版历程
  • 收稿日期:  2023-11-30
  • 修回日期:  2024-02-19
  • 网络出版日期:  2025-01-22
  • 刊出日期:  2025-03-27

目录

/

返回文章
返回
