高密度电阻率法在西藏日喀则地区隐伏断裂探测中的应用

高武平, 陈宇坤, 张文朋, 闫成国, 杨绪连, 杨菲

高武平, 陈宇坤, 张文朋, 闫成国, 杨绪连, 杨菲. 2016: 高密度电阻率法在西藏日喀则地区隐伏断裂探测中的应用. 地震学报, 38(5): 776-784.
引用本文: 高武平, 陈宇坤, 张文朋, 闫成国, 杨绪连, 杨菲. 2016: 高密度电阻率法在西藏日喀则地区隐伏断裂探测中的应用. 地震学报, 38(5): 776-784.
Gao Wuping, Chen Yukun, Zhang Wenpeng, Yan Chengguo, Yang Xulian, Yang Fei. 2016: Application of high density resistivity method to exploring buried faults in Xigazê region of Xizang. Acta Seismologica Sinica, 38(5): 776-784.
Citation: Gao Wuping, Chen Yukun, Zhang Wenpeng, Yan Chengguo, Yang Xulian, Yang Fei. 2016: Application of high density resistivity method to exploring buried faults in Xigazê region of Xizang. Acta Seismologica Sinica, 38(5): 776-784.

高密度电阻率法在西藏日喀则地区隐伏断裂探测中的应用

基金项目:

“日喀则市活动断层探测与地震危险性评价”项目(藏震函[2011]77号)资助

“日喀则市活动断层探测与地震危险性评价”项目 藏震函[2011]77号

详细信息
    通讯作者:

    高武平: e-mail: gwpp123@126.com

  • 中图分类号: P631.3+22

Application of high density resistivity method to exploring buried faults in Xigazê region of Xizang

  • 摘要: 以跨谢通门—青都断裂的两条高密度电阻率法探测资料为基础, 对高密度电阻率法在青藏高原日喀则地区隐伏断裂探测中的首次应用进行了详细介绍. 所获取的高密度电法剖面显示, 该断层的电阻率异常特征清晰, 其上断点埋深可达20—30 m, 较浅层人工地震探测所揭示的断层上断点埋深(50 m)更浅, 结合地层年代资料推测该断裂的最新活动时期为早—中更新世. 探测结果表明: 高密度电法剖面清晰地显示了断层在浅部松散层的延伸, 适用于日喀则地区的隐伏断层探测; 相较于浅层人工地震探测, 该方法对浅部松散层的探测具有明显优势, 一定条件下能够更好地揭示断层上断点埋深, 可与浅层人工地震探测形成互补. 需要指出的是, 在应用中需重视测区水文地质及地层发育情况对探测的影响.
    Abstract: This paper introduces the application of high density resistivity method in detail to the exploration of buried faults in Xigazê region of Xizang for the first time. The resistivity imaging from the survey lines across the Xietongmen-Qingdu fault show that the resistivity anomalies of the faults are clear and the fault up-breakpoint may reach 20--30 meters which is more shallow than the result that the up-break point reaches 50 meters from seismic reflection survey. Combined with the strata age data, the latest active time of the faults is deduced to be Early-Middle Pleistocene. In addition, the extension of the fault in shallow loose bed is displayed clearly in resistivity imaging, and thus the high density resistivity method is suitable for detecting of buried faults in Xigazê region. Comparing with shallow seismic exploration, the high density resistivity method has an advantage in exploration of shallow loose deposits and displays more effectively fault up-breakpoint on some conditions. However, it is necessary to fully aware of influence of hydrogeololgy and stratigraphic development on exploration in surveyed area.
  • 特别感谢审稿人对本文提出的宝贵意见与建议.
  • 图  1   研究区地质构造概图

    DF1为雅江北测线,DF2为塔丁测线

    Figure  1.   Outline map of geological structure in the studied area

    DF1 is north Yajiang survey line, and DF2 is Tading sruvey line

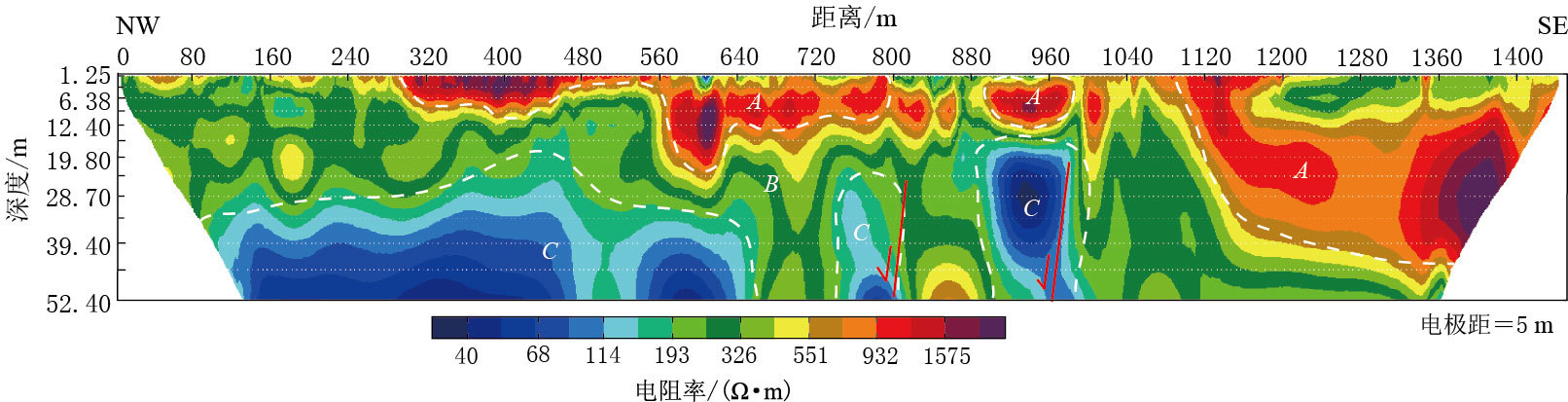

    图  2   雅江北测线DF1高密度电法剖面

    虚线为高、 中、 低电阻率区的分界线,下同

    Figure  2.   Resistivity section of northern Yajiang survey line DF1

    The dashed lines delineate the areas with low,middle,and high resistivity,the same below

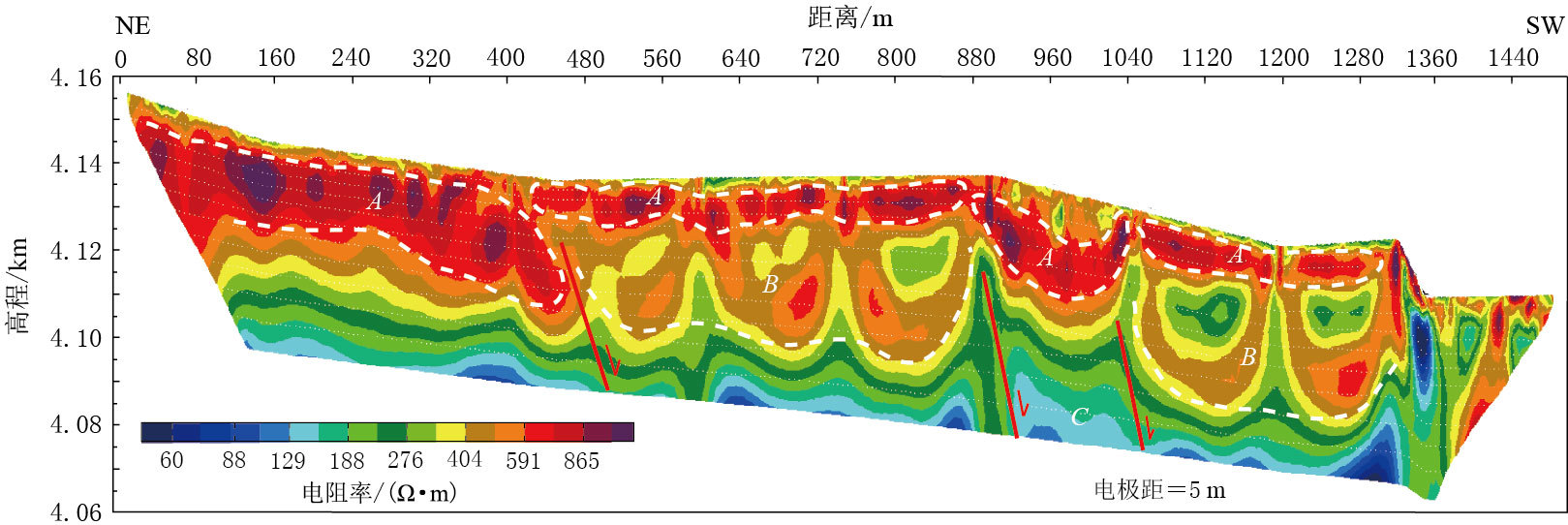

    图  3   塔丁测线DF2高密度电法剖面

    Figure  3.   Resistivity section of Tading survey line DF2

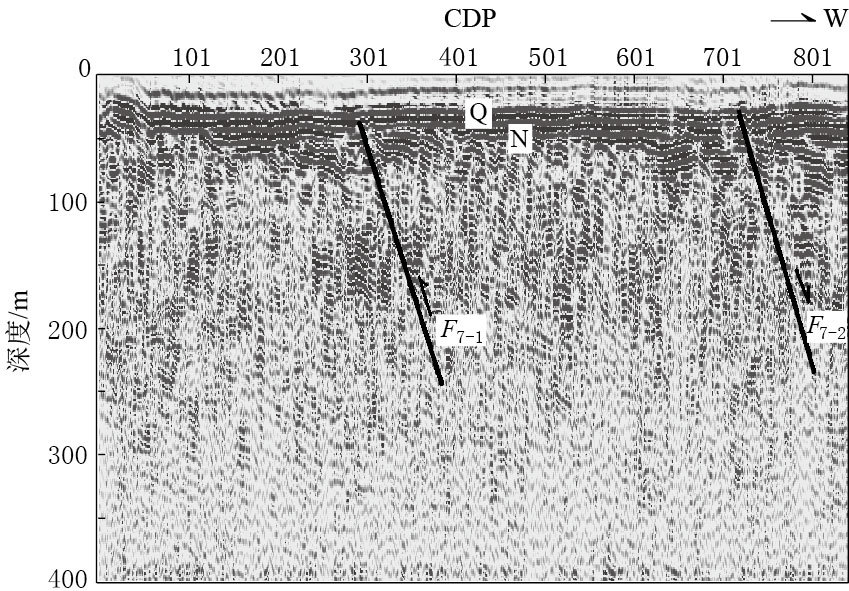

    图  4   浅层人工地震测线Rkz07剖面图

    Figure  4.   Shallow seismic reflection section of the survey line Rkz07
