基于跨断层测量的鲜水河断裂带现今活动特征及其与强震关系研究

李腊月, 季灵运, 李玉江, 占伟

李腊月, 季灵运, 李玉江, 占伟. 2016: 基于跨断层测量的鲜水河断裂带现今活动特征及其与强震关系研究. 地震学报, 38(5): 739-750.
引用本文: 李腊月, 季灵运, 李玉江, 占伟. 2016: 基于跨断层测量的鲜水河断裂带现今活动特征及其与强震关系研究. 地震学报, 38(5): 739-750.
Li Layue, Ji Lingyun, Li Yujiang, Zhan Wei. 2016: Current activity characteristics of Xianshuihe fault zone and its relationship with strong earthquakes based on fault-crossing measurements. Acta Seismologica Sinica, 38(5): 739-750.
Citation: Li Layue, Ji Lingyun, Li Yujiang, Zhan Wei. 2016: Current activity characteristics of Xianshuihe fault zone and its relationship with strong earthquakes based on fault-crossing measurements. Acta Seismologica Sinica, 38(5): 739-750.

基于跨断层测量的鲜水河断裂带现今活动特征及其与强震关系研究

基金项目:

中国地震局震情跟踪课题 2015010203,2016010207

和中国地震局监测、预测、科研三结合课题共同资助 153304

科技部基础性工作专项(2015FY210400)、中国地震局震情跟踪课题(2015010203,2016010207)和中国地震局监测、预测、科研三结合课题(153304)共同资助

科技部基础性工作专项 2015FY210400

详细信息
    通讯作者:

    李玉江: e-mail: toleeyj@126.com

  • 中图分类号: P315.72+5

Current activity characteristics of Xianshuihe fault zone and its relationship with strong earthquakes based on fault-crossing measurements

  • 摘要: 利用鲜水河断裂带30多年的跨断层观测资料,基于断层三维运动模型,采用主成分分析法,综合研究了鲜水河断裂带现今运动学特征及其与周边几次强震的关系.研究结果表明:鲜水河断裂带在观测期内(1982—2015年)以左旋走滑运动为主,各段落的活动速率都不相同,其中炉霍段、道孚段的活动速率大于乾宁段,乾宁段趋于闭锁状态;断层活动参数时间序列曲线具有较明显的线性运动特征,但在个别时段内会出现偏离直线的加速或转折变化.此外,断层三维活动参数的主成分分析结果显示,断层水平走滑量和水平张压量的主成分和综合指标在2001年、2006年、2010年和2012年分别出现趋势性转折和破趋势的异常变化,断层垂直升降量第一主成分在2013年也出现了相对小幅转折变化,这些异常变化可能与2001年昆仑山口西MS8.1、2008年汶川MS8.0、2010年玉树MS7.1和2013年芦山MS7.0等地震有关,属于这几次大震的前兆、同震或震后效应.
    Abstract: This paper employed the fault-crossing deformation data about three decades (1982—2015) along the Xianshuihe fault zone to analyze fault activity characteristics and its relationship with adjacent strong earthquakes by using the three-dimensional movement model of fault and principal component analysis method. The preliminary results show that the Xianshuihe fault zone exhibits the left-lateral strike-slip features during the observation period (1982—2015), and the fault activity is different along each segments, the activity rates of Luhuo and Daofu segments are greater than that of Qianning segment, the Qianning segment tends to be locked. The series of fault activity parameters have obviously linear movement characteristic in the observation period, but in individual period, they show accelerating or turning deviating from the straight line. In addition, the principal component analyses of fault activity parameters show that the principal components and composite indicator of the fault horizontal strike-slip cumulant and horizontal tensional or compressive cumulant change original trend or break the trend respectively in the years 2001, 2006, 2010 and 2012, and the first principal component of fault vertical activity cumulant changes a little in 2013. These anomalies may be related with the 2001 western Kunlunshan Pass MS8.1, 2008 Wenchuan MS8.0, 2010 Yushu MS7.1 and 2013 Lushan MS7.0 earthquakes, belonging to the precursor, coseismic or postseismic effects of these strong earthquakes, respectively.

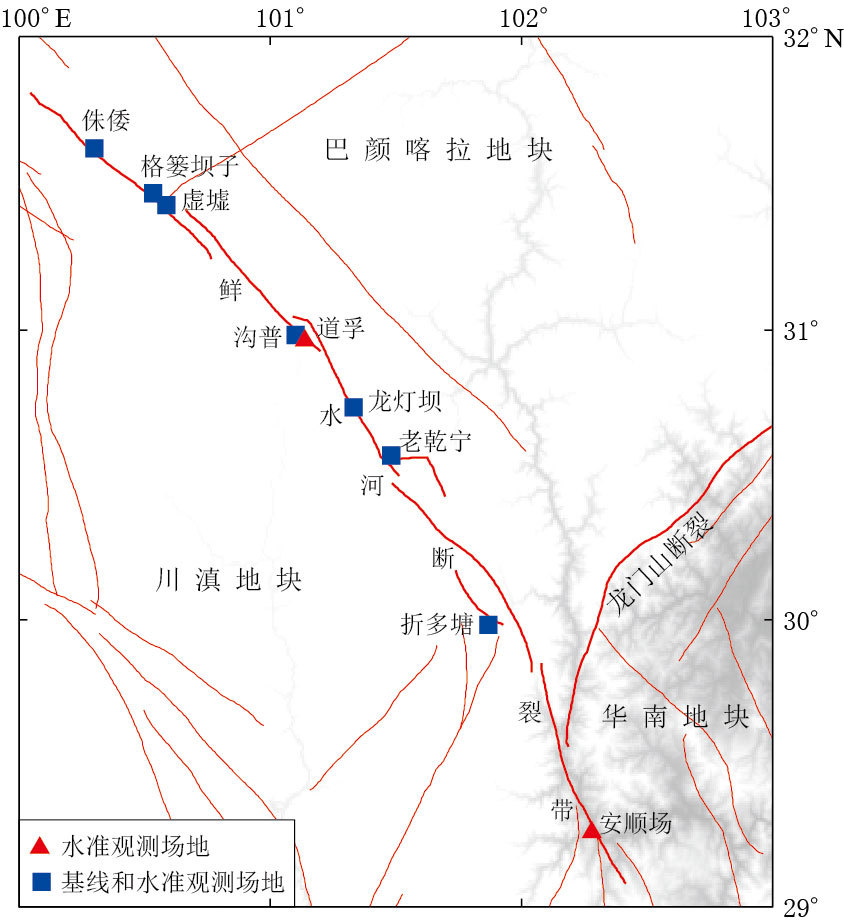

  • 图  1   鲜水河断裂带跨断层场地分布图

    Figure  1.   Distribution of fault-crossing measuring sites along the Xianshuihe fault zone

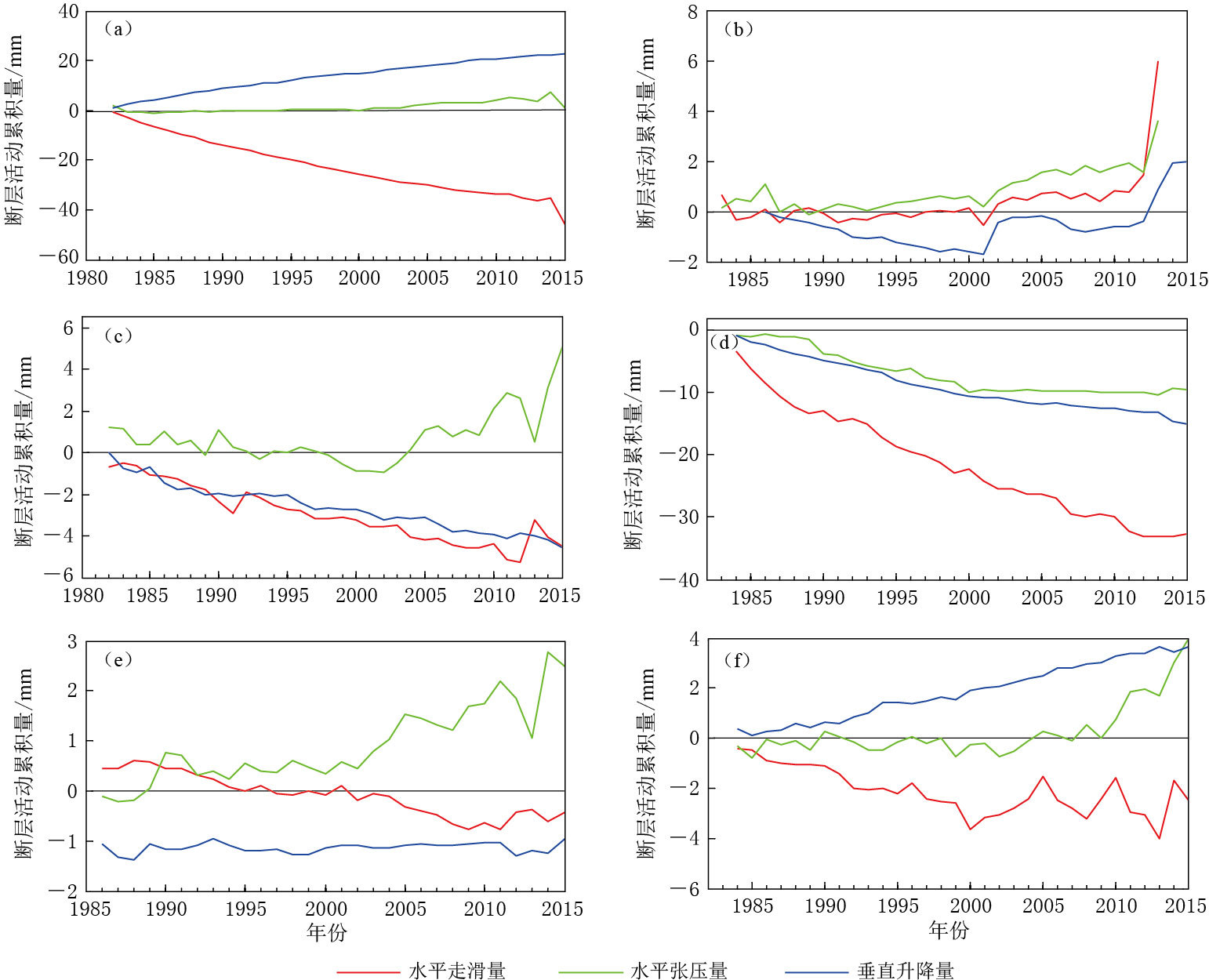

    图  2   鲜水河断裂带北西段场地断层三维活动参数时间序列

    (a)侏倭;(b)格篓坝子;(c)虚墟;(d)沟普;(e)龙灯坝;(f)老乾宁

    Figure  2.   Time series of three-dimensional activity parameters for the six sites on the northwestern segment of Xianshuihe fault zone

    (a)Zhuwo;(b)Geloubazi;(c)Xuxu;(d)Goupu;(e)Longdengba;(f)Laoqianning

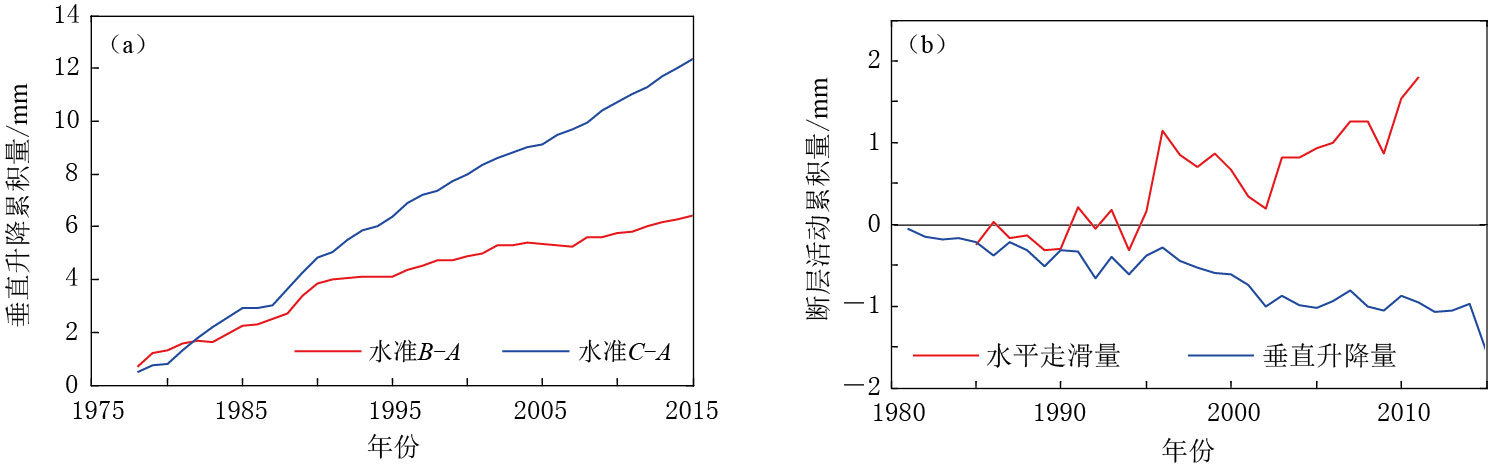

    图  3   鲜水河断裂带南东段安顺场(a)和折多塘(b)场地断层活动参数时间序列

    Figure  3.   Time series of fault activity parameters for Anshunchang site(a)and Zheduotang site(b)on the southeastern segment of Xianshuihe fault zone

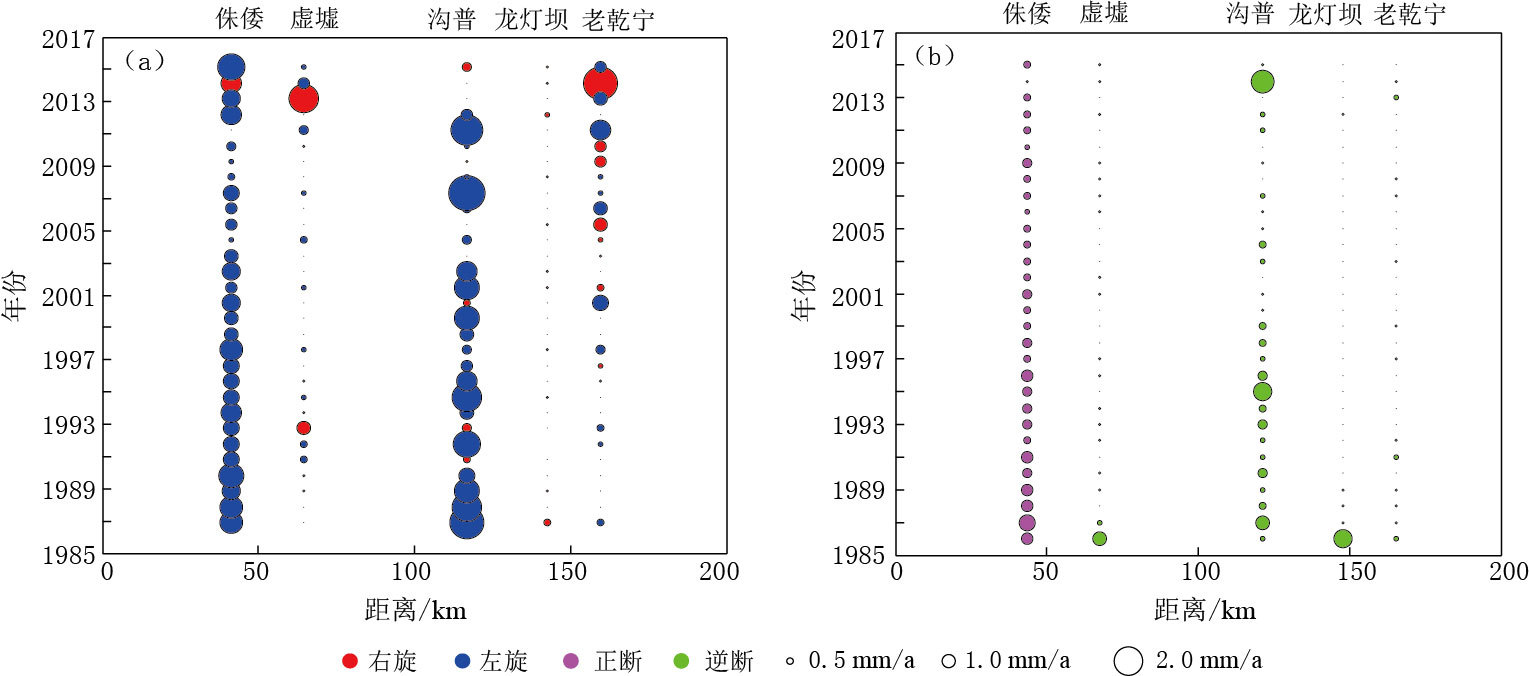

    图  4   鲜水河断裂带北西段水平走滑速率(a)和垂直升降速率(b)的时空演化图

    Figure  4.   Horizontal strike-slip rate(a)and vertical rate(b)along the northwestern segment of Xianshuihe fault zone

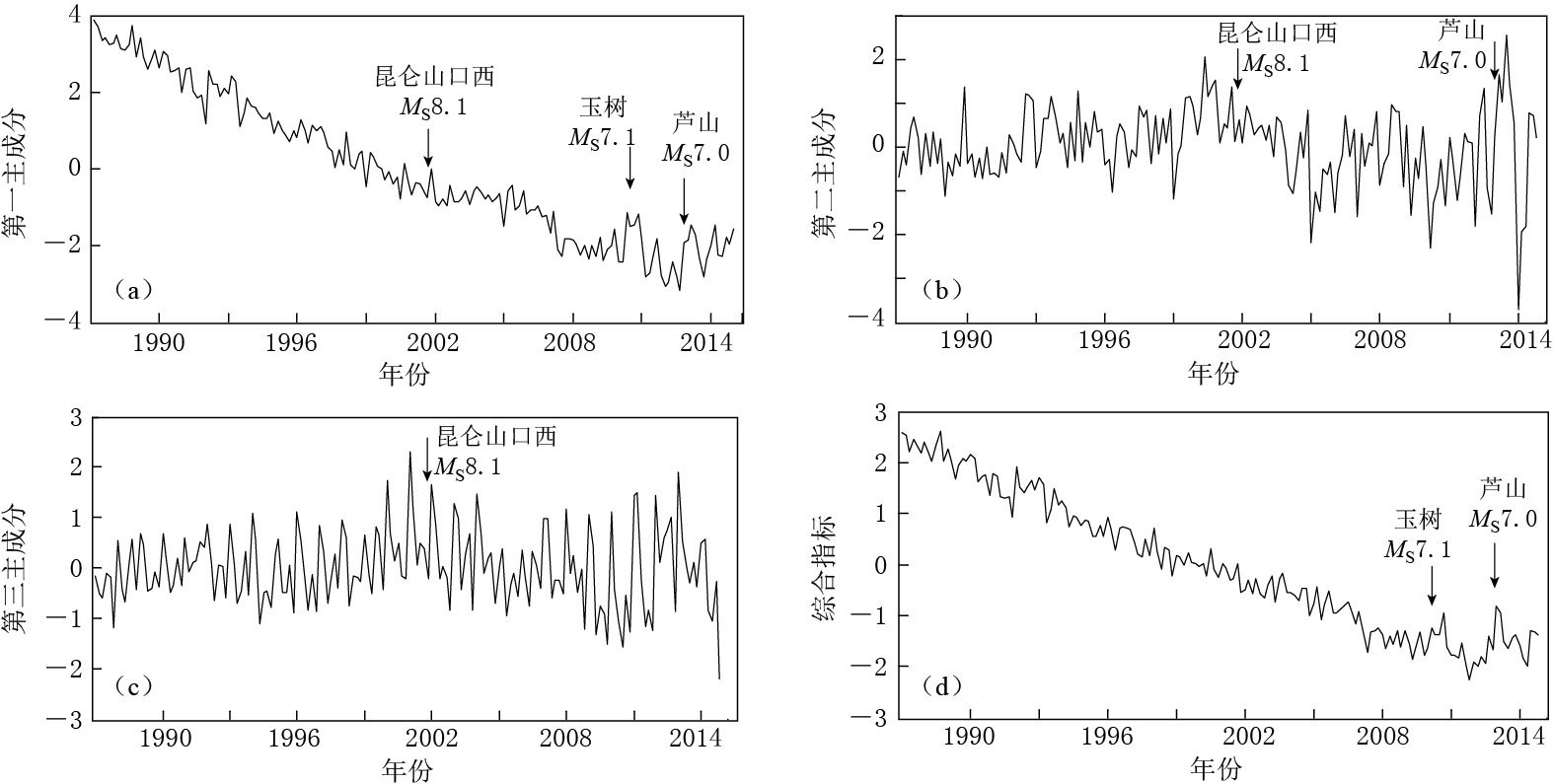

    图  5   鲜水河断裂带水平走滑量第一(a)、第二(b)和第三(c)主成分和综合指标(d)的时间序列曲线

    Figure  5.   Time series of the first three principle components(a,b,c)and composite indicator(d) of horizontal strike-slip cumulant of Xianshuihe fault zone

    图  6   鲜水河断裂带水平张压量第一(a)、第二(b)和第三(c)主成分和综合指标(d)的时间序列曲线

    Figure  6.   Time series of the first three principle components(a,b,c)and composite indicator(d) of horizontal tensional or compressive cumulant of Xianshuihe fault zone

    图  7   鲜水河断裂带垂直升降量第一(a)、第二(b)和第三(c)主成分和综合指标(d)时间序列曲线

    Figure  7.   Time series of the first three principle components(a,b,c)and composite indicator(d) of vertical activity cumulant of Xianshuihe fault zone

    表  1   跨断层测量所反映的鲜水河断裂带活动性质及活动速率

    Table  1   Activity characteristics and activity rate of Xianshuihe fault zone derived from fault-crossing measurements

    段落场地观测时段断层活动性质平均水平走滑速率/(mm·a-1)平均垂直升降速率 /(mm·a-1)
    西北段炉霍段 侏倭1981—2015左旋,正断1.320.67
    格篓坝子1982—2013左旋,逆断0.200.07
    虚墟1981—2015左旋,逆断0.130.12
    道孚段沟普1983—2015左旋,逆断1.020.47
    道孚2008—2015逆断-0.05
    乾宁段 龙灯坝1985—2015左旋,逆断0.020.03
    老乾宁1983—2015左旋,正断0.080.11
    南东段折多塘1984—2015右旋,逆断0.070.05
    安顺场1977—2015正断-0.25
    下载: 导出CSV
