Detection of the northern section of Anninghe fault zone by seismic reflection method
-
摘要: 通过在四川石棉城区内利用地震反射法探测其隐伏断裂的实例，阐述了在地形变化大、人口密集、环境干扰强的条件下浅层地震勘探方法的实施.本次勘探针对场地条件使用了小能量激发和小偏移距、小道间距、短排列接收、高覆盖次数的观测系统，获得的高信噪比时间剖面清晰地揭示了石棉城区内覆盖层的厚度和隐伏断裂的展布情况.探测结果表明：石棉城区内普遍存在一个明显且连续的反射界面，结合区域地质资料推测该界面是埋深约为15-60 m深浅不等的早更新世底界与上新世晚期顶界的第四系分界面. 4条地震反射时间剖面均揭示了安宁河断裂带北段所属的石棉断裂东支在石棉城区内为全新世隐伏活动断裂.Abstract: A scheme is described for seismic prospecting implemented under complicated conditions such as dramatic changes in topography, dense population and strong ambient noise. This is illustrated by detecting buried faults located in Shimian using seismic reflection method, in which spread geometry with small energy excitation, small receiver interval, short arrangement and high fold number was selected in accordance with the real site conditions. The seismic time section with higher SNR obtained in this case clearly reveals over-burden thickness and distribution of buried faults in Shimian. The results show that there is a clear and continuous reflection interface in each profile. Combined with regional geological data it is speculated that the interface is a Quaternary interface with depth of about 15 to 60 meters, ranging from the end of the Early Pleistocene to the Late Pliocene. Four seismic time profiles revealed that the northern section of Anninghe fault zone is exposed in Shimian with the form of buried faults, and as for the specific nature of the fault, the direction and depth, more reasonable explanation needs to be given combined with regional geological data.
-
-
![]()

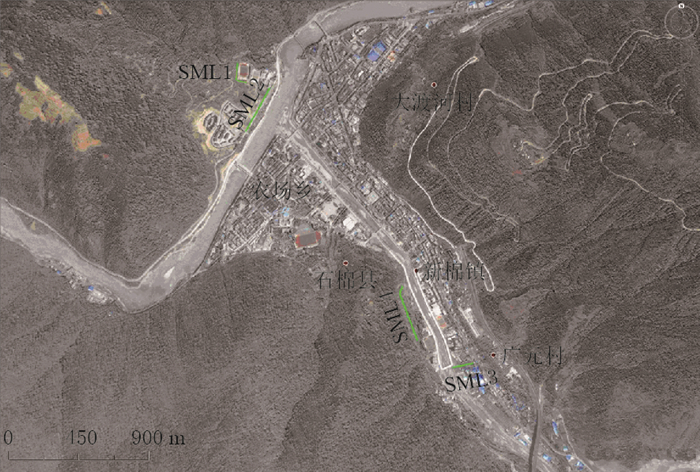

图 1 浅层地震勘探测线(SML1-4)位置示意图
Figure 1. Schematic diagram for the position of four shallow seismic survey lines (SML1-4)
![]()

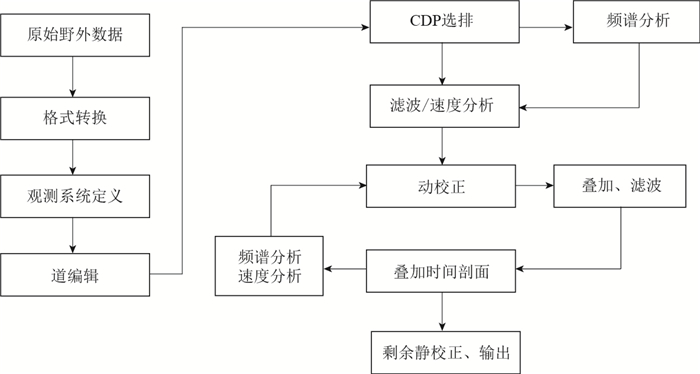

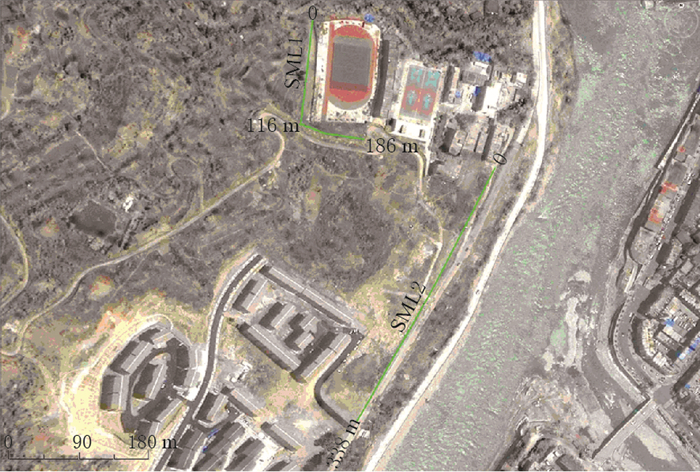

图 3 浅层地震勘探测线SML1和SML2位置图
Figure 3. Schematic diagram for the position of shallow seismic survey lines SML1 and SML2
![]()

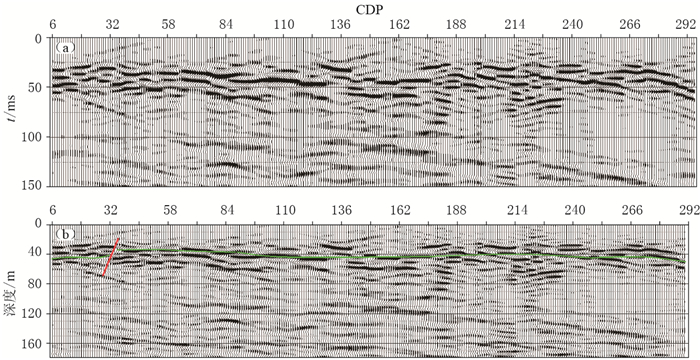

图 4 浅层地震勘探测线SML1的时间剖面(a)和深度剖面(b)图
Figure 4. Time section (a) and depth profile (b) of the shallow seismic survey line SML1
![]()
图 5 浅层地震勘探测线SML2的时间剖面(a)和深度剖面(b)图
Figure 5. Time section (a) and depth profile (b) of the shallow seismic survey line SML2
![]()

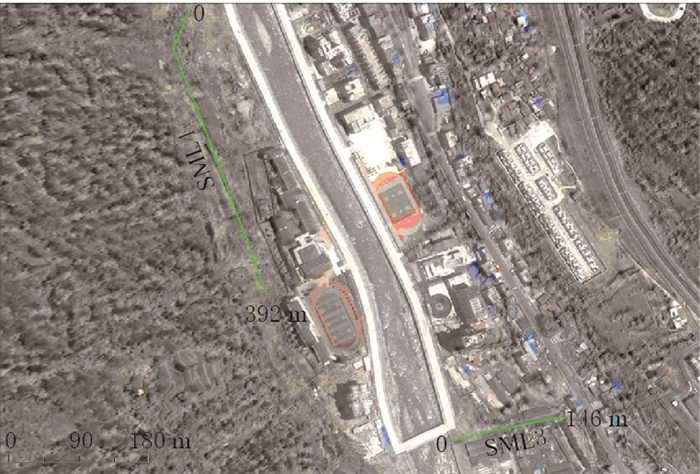

图 6 浅层地震勘探测线SML3和SML4位置图
Figure 6. Schematic diagram for the position of the shallow seismic survey lines SML3 and SML4
![]()

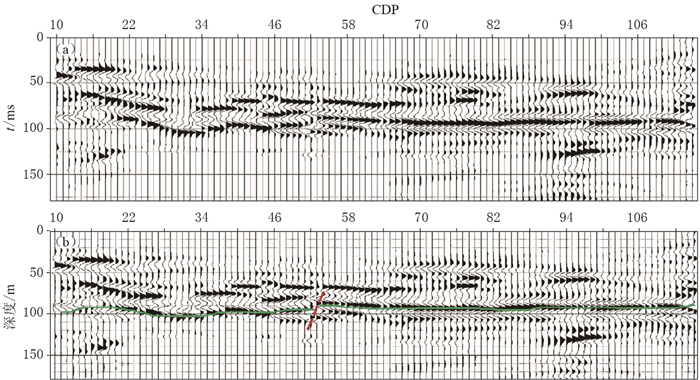

图 7 浅层地震勘探测线SML3的时间剖面(a)和深度剖面(b)图
Figure 7. Time section (a) and depth profile (b) of the shallow seismic survey line SML3
![]()
图 8 浅层地震勘探测线SML4的时间剖面(a)和深度剖面(b)图
Figure 8. Time section (a) and depth profile (b) of the shallow seismic survey line SML4
![]()

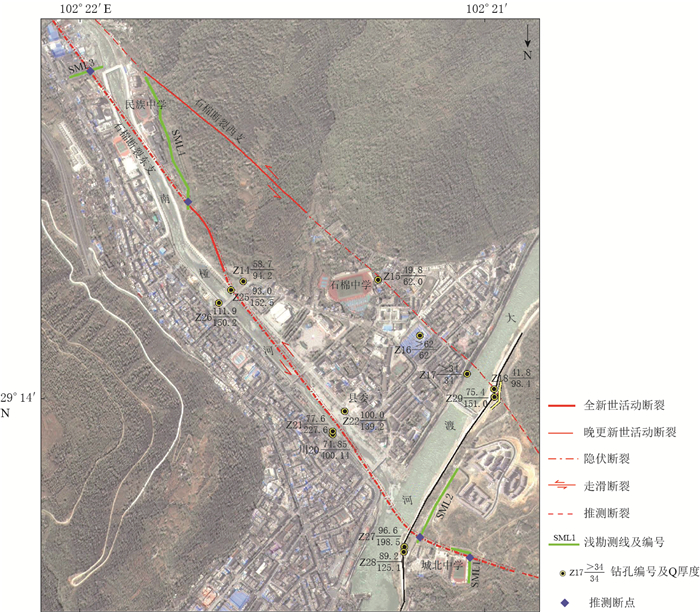

图 9 石棉县城浅层地震探测隐伏活动断裂和断点分布图
Figure 9. Distribution of the buried active faults and breakpoints for shallow seismic exploration in Shimian County
表 1 浅层地震勘探测线参数和工作量统计表
Table 1 Statistics on shallow seismic exploration parameters and workload
测线编号 测线位置 道间距/m CDP间距/m 测线长度/m 激发点数 炮(道)记录数 SML1 城北中学西 2 1 236 35 1680 SML2 城北中学东 2 1 388 72 3456 SML3 广元村西 2 1 196 22 1056 SML4 民族中学西北 2 1 440 83 3984 合计 1260 212 10176
下载: 导出CSV
-
陈长云, 何宏林. 2008.大凉山地区新生代地壳缩短及其构造意义[J].地震地质, 32 (2): 443-453. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200802010.htm Chen C Y, He H L. 2008. Crust shortening of Daliangshan tectonic zone in Cenozoic era and its implication[J]. Seis-mology and Geology, 32 (2): 443-453 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200802010.htm
邓起东, 张培震, 冉勇康, 杨晓平, 闵伟, 楚全芝. 2002.中国活动构造基本特征[J].中国科学: D辑, 32 (12): 1020-1030. http://www.cnki.com.cn/Article/CJFDTOTAL-JDXK200212006.htm Deng Q D, Zhang P Z, Ran Y K, Yang X P, Min W, Chu Q Z. 2003. Basic characteristics of active tectonics of China[J]. Science in China: Series D, 46 (4): 356-372. http://cn.bing.com/academic/profile?id=1944218387&encoded=0&v=paper_preview&mkt=zh-cn
邓起东, 高翔, 陈桂华, 杨虎. 2010.青藏高原昆仑-汶川地震系列与巴颜喀喇断块的最新活动[J].地学前缘, 17 (5): 163-178. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201005017.htm Deng Q D, Gao X, Chen G H, Yang H. 2010. Recent tectonic activity of Bayankala fault-block and the Kunlun-Wenchuan earthquake series of the Tibetan Plateau[J]. Earth Science Frontiers, 17 (5): 163-178 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201005017.htm
何宏林, 池田安隆. 2007.安宁河断裂带晚第四纪运动特征及模式的讨论[J].地震学报, 29 (5): 537-548. http://www.dzxb.org/Magazine/Show?id=26391 He H L, Ikeda Y. 2007. Faulting on the Anninghe fault zone, southwest China in Late Quaternary and its movement model[J]. Acta Seismologica Sinica, 29 (5): 537-548 (in Chinese). http://www.dzxb.org/Magazine/Show?id=26391
何宏林, 池田安隆, 何玉林, 东乡正美, 陈杰, 陈长云, 田力正好, 越後智雄, 冈田真介. 2008.新生的大凉山断裂带:鲜水河-小江断裂系中段的裁弯取直[J].中国科学: D辑, 38 (5): 564-574. doi: 10.1007/s11430-008-0094-4 He H L, Ikeda Y, He Y L, Togo M, Chen J, Chen C Y, Tajikara M, Echigo T, Okada S. 2008. Newly-generated Daliangshan fault zone: Shortcutting on the central section of Xianshuihe-Xiaojiang fault system[J]. Science in China: Series D, 51 (9): 1248-1258. doi: 10.1007/s11430-008-0094-4
何正勤, 陈宇坤, 叶太兰, 王向东, 王辉, 贾辉. 2007.浅层地震勘探在沿海地区隐伏断层探测中的应用[J].地震地质, 29 (2): 363-372. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200702013.htm He Z Q, Chen Y K, Ye T L, Wang X D, Wang H, Jia H. 2007. Application of shallow seismic exploration in detection of buried fault in coastal areas[J]. Seismology and Geology, 29 (2): 363-372 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200702013.htm
何正勤, 安好收, 沈坤, 鲁来玉, 胡刚, 叶太兰. 2013.用地震反射法对玉溪盆地普渡河断裂的探测[J].地震学报, 35 (6): 836-847. http://www.dzxb.org/Magazine/Show?id=28891 He Z Q, An H S, Shen K, Lu L Y, Hu G, Ye T L. 2013. Detection of Puduhe fault in Yuxi basin of Yunnan by seismic reflection method[J]. Acta Seismologica Sinica, 35 (6): 836-847 (in Chinese). http://www.dzxb.org/Magazine/Show?id=28891
冉勇康, 陈立春, 程建武, 宫会玲. 2008.安宁河断裂冕宁以北晚第四纪地表变形与强震破裂行为[J].中国科学: D辑, 38 (5): 543-554. doi: 10.1007/s11430-008-0104-6 Ran Y K, Chen L C, Cheng J W, Gong H L. 2008. Late Quaternary surface deformation and rupture behavior of strong earthquake on the segment north of Mianning of the Anninghe fault[J]. Science in China: Series D, 51 (9): 1224-1237. doi: 10.1007/s11430-008-0104-6
申旭辉, 陈正位, 许任德, 张宁. 2000.大凉山活动构造带晚新生代变形特征与位移规模[J].地震地质, 22 (3): 232-238. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200003003.htm Shen X H, Chen Z W, Xu R D, Zhang N. 2000. Deformation characteristics and displacement amount of the Liangshan active fault zone in Late Cenozoic Era[J]. Seismology and Geology, 22 (3): 232-238 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200003003.htm
王振东. 1988.浅层地震勘探应用技术[M].北京:地质出版社: 1-296. Wang Z D. 1988. Shallow Seismic Exploration Technology[M]. Beijing: Geological Publishing House: 1-296 (in Chinese).
王庆海, 徐明才. 1991.抗干扰高分辨率浅层地震勘探[M].北京:地质出版社: 1-427. Wang Q H, Xu M C. 1991. Anti-Interference High Resolution Shallow Seismic Exploration[M]. Beijing: Geological Publishing House: 1-427 (in Chinese).
闻学泽, 范军, 易桂喜, 邓一唯, 龙锋. 2008.川西安宁河断裂上的地震空区[J].中国科学: D辑, 38 (7): 797-807. doi: 10.1007/s11430-008-0114-4 Wen X Z, Fan J, Yi G X, Deng Y W, Long F. 2008. A seismic gap on the Anninghe fault in western Sichuan, China[J]. Science in China: Series D, 51 (10): 1375-1387. doi: 10.1007/s11430-008-0114-4
易桂喜, 闻学泽, 范军, 王思维. 2004.由地震活动参数分析安宁河-则木河断裂带的现今活动习性及地震危险性[J].地震学报, 26 (3): 294-303. http://www.dzxb.org/Magazine/Show?id=26632 Yi G X, Wen X Z, Fan J, Wang S W. 2004. Assessing current faulting behaviors and seismic risk of the Anninghe-Zemuhe fault zone from seismicity parameters[J]. Acta Seismologica Sinica, 26 (3): 294-303 (in Chinese). http://www.dzxb.org/Magazine/Show?id=26632
俞受朋. 1993.高分辨率地震勘探[M].北京:石油工业出版社: 1-189. Yu S P. 1993. High Resolution Seismic Exploration[M]. Beijing: Petroleum Industry Press: 1-189 (in Chinese).
喻安光. 2000.四川石棉-冕宁地区之伸展构造[J].中国区域地质, 19 (1): 20-25. http://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD200001003.htm Yu A G. 2000. Extensional tectonics in Shimian-Mianning district, Sichuan[J]. Regional Geology of China, 19 (1): 20-25 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD200001003.htm
中国地震局震害防御司. 2009. DB/T 15-2009活动断层探测[S].北京:中国标准出版社: 1-21. Department of Earthquake Disaster Prevention, China Earthquake Administration. 2009. DB/T 15-2009 Surveying and Prospecting of Active Fault[S]. Beijing: Standards Press of China: 1-21 (in Chinese).
Hawman R B, Clippard J E, Prosser C L. 2000. Shallow seismic reflection profiling over the Brevard zone, South Carolina[J]. Geophysics, 65 (5): 1388-1401. doi: 10.1190/1.1444829
Wang E, Burchfiel B C, Royden L H, Chen L Z, Chen J S, Li W X, Chen Z L. 1998. Late Cenozoic Xianshuihe-Xiaojiang, Red River, and Dali fault systems of southwestern Sichuan and central Yunnan, China[J]. Geol Soc Am Spec Papers, 327 : 1-108. http://cn.bing.com/academic/profile?id=1891743379&encoded=0&v=paper_preview&mkt=zh-cn
