Application of Pd-τc compatibility criterion to distinguishing triggered events
-

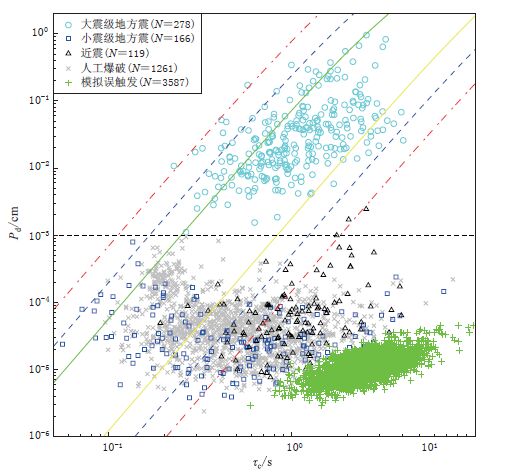

摘要: 结合福建地区地震预警系统的运行情况和处理能力， 利用日本KiK-net台网和福建地震台网记录的天然地震事件和人工爆破事件实测数据， 探讨了Pd-τc相容性检验方法在触发事件类型实时判别中应用的可行性． 结果表明， Pd-τc相容性检验方法能够较好地区分大震级地方震与误触发事件， 也能对远震事件进行粗略判别， 但对于小震级地方震和人工爆破事件则无法有效判别． 随后， 以Pd-τc相容性检验结果为基础， 本文设定强度参数Pd=10-3 cm为界线， 即可从众多触发事件中甄选出可能产生破坏的大震级地方震事件． 本文方法有助于提高触发事件类型判别结果的可靠性、 预警系统的处理效率和系统产出信息的准确度．Abstract: Combining the operation status of the earthquake early warning (EEW) system in Fujian Province， this paper discusses the feasibility of the Pd-τc compatibility criterion in discrimination of triggered events， based on seismic records of KiK-net in Japan and seismic monitoring networks of Fujian Province， in which both spontaneous earthquakes and artificial explosion events are included. The results show that， for large local earthquakes and false triggering events， Pd-τc criterion is quite reliable with less error. Also， teleseismic earthquake events may be roughly judged by the criterion. But artificial explosions and/or small magnitude local earthquakes cannot be effectively distinguished only by this criterion. Furthermore， based on the Pd-τc compatibility test results， this paper sets an intensity test standard by the parameter Pd=10-3 cm， by which those destructive earthquakes can be identified more accurately. The present method will help to improve the reliability of triggered events discrimination， promote processing efficiency of the whole EEW system， eventually generate more accurate seismic alert message.
-
-
![]()

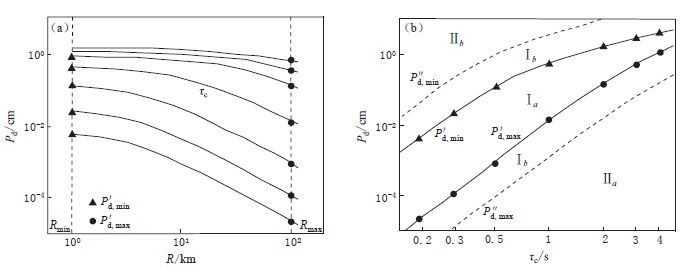

图 1 Pd-τc相容性检验关系推导示意图
(a)Pd随震中距R及τc的衰减;(b)Pd-τc相容性检验关系(实线)及扩展控制线(虚线)
Figure 1. Schematic diagram of derivation of Pd-τc compatibility relations
(a)Pd attenuates with epicentral distance R and τc value;(b)Pd-τc compatibility test relations(solid lines)and extension control lines(dashed lines)
![]()

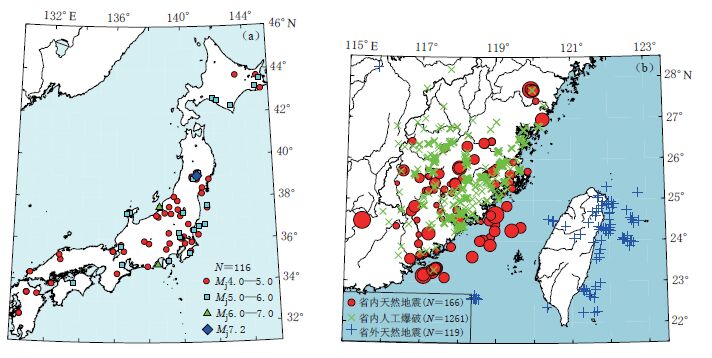

图 2 本文研究所使用地震事件分布情况
(a)日本KiK-net台网116次事件分布；(b)福建省及周边地区1546次事件分布
Figure 2. Distribution of earthquake events used in this study
(a)Distribution of 116 events recorded by KiK-net；(b)Distribution of events within and beyond Fujian Province，where red dots and blue plus signs represent spontaneous earthquakes within and beyond Fujian Province，respectively，and green crosses represent artificial explosion events in Fujian Province
![]()

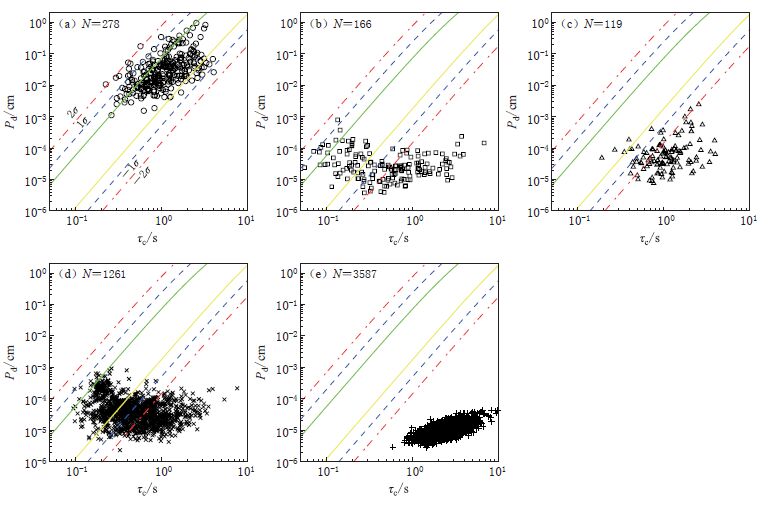

图 3 基于不同事件类型的Pd-τc相容性分析结果
(a)KiK-net台网事件;(b)福建省及其周边地区小震级天然地震事件;(c)台湾及其周边地区天然地震事件;(d)福建省及其周边人工爆破事件；(e)模拟误触发事件
Figure 3. Test results of Pd-τc compatibility criterion based on different types of events
(a)KiK-net events;(b)Earthquake events with small magnitude within Fujian Province and its vicinity; (c)Earthquake events within Taiwan region and its vicinity;(d)Artificial explosion events within Fujian Province and its vicinity;(e)Simulated false trigger events
![]()

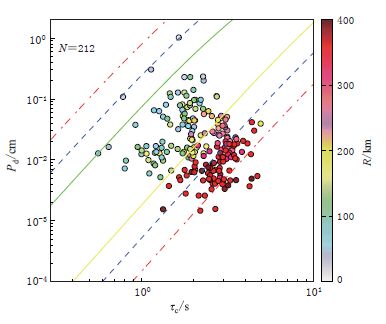

图 4 宫城岩手县Mj7.2地震不同震中距R台站的Pd-τc相容性分析结果
Figure 4. Pd-τc compatibility test results based on the records of the Mj7.2，Iwate-Miyagi，earthquake from the stations with different epicentral distance R
-
黄汉明, 边银菊, 卢世军, 蒋正锋, 李锐. 2010. 天然地震与人工爆破的波形小波特征研究[J]. 地震学报, 32(3): 270-276. http://www.dzxb.org/Magazine/Show?id=27285 Huang H M, Bian Y J, Lu S J, Jiang Z F, Li R. 2010. A wavelet feature research on seismic waveforms of earthquakes and explosions[J]. Acta Seismologica Sinica, 32(3): 270-276 (in Chinese). http://www.baidu.com/link?url=pBkHFit52pds3MsjY_Ub0Tids0_mKn-5ntJdr112dRIR88fDYadvAaIM4uHeYG2s7AUzAzfd3DZV2CMUfWCzvszOwMdj94i0Fbf3-4Ps3V6XzAT99ju7cyj6ScGZnuGiZ3aT56mPOop63AbCKgdAmoJjRs1ApZXwlKpa3x3mKtDNpuNYztBQG3WAil5vlM31_00pOc6pbn6gwl0agXW44IGnTS1fhGV6Y75bs2QYaED3h-Ynvo7ixvZ7F5scRN9YxcjFjiRv9FRuvTEd-0JyZUcUsYZg06rlioClIFw5_G13itYRGJAwZKJtTtLBvwgO2c_oXaH4QfF05Jk2XRTqBk77GBUsrXL4c-yiWauwQ97&wd=&eqid=d8669ec00002fa690000000558808959
金星, 张红才, 李军, 韦永祥, 马强. 2012. 地震预警震级确定方法研究[J]. 地震学报, 34(5): 593-610. http://www.dzxb.org/Magazine/Show?id=28783 Jin X, Zhang H C, Li J, Wei Y X, Ma Q. 2012. Research on earthquake early warning magnitude estimate[J]. Acta Seismologica Sinica, 34(5): 593-610 (in Chinese). http://www.dzxb.org/Magazine/Show?id=28783
金星, 张红才, 李军, 康兰池, 韦永祥, 马强. 2013. 地震仪器烈度标准初步研究[J]. 地球物理学进展, 28(5): 2336-2351. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWJ201305017.htm Jin X, Zhang H C, Li J, Kang L C, Wei Y X, Ma Q. 2013. Preliminary study on instrumental seismic intensity standard[J]. Progress in Geophysics, 28(5): 2336-2351 (in Chinese). http://www.baidu.com/link?url=HVswaeLIZM8CQ7ibqgLnEH-D3clQBdWNtVNIMcDmSE3-bt95eRIaX3TFs37wtF5EN5Gt2hIyUHVZki22Iy0Dqy9aU1ns4EFvrIJu1HAan1TpvxrAz903uNoKiNsfzV0UP3ZLvJgDT_190j7DO9BxZczJNm0rP8Zbblu-yZiP1Y2Xm_p4zI7VXdW4Fk_-f2-gm5dW1kCAtCj09iU21r1K7B_IKU43EWtZJPZ4phIg_47M_PxRJpAuimoD0_9LrCBv192SWlu_Y4A5Cf55oXhMSktXy74DaVN288Npk90vx3K1vzc58xmD4X2N9wusmqKA3ggfbWm37QwWypr4ERGrra&wd=&eqid=824e0d7c0002cfb900000005588089a6
马强. 2008. 地震预警技术研究及应用[D]. 哈尔滨: 中国地震局工程力学研究所: 14-39. Ma Q. 2008. Study and Application on Earthquake Early Warning[D]. Harbin: Institute of Earthquake Mechanics, China Earthquake Administration: 14-39 (in Chinese).
马强, 金星, 李山有, 陈绯雯, 廖诗荣, 韦永祥. 2013. 用于地震预警的P波震相到时自动拾取[J]. 地球物理学报, 56(7): 2313-2321. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201307017.htm Ma Q, Jin X, Li S Y, Chen F W, Liao S R, Wei Y X. 2013. Automatic P-arrival detection for earthquake early warning[J]. Chinese Journal of Geophysics, 56(7): 2313-2321 (in Chinese). http://www.baidu.com/link?url=W47yImYwJz45SyaGgS2qj-6KHaUiMNgnjtZ29D21lnijh5vcd6QWMDFjTwct4WCg6iKpcqR0UZ5z5Hb8rc3by3S_Egt0JOcRT8e6BcckONMkblMTSzWQAJyozdpXxvHg1xCtmuPNohskukCyGWM2g6JhVmOj1bU8t44c_TopJkxJGhjQRHMt2f9zsPMWEByDaDLyY76EmvdVhThpmn_QeAx4_fvYkjcBthRGV6UtyMnWPnk63QHSVgX1bFhxEShTqDyUyqrF9ZZgdObm6PsXL8bgNw_LIiINxq1DJIXwCOurNvwGcFSImxR_8Ybybr4n&wd=&eqid=fd37c4cf0002c38700000005588089b7
王婷婷, 边银菊. 2011. 识别天然地震和人工爆破的判据选择[J]. 地震地磁观测与研究, 32(6): 62-67. http://www.cnki.com.cn/Article/CJFDTOTAL-DZGJ201106012.htm Wang T T, Bian Y J. 2011. Criterion selection of earthquake and explosion recognition[J]. Seismological and Geomagnetic Observation and Research, 32(6): 62-76 (in Chinese).
张晁军, 王丽萍, 马丽, 李勇, 黄建平, 尹宝军. 2004. 多元统计分析法识别地震与爆破[C]//中国地球物理学会第20届年会会议文集. 西安: 中国地球物理学会: 233. Zhang C J, Wang L P, Ma L, Li Y, Huang J P, Yin B J. 2004. Discriminate earthquakes and explosions by using the multivariate statistical analysis method[C]//Proceedings of 20th Annual Meeting of Chinese Geophysical Society. Xi’an: Chinese Geophysical Society: 233 (in Chinese).
张红才, 金星, 李军, 韦永祥, 马强. 2012. 地震预警震级计算方法研究综述[J]. 地球物理学进展, 27(2): 464-474. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWJ201202010.htm Zhang H C, Jin X, Li J, Wei Y X, Ma Q. 2012. Review on magnitude estimation methods applied to earthquake early warning systems[J]. Progress in Geophysics, 27(2): 464-474 (in Chinese). http://www.baidu.com/link?url=T91Lz33tXL3iDznu3HCl1-AiofvNTaPn-x-YOcyATxQqJH1EEXTJ-8-BrjOplHVQ2nh8PDkEjn-pPYnT6Hr7Q8vL6tPL1hR9pBFTclIvQl6KPJItFs4dPSUpbuzQ3WzSHCVnSA63X6SLVxlTQjcWZtfY3k8QXPl8W4jb267WAs5ROm-Wd16mNiNfSfsdV_-M8HXYlW4qT0OddalVLsoFBIsE6gR3xovXonxoeUM630cSnSdcIWcPsJArdK6LsHDgNuqboIzK0jTTsJuMqt0ROcxupOllC-xvIlvzJigOAGHIrjd8yB15L8545YMkL4ImxP9hHI_KPivRH8N7HAdFdQVorym-NcuVZ2jWO5b9k6e&wd=&eqid=fd37c4cf0002c6f700000005588089e1
张红才. 2013. 地震预警系统关键技术研究[D]. 哈尔滨: 中国地震局工程力学研究所: 21-70. Zhang H C. 2013. Study of Key Technologies in Earthquake Early Warning System[D]. Harbin: Institute of Earthquake Mechanics, China Earthquake Administration: 21-70 (in Chinese).
张红才, 金星. 2014. 地震预警信息可靠度研究[J]. 地震学报, 36(4): 615-630. http://www.dzxb.org/Magazine/Show?id=28989 Zhang H C, Jin X. 2014. Reliability research of earthquake early warning information[J]. Acta Seismologica Sinica, 36(4): 615-630 (in Chinese). http://www.baidu.com/link?url=mHOF0PiHKmvVVsJnXNE-gNU13U3nj-mBdcvFwmtG3zmvdhrv1SuWfBQDPEumbAhtRu-I2Hx2IqQzva4Uvpgoc7Q2w1xbZ2Qpkn_cEf-hCmAPXa84QIee0tHWL6PTBVtpedlx6gMPoRJPauPbRe5FNNO_SXdIF7F_XGq3Z6zKDLwikoVcgsm5T7oAkC2KrEmOM3f2diVwpM2CiJuxKsr8C6S7uKqTsK30Jee4MLQFv118Olp-4dNWq7oSdkfnOpEDMj40C0GQgePALJaVe1mq-iNcIzFco_4ZKfom08-DyQc0tsFw2wXwxk2TJReFX5hO&wd=&eqid=824e0d7c0002da4000000005588089fd
Böse M, Hauksson E, Solanki K, Kanamori H, Wu Y M, Heaton T H. 2009. A new trigger criterion for improved real-time performance of onsite earthquake early warning in southern California[J]. Bull Seismol Soc Am, 99(2A): 897-905. doi: 10.1785/0120080034
Hellweg M, Allen R M, Brown H, Neuhauser D S, Khainovsky O. 2010. CISN ShakeAlert: Progress toward using early warnings for earthquakes in California[C]//American Geophysical Union Fall Meeting 2010 Abstracts. San Francisco: AGU: #NH33A-1368.
Kanamori H. 2005. Real-time seismology and earthquake damage mitigation[J]. Annu Rev Earth Planet Sci, 33: 195-214. doi: 10.1146/annurev.earth.33.092203.122626
Serdar Kuyuk H, Allen R M, Brown H, Hellweg M, Henson I, Neuhauser D. 2014. Designing a network-based earthquake early warning algorithm for California: ElarmS-2[J]. Bull Seismol Soc Am, 104(1): 162-173. doi: 10.1785/0120130146
Wu Y M, Kanamori H. 2005. Experiment on an onsite early warning method for the Taiwan early warning system[J]. Bull Seismol Soc Am, 95(1): 347-353. doi: 10.1785/0120040097
Wu Y M, Li Z. 2006. Magnitude estimation using the first three seconds P-wave amplitude in earthquake early warning[J]. Geophys Res Lett, 33(16): L16312. doi: 10.1029/2006GL026871.
Wu Y M, Kanamori H, Allen R M, Hauksson E. 2007. Determination of earthquake early warning parameters, τc and Pd, for southern California[J]. Geophys J Int, 170(2): 711-717. doi: 10.1111/gji.2007.170.issue-2
Wu Y M, Kanamori H. 2008. Development of an earthquake early warning system using real-time strong motion signals[J]. Sensors, 8(1): 1-9. doi: 10.3390/s8010001
Zhang H C, Jin X, Wei Y X, Li J, Kang L C, Wang S C, Huang L Z, Yu P Q. 2016. An earthquake early warning system in Fujian, China[J]. Bull Seismol Soc Am, 106(2): 755-765. doi: 10.1785/0120150143
Zollo A, Lancieri M, Nielsen S. 2006. Earthquake magnitude estimation from peak amplitude of very early seismic signals on strong motion records[J]. Geophys Res Lett, 33(23): L23312. doi: 10.1029/2006GL027795. .
