The finite element modelling of iron interference on earth resistivity of Yanqing station
-
摘要: 近年来延庆台地电阻率观测多次出现因环境干扰而引起的较为显著的异常变化，尤其是观测环境中铁质干扰源对地电阻率观测的幅度和形态的影响.本文依据台站测区地下高密度电性结构剖面和电测深结果建立了三维数值模型，分析了几种铁质对延庆台地电阻率观测的影响幅度和形态，结果表明，在扣除地电阻率基准值后，干扰幅度和形态与实际观测值的异常变化较吻合，从而从数值分析的角度确定了地下铁质对延庆地电阻率观测的干扰.Abstract: In recent years, resistivity observation in Yanqing station appeared with more than once remarkable anomalies caused by environmental interference, especially the iron interference on disturbance amplitude and pattern. According to underground high density electric structure profile and electrical sounding of Yanqing station, we established a three-dimensional numerical model to analyze the influence from several iron media on the amplitude and the pattern of the earth resistivity. The results showed that after deducted the reference value of earth resistivity, the disturbance amplitude and pattern tallied with the actual observed anomalies, which verified that the iron medium has interference on earth resistivity observation from the perspective of numerical analysis.
-
-
![]()

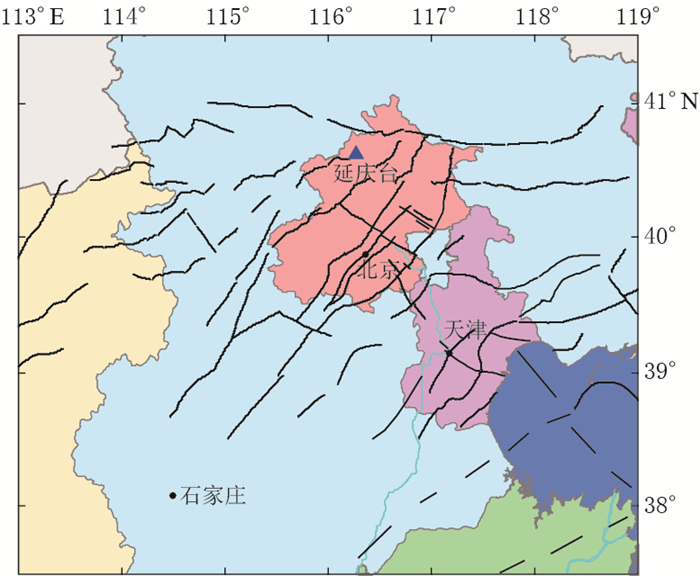

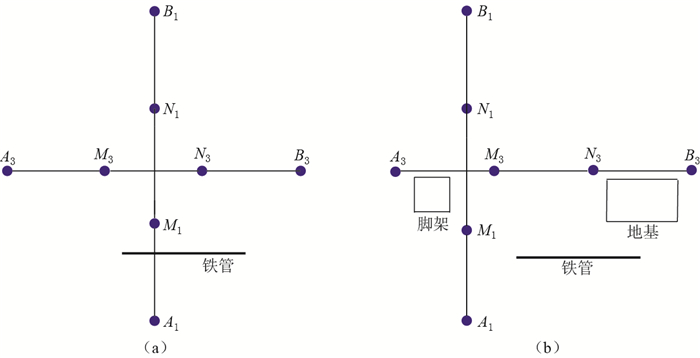

图 2 延庆地电阻率观测线路布极图
Figure 2. Electrodes arrangement for resistivity observation at Yanqing station
![]()

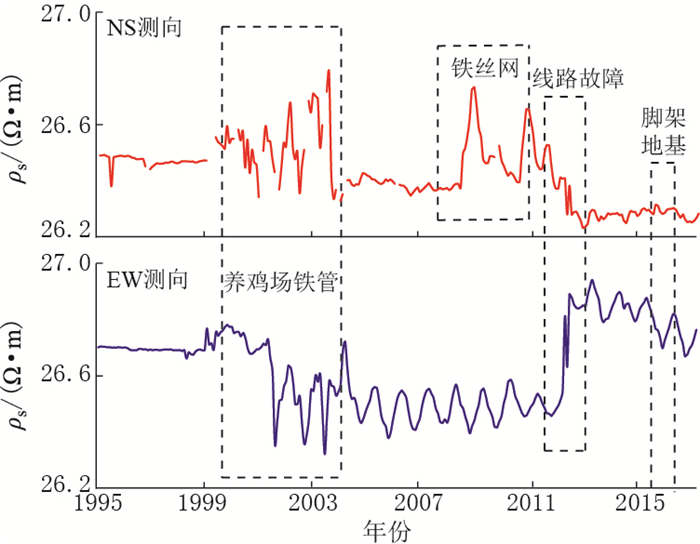

图 3 1995—2016年延庆台地电阻率观测数据月均值曲线
Figure 3. The monthly mean value curves of georesistivity observation data at Yanqing station from 1995 to 2016
![]()

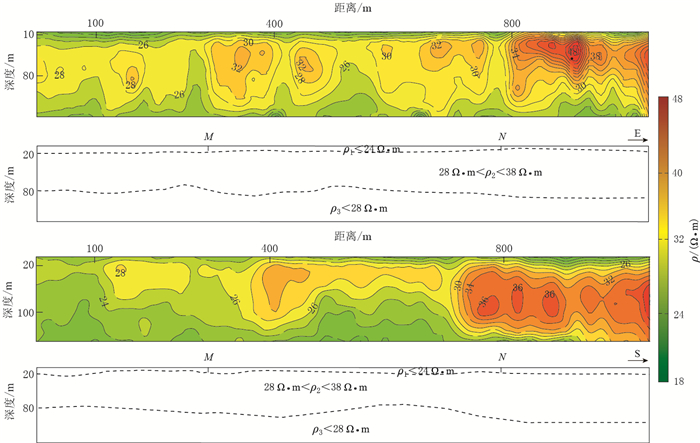

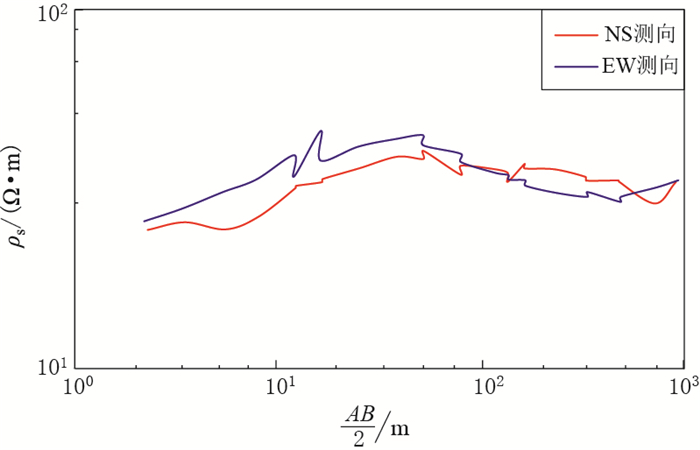

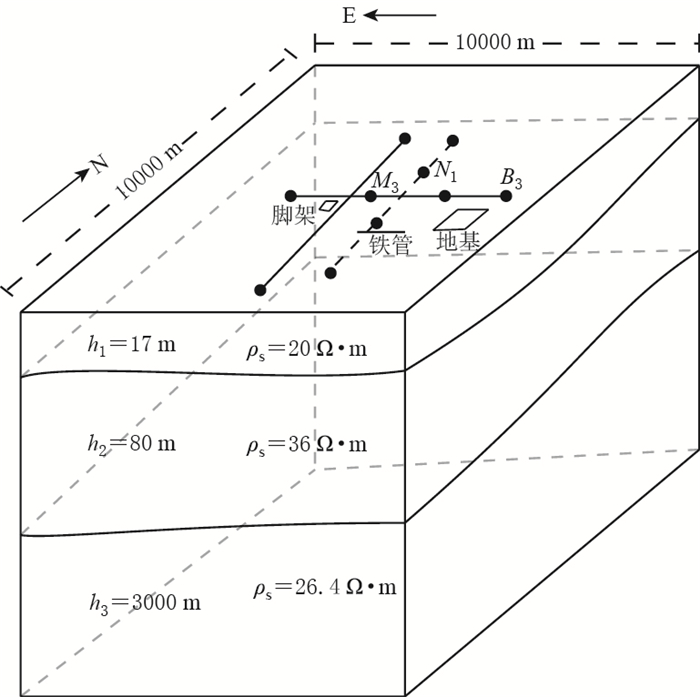

图 6 延庆台地电阻率有限元模型示意图
Figure 6. The three-dimensional finite element model of georesistivity at Yanqing station
![]()

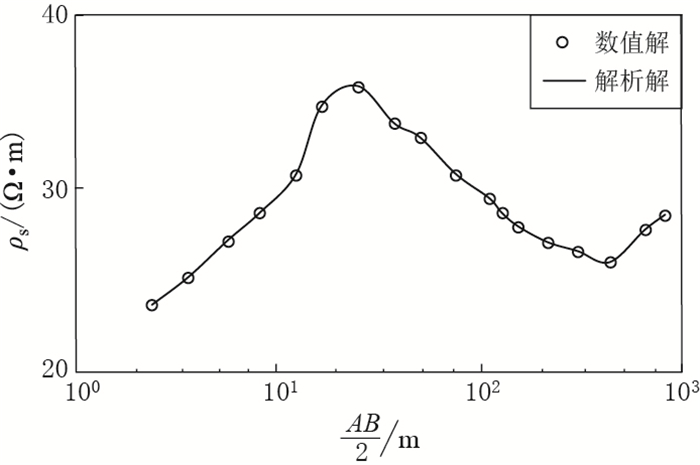

图 7 有限元模型计算值和解析解曲线
Figure 7. The numerical results and analytic solution curve of the finite element model
![]()

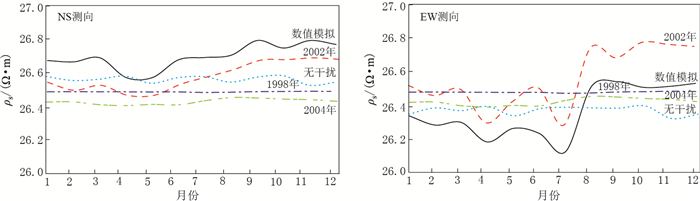

图 8 延庆台地电阻率观测数据及有限元分析
Figure 8. Georesistivity observation data and finite element analysis for Yanqing station
![]()

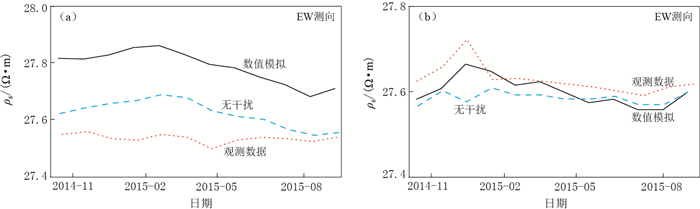

图 9 铁脚架(a)和铁质地基(b)干扰的有限元分析
Figure 9. Finite element analysis for three-dimensional structures of the iron frame (a) and the iron foundation (b)
表 1 2002年延庆地电阻率有限元模拟计算得到的干扰源年变化量
Table 1 Annual variations of interference sources calculated from FEM simulation for georesistivity of Yanqing station in 2002
月份 干扰源年变化量 EW测向/(Ω·m) NS测向/(Ω·m) 1 -0.236 0.111 2 -0.242 0.070 3 -0.227 0.165 4 -0.283 -0.144 5 -0.273 -0.104 6 -0.249 -0.054 7 -0.231 -0.025 8 -0.249 0.026 9 -0.246 0.049 10 -0.242 0.070 11 -0.227 0.165 12 -0.239 0.091
下载: 导出CSV
表 2 铁脚架有限元分析的干扰量
Table 2 Disturbances achieved from finite element analysis of iron frame
月份 干扰源年变化量 EW测向/(Ω·m) NS测向/(Ω·m) 2014-10 0.0017 -0.0004 11 0.0019 -0.0005 12 0.0023 -0.0007 2015-01 0.0027 -0.0007 02 0.0023 -0.0007 03 0.0019 -0.0005 2015-04 0.0018 -0.0005 05 0.0016 -0.0005 06 -0.0035 -0.0004 07 -0.0218 -0.0003 08 -0.0195 -0.0002 09 -0.0292 -0.0002
下载: 导出CSV
表 3 铁地基有限元分析的干扰量
Table 3 Disturbances achieved from finite element analysis of iron foundation
月份 干扰源年变化量 EW测向/(Ω·m) NS测向/(Ω·m) 2014-10 -0.0049 -0.0029 11 -0.0016 -0.0013 12 -0.0054 -0.0015 2015-01 0.0055 -0.0013 02 0.0013 -0.0093 03 -0.0019 -0.0069 2015-04 -0.0022 -0.0004 05 0.0044 -0.0012 06 -0.0052 -0.0006 07 -0.0332 -0.0023 08 -0.0540 -0.0008 09 -0.0425 -0.0033
下载: 导出CSV
-
杜学彬, 严玲琴, 范莹莹, 安张辉, 刘君, 陈军营, 谭大诚, 王建军, 崔腾发. 2013. 2013年岷县漳县MS6.6地震前/后地电观测引起的思考[J].地震工程学报, 35(3): 513-521. http://www.cqvip.com/QK/92873A/201303/47989771.html Du X B, Yan L Q, Fan Y Y, An Z H, Liu J, Chen J Y, Tan D C, Wang J J, Cui T F. 2013. Geo-electrical forecasting and observation prior to and following the Minxian-Zhangxian MS6.6 earthquake of 2013[J]. China Earthquake Engineering Journal, 35(3): 513-521 (in Chinese). http://www.cqvip.com/QK/92873A/201303/47989771.html
杜学彬, 刘君, 崔腾发, 范莹莹, 安张辉, 闫睿, 王丽. 2015.两次近距离大震前成都台视电阻率重现性、相似性和各向异性变化[J].地球物理学报, 58(2): 576-588. doi: 10.6038/cjg20150220 Du X B, Liu J, Cui T F, Fan Y Y, An Z H, Yan R, Wang L. 2015. Repeatability, similarity and anisotropy changes in apparent resistivity recorded by station Chengdu at near distances before two great earthquakes[J]. Chinese Journal of Geophysics, 58(2): 576-588 (in Chinese). doi: 10.6038/cjg20150220
高立新, 黄根喜, 阎海滨. 1999.张北—尚义6.2级地震(1998-01-10) 前倾斜与地电阻率前兆异常[J].地壳形变与地震, 19(4): 88-90. http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB199904015.htm Gao L X, Huang G X, Yan H B. 1999. The dependable precursory anomaly before Zhangbei-Shangyi MS6.2 earthquake occurred on January 10, 1998[J]. Crustal Deformation and Earthquake, 19(4): 88-90 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB199904015.htm
桂燮泰, 关华平, 戴经安. 1989.唐山、松潘地震前视电阻率短临异常图象重现性[J].西北地震学报, 11(4): 71-75. http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ198904007.htm Gui X T, Guan H P, Dai J A. 1989. The short-term and immediate anomalous pattern recurrences of the apparent resistivity before the Tangshan and Songpan earthquakes of 1976[J]. Northwestern Seismological Journal, 11(4): 71-75 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ198904007.htm
国家地震局预测预防司. 1998. 电磁学分析预报方法[M]. 北京: 地震出版社: 2-4. Department of Earthquake Prediction and Preparedness, State Seismological Bureau.1998. Electromagnetism Analysis Forecast Method[M]. Beijing: Seismological Press: 2-4 (in Chinese).
金安忠, 李言竹, 李润贤, 李天宝, 栗甲, 赵强, 吴子泉. 1990.地电阻率观测中高压干扰场的研究[J].地震学报, 12(4): 428-433. http://www.dzxb.org/Magazine/Show?id=28360 Jin A Z, Li Y Z, Li R X, Li T B, Li J, Zhao Q, Wu Z Q. 1990. On a study of the interference field of high voltage power lines in earth resistivity observation[J]. Acta Seismologica Sinica, 12(4): 428-433 (in Chinese). http://www.dzxb.org/Magazine/Show?id=28360
刘昌谋, 桂燮泰, 柴剑勇, 秦乃岗, 李发国, 黄道立. 1994.河源地电台全空间地电阻率试验[J].华南地震, 14(3): 40-45. http://www.cnki.com.cn/Article/CJFDTOTAL-HNDI403.005.htm Liu C M, Gui X T, Chai J Y, Qin N G, Li F G, Huang D L. 1994. The observation test in deep-hole electrodes (whole space) resistivity at the Heyuan geoelectrical observatory[J]. South China Journal of Seismology, 14(3): 40-45 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-HNDI403.005.htm
聂永安, 巴振宁, 聂瑶. 2010.深埋电极的地电阻率观测研究[J].地震学报, 32(1): 33-40. http://www.dzxb.org/Magazine/Show?id=27252 Nie Y A, Ba Z N, Nie Y. 2010. Study on buried electrode resistivity monitoring system[J]. Acta Seismologica Sinica, 32(1): 33-40 (in Chinese). http://www.dzxb.org/Magazine/Show?id=27252
钱复业, 赵玉林. 1982.地震前地电阻率的异常变化[J].西北地震学报, 4(2): 31-38. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN20050200F.htm Qian F Y, Zhao Y L. 1982. Geo-resistivity anomalies before earthquakes[J]. Northwestern Seismological Journal, 4(2): 31-38 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN20050200F.htm
钱复业, 赵玉林, 刘捷, 黄燕妮. 1990.唐山7.8级地震地电阻率临震功率谱异常[J].地震, (3): 33-39. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN199003004.htm Qian F Y, Zhao Y L, Liu J, Huang Y N. 1990. Power spectrum anomaly of earth resistivity immediately before Tang-shan earthquake M7.8[J]. Earthquake, (3): 33-39 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN199003004.htm
王同利, 崔博闻, 武晓东, 胡乐银, 李菊珍, 王丽红, 李妍. 2016.延庆地电阻率西洋参种植干扰有限元定量分析[J].地震地磁观测与研究, 37(5): 66-71. http://www.cnki.com.cn/Article/CJFDTOTAL-DZGJ201605012.htm Wang T L, Cui B W, Wu X D, Hu L Y, Li J Z, Wang L H, Li Y. 2016. Apparent resistivity analysis for the influence of American Ginseng Greenhouses at Yanqing seismic station by using finite element method[J]. Seismological and Geomagnetic Observation and Research, 37(5): 66-71 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZGJ201605012.htm
解滔, 李飞, 沈红会, 卢军. 2013.新沂地震台地电阻率反向年变分析[J].地震学报, 35(6): 856-864. http://www.dzxb.org/Magazine/Show?id=28893 Xie T, Li F, Shen H H, Lu J. 2013. Reverse annual variation of georesistivity at Xinyi seismic station, Jiangsu Province[J]. Acta Seismologica Sinica, 35(6): 856-864 (in Chinese). http://www.dzxb.org/Magazine/Show?id=28893
解滔, 王洪岐, 刘立波, 卢军. 2014.四平台地电阻率相反年变有限元数值分析[J].地球物理学进展, 29(2): 588-594. doi: 10.6038/pg20140215 Xie T, Wang H Q, Liu L B, Lu J. 2014. Inverse annual variations of apparent resistivity at Siping earthquake station by using finite element method[J]. Progress in Geophysics, 29(2): 588-594 (in Chinese). doi: 10.6038/pg20140215
解滔, 卢军. 2015.地电阻率三维影响系数及其应用[J].地震地质, 37(4): 1125-1135. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ201504015.htm Xie T, Lu J. 2015. Three-dimensional sensitivity coefficients of apparent resistivity and preliminary application[J]. Seismology and Geology, 37(4): 1125-1135 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ201504015.htm
徐世浙. 1994.地球物理中的有限单元法[M].北京:科学出版社: 178-183. Xu S Z. 1994. FEM in Geophysics[M]. Beijing: Science Press: 178-183 (in Chinese).
闫睿, 朱石军, 胡乐银, 崔腾发. 2015.北京市延庆地震台地电阻率长程观测数据研究[J].地震工程学报, 37(3): 724-730, 771. http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ201503013.htm Yan R, Zhu S J, Hu L Y, Cui T F. 2015. Long-term observation data of geo-electrical resistivity at the Yanqing station, Beijing[J]. China Earthquake Engineering Journal, 37(3): 724-730, 771 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ201503013.htm
叶青, 杜学彬, 陈军营, 谭大诚, 马占虎. 2005. 2003年大姚和民乐—山丹地震1年尺度预测[J].地震研究, 28(3): 226-230. http://www.cnki.com.cn/Article/CJFDTOTAL-DZYJ200503003.htm Ye Q, Du X B, Chen J Y, Tan D C, Ma Z H. 2005. One-year prediction for the Dayao and Minle-Shandan earthquakes in 2003[J]. Journal of Seismological Research, 28(3): 226-230 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZYJ200503003.htm
张磊, 关华平, 田山, 庞群英, 马骥, 马君钊. 2010.地电阻率观测各类干扰源的分析与研究[J].地震地磁观测与研究, 31(2): 68-76. http://www.cnki.com.cn/Article/CJFDTOTAL-DZGJ201002012.htm Zhang L, Guan H P, Tian S, Pang Q Y, Ma J, Ma J Z. 2010. Research on the disturbance source of geo-resistivity observation[J]. Seismological and Geomagnetic Observation and Research, 31(2): 68-76 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZGJ201002012.htm
张学民. 2004.地电阻率的年变畸变异常分析[J].地震地磁观测与研究, 25(2): 68-74. http://www.cnki.com.cn/Article/CJFDTOTAL-DZGJ200402011.htm Zhang X M. 2004. Analysis on distortion anomalies in annual variation of earth resistivity[J]. Seismological and Geomagnetic Observation and Research, 25(2): 68-74 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZGJ200402011.htm
中国地震局. 2001.地震及前兆数字观测技术规范, 电磁观测:试行[M].北京:地震出版社: 19-30. China Earthquake Administration. 2001. Technical Specification for Digital Observation of Seismology and Precursor. Electromagnetic Observation (Trial Implementation)[M]. Beijing: Seismological Press. 19-30 (in Chinese).
Coggon J H. 1971. Electromagnetic and electrical modeling by the finite element method[J]. Geophysics, 36(1): 132-155. doi: 10.1190/1.1440151
Dey A, Morrison H F. 1979. Resistivity modeling for arbitrarily shaped three-dimensional structures[J]. Geophysics, 44(4): 753-780. doi: 10.1190/1.1440975
Huang Q H, Lin Y F. 2010. Selectivity of seismic electric signal (SES) of the 2000 Izu earthquake swarm: A 3D FEM numerical simulation model[J]. Proc Jpn Acad Ser B Phys Biol Sci, 86(3): 257-264. doi: 10.2183/pjab.86.257
Ida N, Bastos J P A. 1997. Electromagnetics and Calculation of Fields[M]. New York: Springer: 22-29.
Li Y G, Spitzer K. 2005. Finite element resistivity modelling for three-dimensional structures with arbitrary anisotropy[J]. Phys Earth Planet Inter, 150(1/2/3): 15-27. http://www.sciencedirect.com/science/article/pii/S0031920104003607
Lu J, Xue S Z, Qian F Y, Zhao Y L, Guan H P, Mao X J, Ruan A G, Yu S R, Xiao W J. 2004. Unexpected changes in resistivity monitoring for earthquakes of the Longmen Shan in Sichuan, China, with a fixed Schlumberger sounding array[J]. Phys Earth Plant Inter, 145(1/2/3/4): 87-97. http://www.sciencedirect.com/science/article/pii/S0031920104001621
Wu X P. 2003. A 3-D finite element algorithm for DC resistivity modeling using the shifted incomplete Cholesky conjugate gradient method[J]. Geophys J Int, 154: 947-956. doi: 10.1046/j.1365-246X.2003.02018.x
-
