Broadband ambient noise tomography in Yunnan Province
-
摘要: 选取云南省区域台网46个地震台从2007年11月—2009年10月的宽频带噪声数据， 通过互相关方法获得经验格林函数， 采用自适应时频分析方法获取相速度频散曲线， 并且反演得到8—40 s的相速度分布图. 研究结果表明： 云南地区短周期相速度低速异常与地表断裂带分布和沉积层厚度密切相关； 在短周期相速度分布图上， 红河断裂南北段呈现差异， 表明红河断裂南北段周边介质存在物性差异， 这可能是造成地震活动南北差异的主要原因； 长周期相速度分布图显示， 红河断裂和小江断裂带存在低速异常， 可能是切穿地壳的超壳断裂, 该低速异常可能与深部热作用有关; 红河断裂和小江断裂带交汇地区存在高速异常， 该高速异常体对川滇块体深部介质向南运动可能起到了阻挡的作用. 本文结果为下一步反演云南地区的三维剪切波速度结构奠定了基础.Abstract: In this paper, the Rayleigh wave empirical Green’s functions are retrieved from cross-correlation of the ambient noise data recorded by the 46 permanent stations of Yunnan Regional Seismic Network from November 2007 to October 2009. The regional phase velocities with periods from 8 s to 40 s are then inverted using the generalized Backus-Gilbert method. The results show that low-velocity anomalies at shorter periods associate with the faulting area and sedimentary basins. The difference between north and south across Honghe fault due to substantial variations at shorter period phase velocity maps coincides with distribution of earthquakes. As the period becomes longer, low-velocity anomalies around the Honghe fault and Xiaojiang fault are still visible, which suggests that they are probably correlated with the high heat flow from the deeper area and the faults have cut through the crust. The phase velocities at the junction of the Xiaojiang fault and Honghe fault exhibit high-velocity anomalies that maybe, to an extent, hinder the materials of Sichuan--Yunnan block moving towards the south. These phase velocity dispersion maps provide necessary information to construct a 3-D shear velocity model of the crust in Yunnan Province.
-
Keywords:
- ambient noise /
- phase velocity /
- surface wave tomography /
- crustal structure /
- Yunnan Province
-
-
![]()

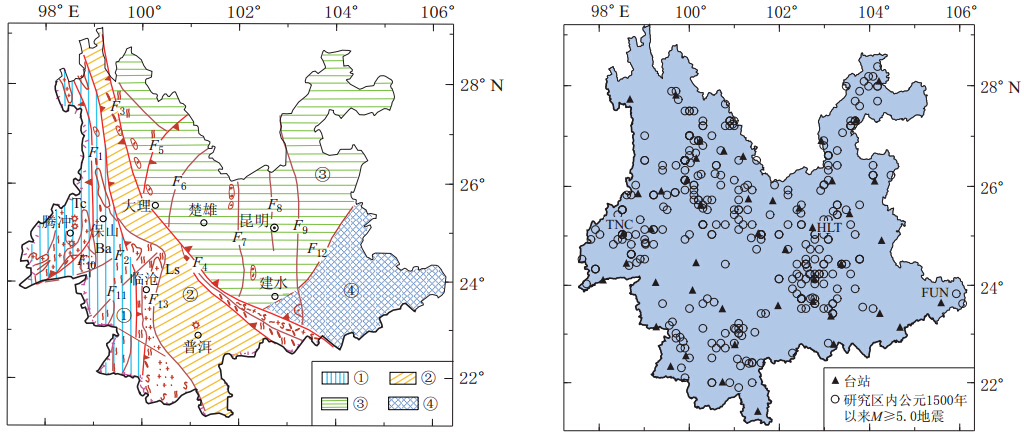

图 1 云南地区区域构造略图(阚荣举，韩源，1992)及台站和地震分布图
F1: 怒江断裂； F2: 北澜沧江—昌宁—双江断裂； F3: 金沙江断裂； F4: 红河断裂； F5: 剑川断裂；F6: 程海断裂； F7: 元谋—绿汁江断裂； F8: 普渡河断裂； F9: 小江断裂带； F10: 畹町断裂； F11: 南汀河断裂； F12: 弥勒断裂； F13: 南澜沧江断裂. ① 滇缅泰板块； ② 印支板块； ③ 扬子板块； ④ 华南亚板块. Tc： 腾冲块体； Ba： 保山块体； Ls： 兰坪—思茅弧后盆地
Figure 1. Regional tectonic map of Yunnan area(after Kan，Han，1992) as well as locations of stations and earthquakes
F1: Nujiang fault; F2: Northern Lancangjiang- -Changning- -Shuangjiang fault; F3: Jinshajiang fault; F4: Honghe fault; F5: Jianchuan fault; F6: Chenghai fault; F7: Yuanmou- -Lüzhijiang fault; F8: Puduhe fault; F9: Xiaojiang fault zone; F10: W and ing fault; F11: Nantinghe fault; F12: Mile fault; F13: Southern Lancangjiang fault. ① Yunnan- -Myanmar- -Thail and block; ② Indo-China block; ③ Yangtze block; ④ South China block. Tc： Tengchong block; Ba： Baoshan block; Ls： Lanping- -Simao back arc basin. The triangle in the right panel indicates the station and the circle indicates the earthquake M≥5.0 occurred since the year AD 1500
![]()
图 2 昆明台(HLT)与其余各台站路径上的经验格林函数
Figure 2. The empirical Green’s function between the station HLT and other stations
![]()
图 3 台站对FUN-TNC的经验格林函数(a)及群速度频散曲线测量示意图(b)(台站FUN和TNC的位置分布见图 1)
Figure 3. Example of the empirical Green’s functions and dispersion analysis of the station pair FUN-TNC(locations of stations FUN and TNC，see Fig. 1)(a)The empirical Green’s functions of station pair FUN-TNC;(b)Group velocity dispersion curve measurements
![]()

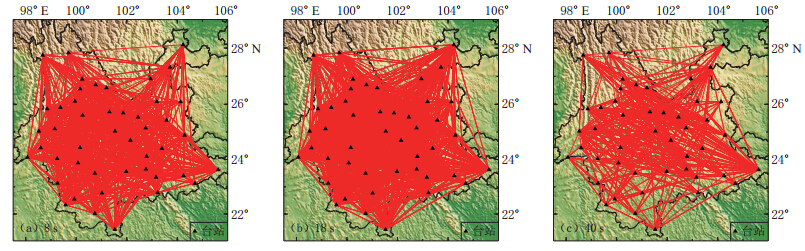

图 4 周期为8 s (a), 18 s (b)和40 s (c)的射线分布图
Figure 4. Path coverage of phase velocity measurements at periods of 8 s (a)， 18 s (b) and 40 s (c) where the triangle indicates the station， the same below
![]()

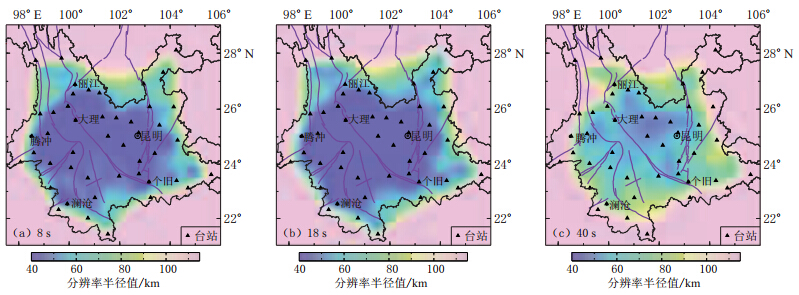

图 5 周期为8 s (a)， 18 s (b)和40 s (c)的相速度分辨率
Figure 5. Phase velocity resolution at periods of 8 s (a), 18 s (b) and 40 s (c)
![]()
图 6 周期为8 s (a)， 18 s (b)和40 s (c)的瑞雷波相速度分布图
Figure 6. The Rayleigh wave phase velocity maps at periods of 8 s (a), 18 s (b) and 40 s (c)
-
