Coseismic and contemporary deformation features of the MS7.8 Tangshan earthquake in 1976
-
摘要: 基于1976年唐山MS7.8地震的同震位移和现今GPS速度结果， 本文分析了该地震的同震破裂参数、 同震应变释放分布及其现今应变积累特征． 对唐山同震位移二维位错解析公式的拟合结果显示， 唐山地震前的断层闭锁深度约为18—23 km， 断层倾角可能介于74°—90°之间， 同震位错量约为3.1—3.4 m． 在同震过程中沿发震断层表现出显著的右旋错动特征， 在发震断层两侧沿NE向表现出左旋应变释放特征． 在本文现有的GPS测站密度和精度情况下， 尚无法识别出现今阶段沿唐山断裂的明显蠕滑特征． 唐山同震应变释放和现今GPS应变率积累结果均显示， 唐山断裂SE侧的剪切形变(速率)量值大于其NW侧， 同震与现今阶段的形变量值相差约1000倍．Abstract: This paper analyzed the coseismic rupture parameters, distribution of coseismic strain release and contemporary strain accumulation features based on coseismic displacements and GPS velocities in source area of the MS7.8 Tang-shan earthquake in 1976. The fitting results for the dislocation formula in two-dimensional model of coseismic displacements show that the locking depth of seismic fault is about 18—23 km before Tangshan earthquake, its dip angle is about 74°—90°, and the coseismic dislocation is about 3.1—3.4 m. During the coseismic process, right-lateral rupture occurred in the Tangshan fault zone, and the left-lateral strain released in NE direction at the bilateral sides of the coseismic fault. On the condition of the density and accuracy of GPS surveying presented in this paper, the creep signal cannot be distinguished at present. The coseismic strain release and contemporary GPS strain rate accumulation results illustrate that the shearing deformation (rate) magnitude in the SE side of the Tangshan fault zone is larger than that in the NW side, and the deformation values between the coseismic process and contemporary period differs 1000 times.
-
-
![]()

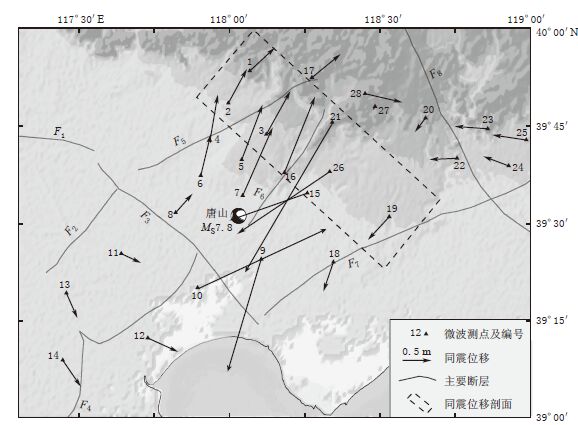

图 1 唐山地震水平同震位移场(位移数据黄立人,1981； 震源机制引自 Global CMT,2011)
F1： 宝坻断裂； F2： 藩庄西断裂； F3： 蓟运河断裂； F4： 海西断裂； F5： 丰台—野鸡坨断裂； F6： 唐山断裂； F7： 宁河—昌黎断裂； F8： 滦县—乐亭断裂. 断层名称下同
Figure 1. Horizontal coseismic displacement field of Tangshan earthquake,where the displacement data are taken from Huang(1981),and focal mechanisms come from Global Global CMT(2011)
F1： Baodi fault； F2： Fanzhuangxi fault； F3： Jiyunhe fault； F4： Haixi fault； F5： Fengtai--Yejituo fault； F6： Tangshan fault； F7： Ninghe--Changli fault； F8： Luanxian--Laoting fault The black triangle with number represents the microwave measuring point and its number,the black arrows represent coseismic displacement. The gray curves represent the principal faults,the same below,and the dashed frame represents the coseismic displacement profile
![]()

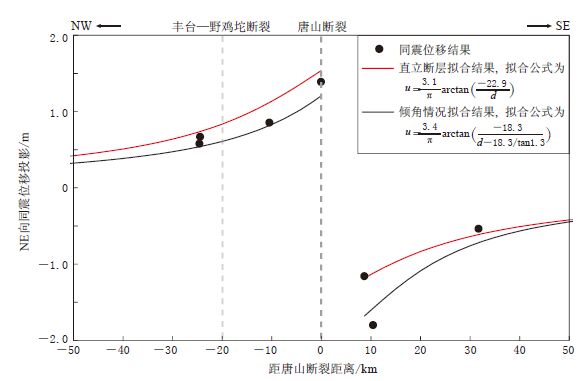

图 2 唐山地震水平同震位移投影结果(投影范围见图 1虚线框)
Figure 2. Projection of horizontal coseismic displacement of Tangshan earthquake (The projection range is the dashed frame shown in Fig. 1)
The black points represent coseismic displacement results,the gray curves represent the fitting results of vertical fault with Equ.(1),and the black curves represent the fitting results of the tilt fault with Equ.(2)
![]()

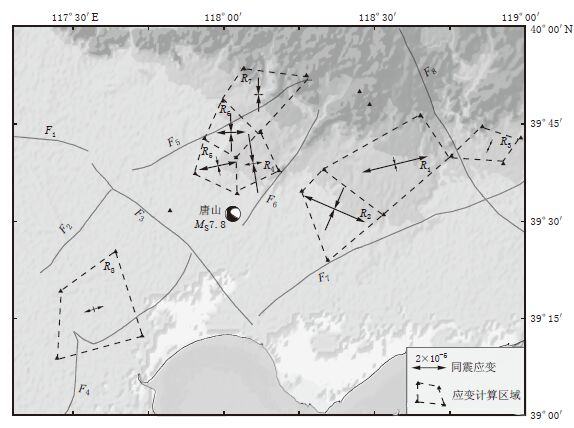

图 3 唐山地震同震应变场
Figure 3. Coseismic strain field of Tangshan earthquake
The areas enclosed by dashed lines represent the region for strain calculation,and the black double arrows represent coseismic strain
![]()

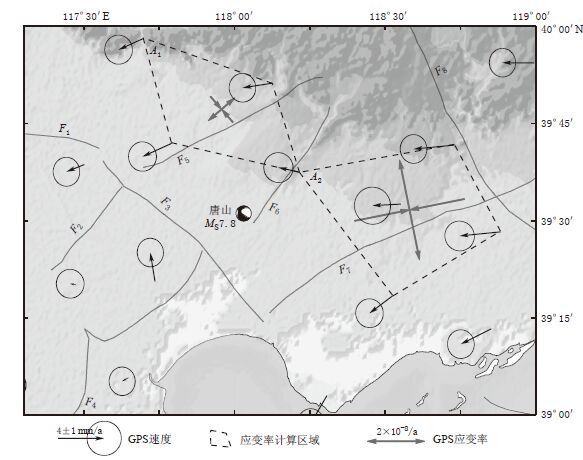

图 4 唐山地震震源区现今地壳形变分布图(GPS速度场采用中国大陆参考基准)
Figure 4. Contemporary crustal deformation distribution of the source area of Tangshan earthquake (The GPS velocity field are fixed to the reference of the Chinese mainland)
The arrow with circle represents GPS velocity,the areas enclosed by dashed lines represent the region for strain rate calculation,and the black double arrows represent GPS strain rate
表 1 唐山地震震源区同震应变释放与现今应变积累的对比
Table 1 Comparison of coseismic strain release with contemporary strain accumulation in the source area of Tangshan earthquake
应变积累和释放 唐山断裂NW侧区域 唐山断裂SE侧区域 主张应变/10-8 主压应变/10-8 主张应变方位角/° 主张应变/10-8 主压应变/10-8 主张应变方位角/° 同震应变 1662 -2142 80 3871 -2676 113 现今应变率 1.2 -1.2 49 3.5 -3.9 169
下载: 导出CSV
-
蔡永恩, 何涛, 王仁. 1999. 1976年唐山地震震源动力过程的数值模拟[J]. 地震学报, 21(5): 467-477. http://www.dzxb.org/Magazine/Show?id=27416 Cai Y E, He T, Wang R. 1999. Numerical simulation of epicenter dynamic process of Tangshan earthquake in 1976[J]. Acta Seismologica Sinica, 21(5): 467-477 (in Chinese). http://www.dzxb.org/Magazine/Show?id=27416
陈运泰, 林邦慧, 王新华, 黄立人, 刘妙龙. 1979. 用大地测量资料反演的1976年唐山地震的位错模式[J]. 地球物理学报, 22(3): 201-217. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX197903000.htm Chen Y T, Lin B H, Wang X H, Huang L R, Liu M L. 1979. A dislocation model of the Tangshan earthquake of 1976 from the inversion of geodetic data[J]. Acta Geophysica Sinica, 22(3): 201-217 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX197903000.htm
杜晨晓, 谢富仁, 张扬, 史保平. 2010. 1976年MS7.8唐山地震断层动态破裂及近断层强地面运动特征[J]. 地球物理学报, 53(2): 290-304. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200803021.htm Du C X, Xie F R, Zhang Y, Shi B P. 2010. 3D modeling of dynamic fault rupture and strong ground motion of the 1976 MS7.8 Tangshan earthquake[J]. Chinese Journal of Geophysics, 53(2): 290-304 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200803021.htm
国家地震局《一九七六年唐山地震》编辑组. 1982. 一九七六年唐山地震[M]. 北京: 地震出版社: 114. Editorial Group of The 1976 Tangshan Earthquake, State Seismological Bureau. The 1976 Tangshan Earthquake[M]. Beijing: Seismological Press: 114 (in Chinese).
虢顺民, 李志义, 程绍平, 陈献程, 陈孝德, 杨主恩, 李如成. 1977. 唐山地震区域构造背景和发震模式的讨论[J]. 地质科学, 12(4): 305-321. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKX197704000.htm Guo S M, Li Z Y, Cheng S P, Chen X C, Chen X D, Yang Z E, Li R C. 1977. Discussion on the regional structural background and the seismogenic model of the Tangshan earthquake[J]. Scientia Geologica Sinica, 12(4): 305-321 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZKX197704000.htm
黄立人. 1981. 用广义逆法分析唐山地震的水平位移场及其与经典方法的比较[J]. 地壳形变与地震, 1(3): 1-11. http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB198103000.htm Huang L R. 1981. The horizontal displacement field of Tangshan earthquake and its comparison with the classical method by using the generalized inverse method[J]. Crustal Deformation and Earthquake, 1(3): 1-11 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB198103000.htm
黄立人, 王学忠, 刘天奎. 1988. 唐山地震前后的水平形变[J]. 地震学报, 10(4): 375-384. http://www.dzxb.org/Magazine/Show?id=28224 Huang L R, Wang X Z, Liu T K. 1988. Horizontal deformation before and after the Tangshan earthquake of 1976[J]. Acta Seismologica Sinica, 10(4): 375-384 (in Chinese). http://www.dzxb.org/Magazine/Show?id=28224
刘桂萍, 傅征祥. 2000. 1976年7月28日唐山7.8级地震触发的区域地震活动和静应力场变化[J]. 地震学报, 22(1): 17-26. doi: 10.1007/s11589-000-0078-8 Liu G P, Fu Z X. 2000. Regional seismicity triggered by the MS=7.8 Tangshan event on July 28, 1976 and the static stress field change[J]. Acta Seismologica Sinica, 13(1): 19-28. doi: 10.1007/s11589-000-0078-8
刘启元, 王峻, 陈九辉, 李顺成, 郭飚. 2007. 1976年唐山大地震的孕震环境: 密集地震台阵观测得到的结果[J]. 地学前缘, 14(6): 205-213. doi: 10.1016/S1872-5791(08)60012-3 Liu Q Y, Wang J, Chen J H, Li S C, Guo B. 2007. Seismogenic tectonic environment of 1976 great Tangshan earthquake: Results given by dense seismic array observations[J]. Earth Science Frontiers, 14(6): 205-213 (in Chinese). doi: 10.1016/S1872-5791(08)60012-3
万永革, 沈正康, 刁桂苓, 王福昌, 胡新亮, 盛书中. 2008a. 利用小震分布和区域应力场确定大震断层面参数方法及其在唐山地震序列中的应用[J]. 地球物理学报, 51(3): 793-804. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200803021.htm Wan Y G, Shen Z K, Diao G L, Wang F C, Hu X L, Sheng S Z. 2008a. An algorithm of fault parameter determination using distribution of small earthquakes and parameters of regional stress field and its application to Tangshan earthquake sequence[J]. Chinese Journal of Geophysics, 51(3): 793-804 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200803021.htm
万永革, 沈正康, 曾跃华, 盛书中, 徐晓枫. 2008b. 唐山地震序列应力触发的粘弹性力学模型研究[J]. 地震学报, 30(6): 581-593. http://www.dzxb.org/Magazine/Show?id=27078 Wan Y G, Shen Z K, Zeng Y H, Sheng S Z, Xu X F. 2008b. Study on visco-elastic stress triggering model of the 1976 Tangshan earthquake sequence[J]. Acta Seismologica Sinica, 30(6): 581-593 (in Chinese). http://www.dzxb.org/Magazine/Show?id=27078
张郢珍. 1981. 唐山地震前地壳的异常隆起及无震蠕动[J]. 地震学报, 3(1): 11-22. http://www.dzxb.org/Magazine/Show?id=27869 Zhang Y Z. 1981. On the anomalous crustal bulge and aseismic creep prior to the 1976 Tangshan earthquake[J]. Acta Seismologica Sinica, 3(1): 11-22 (in Chinese). http://www.dzxb.org/Magazine/Show?id=27869
张之立, 李钦祖, 谷继成, 靳雅敏, 杨懋源, 刘万琴. 1980. 唐山地震的破裂过程及其力学分析[J]. 地震学报, 2(2): 111-129. http://www.dzxb.org/Magazine/Show?id=27860 Zhang Z L, Li Q Z, Gu J C, Jin Y M, Yang M Y, Liu W Q. 1980. The fracture processes of the Tangshan earthquake and its mechanical analysis[J]. Acta Seismologica Sinica, 2(2): 111-129 (in Chinese). http://www.dzxb.org/Magazine/Show?id=27860
张祖胜, 谢觉民, 徐峰壮, 彭苏崑. 1981. 唐山7.8级地震的地壳垂直形变[J]. 地球物理学报, 24(2): 182-191. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX198102006.htm Zhang Z S, Xie J M, Xu F Z, Peng S K. 1981. Vertical deformations associated with the 1976 Tangshan M=7.8 earthquake[J]. Acta Geophysica Sinica, 24(2): 182-191 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX198102006.htm
赵少荣. 1995. 利用大地测量资料反演的1976年唐山地震双断层位错模式[J]. 测绘学报, 24(4): 250-258. http://www.cnki.com.cn/Article/CJFDTOTAL-CHXB504.001.htm Zhao S R. 1995. A dislocation model of double faults for the Tangshan earthquake of 1976[J]. Acta Geodaetica et Cartographica Sinica, 24(4): 250-258 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-CHXB504.001.htm
邹镇宇, 江在森, 武艳强, 魏文薪, 刘晓霞, 张龙. 2015. 针对一般倾角的走滑/倾滑位移理论公式的改进[J]. 大地测量与地球动力学, 35(3): 460-463. http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB201503024.htm Zou Z Y, Jiang Z S, Wu Y Q, Wei W X, Liu X X, Zhang L. 2015. Improvements for the strike/dip-slip displacement theory formula of general dip fault[J]. Journal of Geodesy and Geodynamics, 35(3): 460-463 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB201503024.htm
Butler R, Stewart G S, Kanamori H. 1979. The July 27, 1976 Tangshan, China earthquake: A complex sequence of intraplate events[J]. Bull Seismol Soc Am, 69(1): 207-220. http://cn.bing.com/academic/profile?id=1950929458&encoded=0&v=paper_preview&mkt=zh-cn
Dong D, Herring T A, King R W. 1998. Estimating regional deformation from a combination of space and terrestrial geodetic data[J]. J Geod, 72(4): 200-214. doi: 10.1007/s001900050161
Global CMT. 2011. Global CMT Catalog[EB/OL]. [2016-04-15]. http://www.globalcmt.org/cgi-bin/globalcmt-cgi-bin/CMT4/form?itype=ymd&yr=1976&mo=7&day=27&otype=ymd&oyr=1976&omo=7&oday=27&jyr=1976&jday=1&ojyr=1976&ojday=1&nday=1&lmw=0&umw=10&lms=0&ums=10&lmb=0&umb=10&llat=-90&ulat=90&llon=-180&ulon=180&lhd=0&uhd=1000<s=-9999&uts=9999&lpe1=0&upe1=90&lpe2=0&upe2=90&list=0.
Herring T A, King R W, McClusky S C. 2010a. GAMIT reference manual: GPS analysis at MIT[EB/OL]. [2010-10-11]. http://www-gpsg.mit.edu/~simon/gtgk/GAMIT_Ref.pdf.
Herring T A, King R W, McClusky S C. 2010b. GLOBK reference manual: Global Kalman filter VLBI and GPS analysis program[EB/OL]. [2010-10-11]. http://www-gpsg.mit.edu/~simon/gtgk/GLOBK_Ref.pdf.
Meade B J, Hager B H. 2005. Block models of crustal motion in southern California constrained by GPS measurements[J]. J Geophys Res, 110(B3): B03403.
Nábělek J, Chen W P, Ye H. 1987. The Tangshan earthquake sequence and its implications for the evolution of the North China basin[J]. J Geophys Res, 92(B12): 12615-12628. doi: 10.1029/JB092iB12p12615
Robinson R, Zhou S Y. 2005. Stress interactions within the Tangshan, China, earthquake sequence of 1976[J]. Bull Seismol Soc Am, 95(6): 2501-2505. doi: 10.1785/0120050091
Segall P. 2010. Earthquake and Volcano Deformation[M]. Princeton: Princeton University Press: 39.
Wu Y Q, Jiang Z S, Zhao J, Liu X X, Wei W X, Liu Q, Li Q, Zou Z Y, Zhang L. 2015. Crustal deformation before the 2008 Wenchuan MS8.0 earthquake studied using GPS data[J]. J Geodyn, 85: 11-23. doi: 10.1016/j.jog.2014.12.002
-
