Data rapid integration of mobile seismic array
-
摘要: 阐述了流动地震观测台阵数据快速整合处理的必要性和重要性， 分析了不同地震数据格式及相应的应用软件的优点. 在此基础上介绍了在 .NET框架平台上用C#语言编写的流动地震观测台阵数据快速整合程序及其对流动地震观测台阵数据整合处理的原理和流程， 并通过对2011年11月2日岷县MS4.5地震数据的快速分析展示了该程序的有效性.Abstract: This paper discusses the necessity and importance of data rapid integration of mobile seismic array, and analyzes the advantages of different seismic data formats and their applications. On this basis, a program with C# in .NET Framework for rapid integration data of mobile seismic array is introduced, realizing data auto-search and data format conversion. Meanwhile, the principle and process are also given. Finally, its validity is displayed by analyzing the data from the Minxian MS4.5 earthquake occurred on 2 November 2011.
-
Keywords:
- mobile seismic observation /
- data format conversion /
- C# programming
-
-
![]()

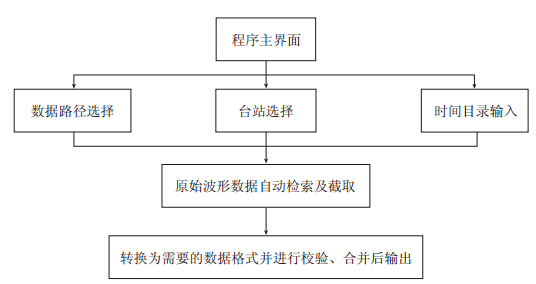

图 1 流动地震观测台阵数据快速整合程序的结构图
Figure 1. Architecture of the program for rapid integration data of mobile seismic array
![]()

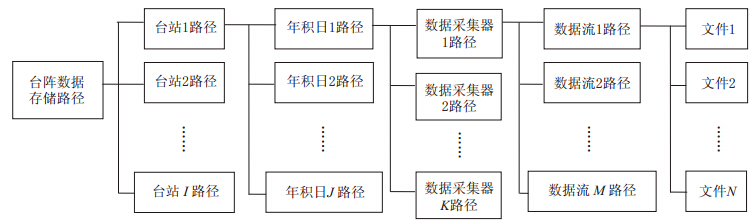

图 4 REFTEK-130数据采集器波形文件的存储方式
Figure 4. Storage mode of waveform files from REFTEK-130 data collector
![]()

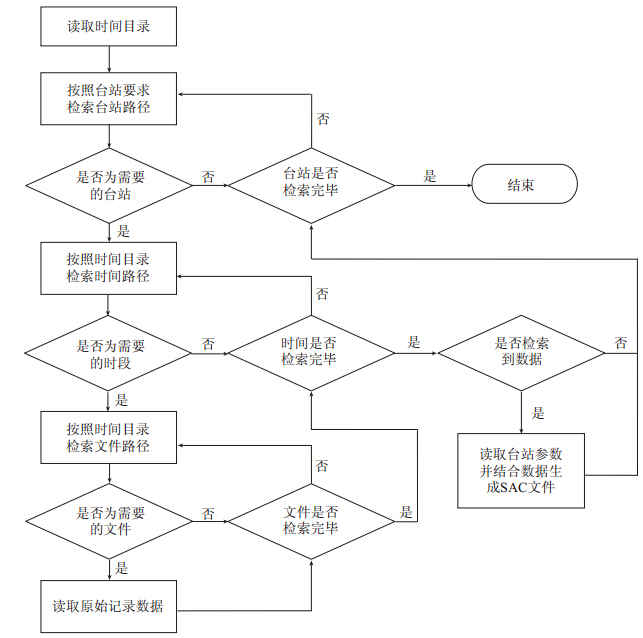

图 5 根据时间目录将原始数据转换为SAC格式波形文件的流程图
Figure 5. Flow chart of converting raw data to SAC files according to the time catalog
-
高见, 张元生, 郭彪, 刘旭宙. 2013. 甘东南流动台阵微震监测结果[J]. 地震工程学报, 35(1): 177-182. Gao J, Zhang Y S, Guo B, Liu X Z. 2013. Microearthquake location determined by portable seismic array data in southeast Gansu Province[J]. China Earthquake Engineering Journal, 35(1): 177-182 (in Chinese).
何加勇, 吴建平, 王未来. 2010. 中国地震科学探测台阵数据服务系统[J]. 地震学报, 32(4): 490-494. He J Y, Wu J P, Wang W L. 2010. Data service system for China Seismic Array[J]. Acta Seismologica Sinica, 32(4): 490-494 (in Chinese).
黄金莉, 顾小虹. 2001. 国家数字地震台网中心应用地震波形数据格式及转换[J]. 地震, 21(4): 60-65. Huang J L, Gu X H. 2001. Data format and conversion of seismic waveform used in National Center of Digital Seismic Network[J]. Earthquake, 21(4): 60-65 (in Chinese).
李秋生, 王林飞, 贺日政. 2004. 基于GIS平台的宽频带地震数据库[J]. 吉林大学学报: 地球科学版, 34(3): 471-475. Li Q S, Wang L F, He R Z. 2004. A database of broadband seismic survey based on ArcView GIS[J]. Journal of Jilin University: Earth Science Edition, 34(3): 471-475 (in Chinese).
刘胜国, 贾庆华. 2004. 首都圈遥测地震台网所采用的SEED格式及ASCII码格式的转换程序[J]. 华北地震科学, 22(1): 27-30. Liu S G, Jia Q H. 2004. The SEED format used in telemetered seismic network of Capital Area and the transform program for ASCII code[J]. North China Earthquake Sciences, 22(1): 27-30 (in Chinese).
王秀娟, 和跃时, 武利华. 2001. SEED格式地震数据的快速转换软件[J]. 地震地磁观测与研究, 22(5): 42-47. Wang X J, He Y S, Wu L H. 2001. A software of fast convert SEED format data in CDSN station[J]. Seismological and Geomagnetic Observation and Research, 22(5): 42-47 (in Chinese).
王秀文, 姚立平, 赖德伦, 牟其铎. 1994. 地震数据交换标准[J]. 地震地磁观测与研究, 15(2): 1-42. Wang X W, Yao L P, Lai D L, Mu Q D. 1994. Standard for the exchange of earthquake data[J]. Seismological and Geomagnetic Observation and Research, 15(2): 1-42 (in Chinese).
吴明恕, 刘治, 陈九辉. 2009. 基于SeisComP大型地震台阵的数据管理[J]. 地震地质, 31(2): 341-348. Wu M S, Liu Z, Chen J H. 2009. The data management of large-scale seismic array based on SeisComP[J]. Seismology and Geology, 31(2): 341-348 (in Chinese).
中国地震局监测预报司. 2003. 数字地震观测技术[M]. 北京: 地震出版社: 368-389. Department of Monitoring and Prediction, China Earthquake Administration. 2003. Digital Observation Technology of Earthquake[M]. Beijing: Seismological Press: 368-389 (in Chinese).
