韩光洁,邓文泽,杨志高. 2023. 利用P波质点运动估算中国东北地区固定台站地震计方位角. 地震学报,45(6):1−12. doi: 10.11939/jass.20220133
引用本文: 韩光洁,邓文泽,杨志高. 2023. 利用P波质点运动估算中国东北地区固定台站地震计方位角. 地震学报,45(6):1−12. doi: 10.11939/jass.20220133
Han G J,Deng W Z,Yang Z G. 2023. Component azimuths of the permanent seismic stations in the Northeast China estimated from P-wave particle motion. Acta Seismologica Sinica45(6):1−12. doi: 10.11939/jass.20220133
Citation: Han G J,Deng W Z,Yang Z G. 2023. Component azimuths of the permanent seismic stations in the Northeast China estimated from P-wave particle motion. Acta Seismologica Sinica45(6):1−12. doi: 10.11939/jass.20220133

利用P波质点运动估算中国东北地区固定台站地震计方位角

Component azimuths of the permanent seismic stations in the Northeast China estimated from P-wave particle motion

  • 摘要: 本文基于东北地区154个固定台站2020年的远震数据,利用P波质点运动方法,估算了每个台站的北向分量方位角,以判断台站地震计是否存在方位角偏转问题。结果表明,84%的台站运行良好,12%的台站存在方位角偏差过大(>±20°)或分量极性反转等问题。此外,我们发现方位角偏转较大会导致H-κ叠加方法计算得到的地壳厚度和地震波速比出现偏差,因此,为保证地震学分析的可靠性,固定台站的地震计方位角需要进行定期校标。

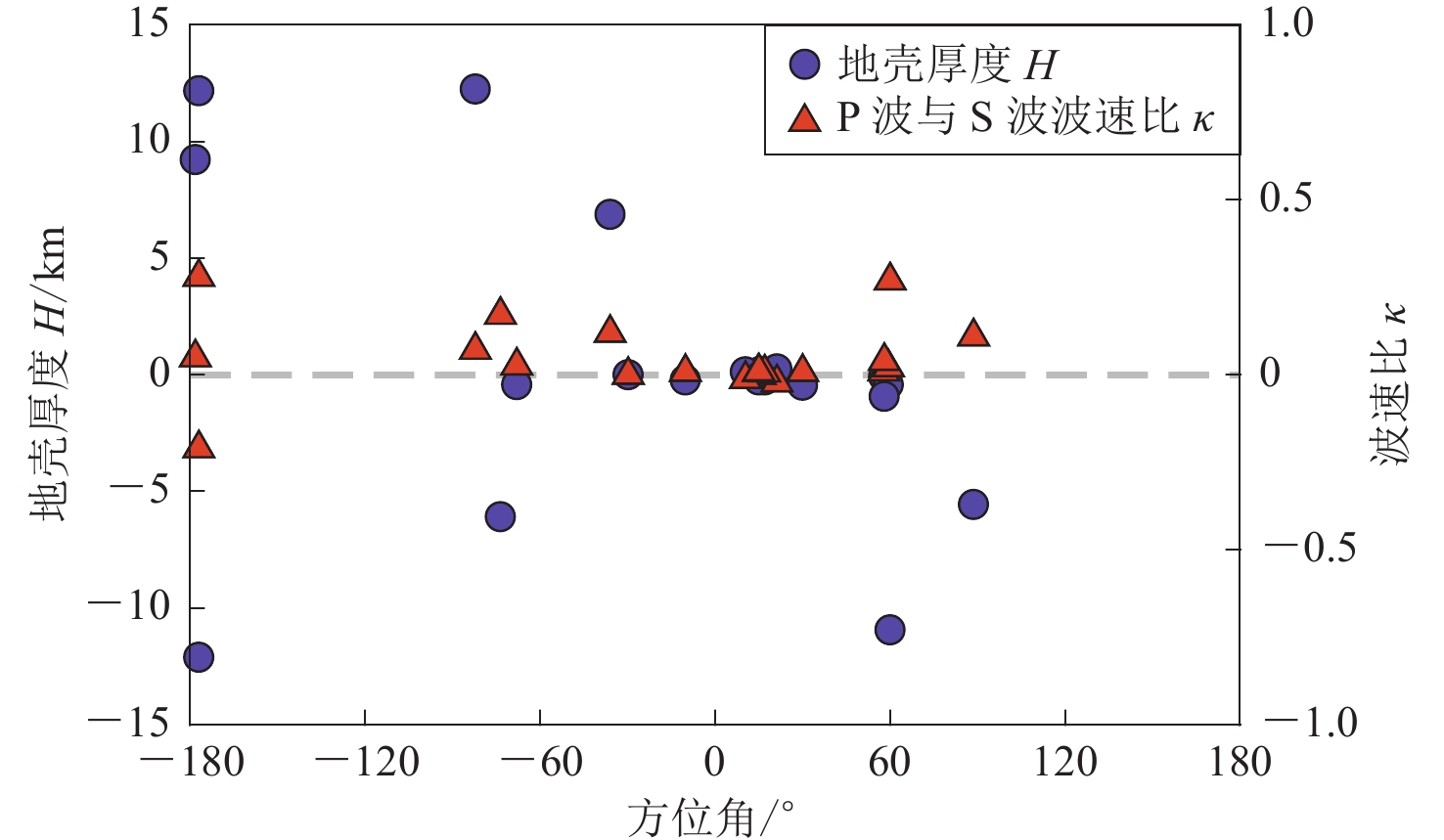

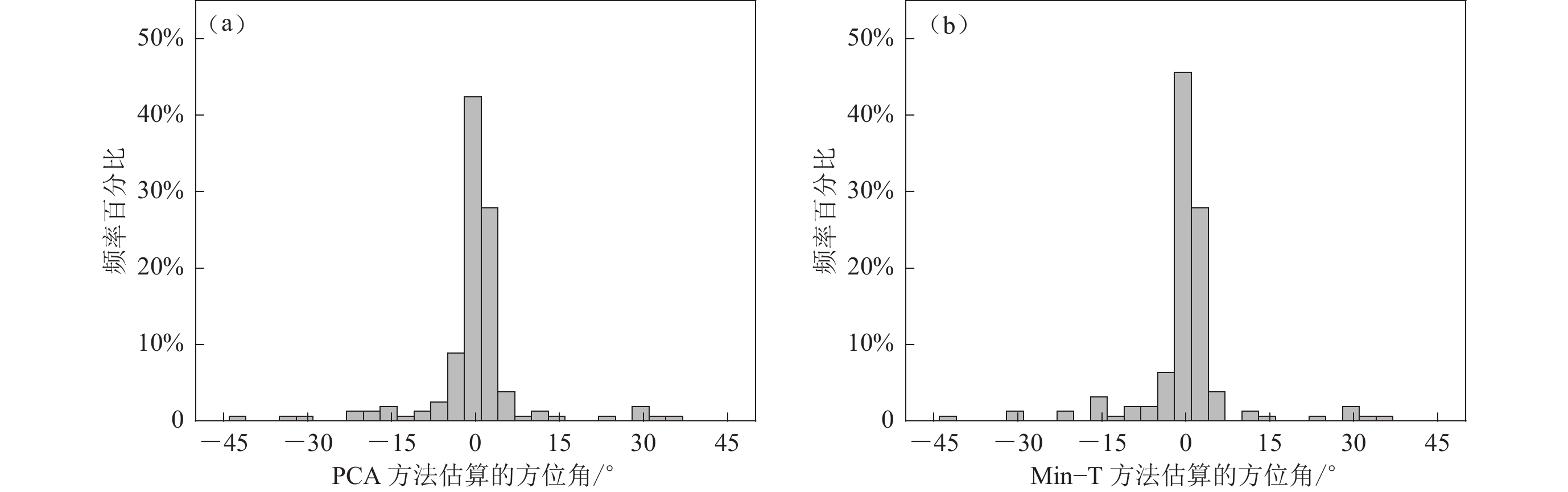

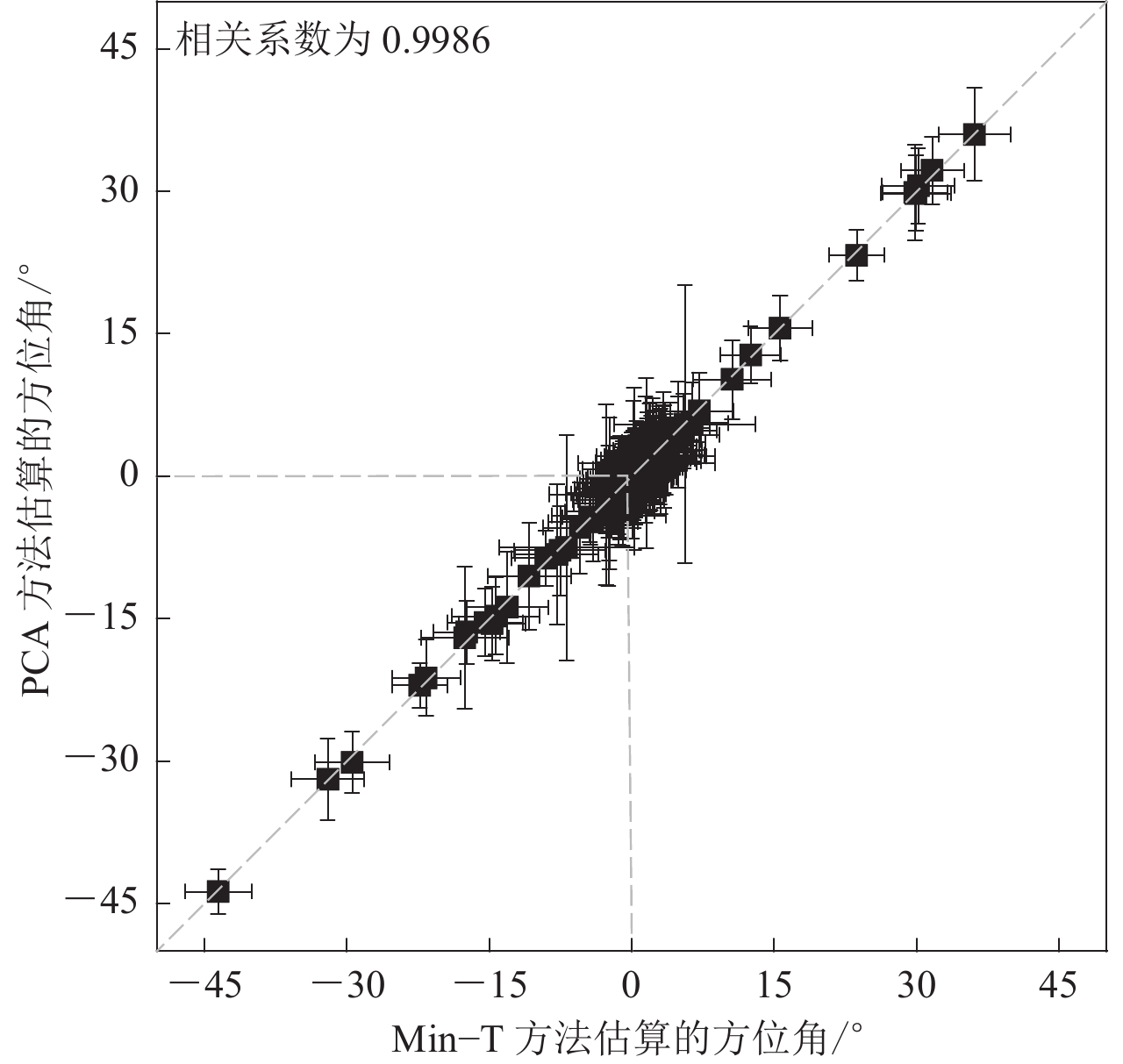

    Abstract: Modern seismic studies rely on reliable three-component seismological observations, whether the station sensor’s north component strictly aligns to the geographical north will directly affect the accuracy of the research. However, this parameter is easily subjected to error imposed by magnetic anomalies near the station or by human error. In this study, the component azimuths of 154 permanent seismic stations in Northeast China were rechecked using the P-wave particle motions of 2020 teleseismic events, and we used the same seismic events to calculate the component azimuth by the principal component analysis and the signal-to-noise-weighted-multievent method, respectively. The misorientations determined by these two methods are very consistent, with a correlation coefficient of 0.9986. Among the 154 stations, 84% of the stations deviate slightly from the true north, and some of the stations have some sort of problems, including misorientation of the two horizontal components (>±20°) or polarity reversal in one or more components. We found a large deviation in sensor orientation could result in H-κ searching becoming unstable and even incorrect estimating of both crustal thickness and Vp/Vs ratio. Therefore, the orientation of the stations needs to be checked and corrected periodically.



/
